Saunatec Patio 4 x 6 Owner's Manual page 9

Electrical Installation

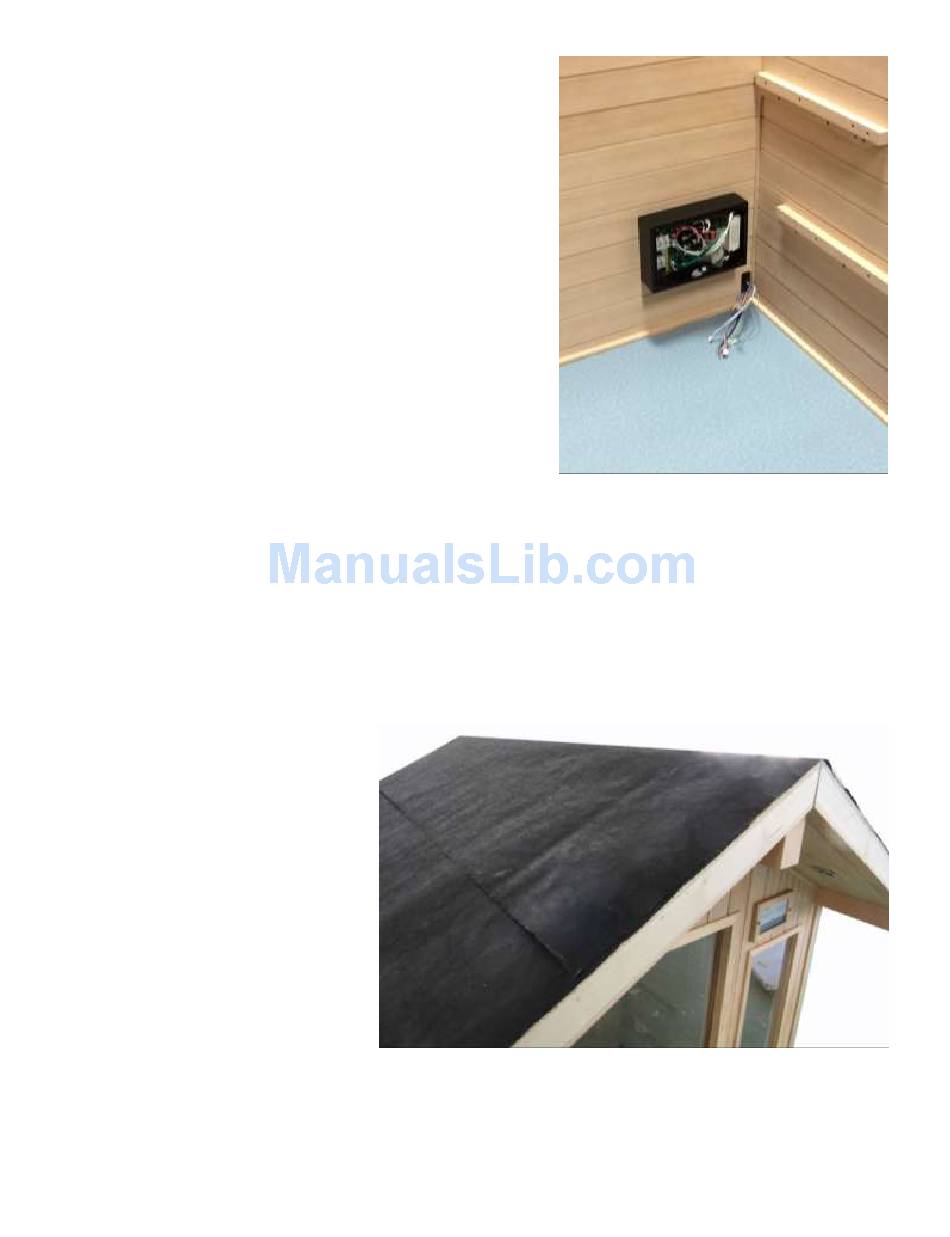

16. Mount the CB PK -1 box on back wall. Location is
designed by a small trim on wall.
17. Refer to the Installation and Operation Manual
provided with the sauna heater for detailed
information about wire connections.
18. Connect the low voltage cables from the wall into the
CB PK-1 box.
19. Installation of power wire cord into the room. Drill a
hole in the back wall to the left of the wires coming
out of the back wall.
Note: Be sure to be below the contactor box location and
away from the low voltage cables.
20. Install heater according to the Installation and
Operation Manual provided with the heater.
21. Power up the CB PK-1 box and test all lighting and sensors.
Note: Electrical access will be greatly reduced after the roofing is installed on room. Please ensure all
connections are good!
Roofing Installation
22. Install the roofing felt on the ceiling to prevent moisture on the wood. Put first sheet on at the lower
part of each ceiling panel. Overlap the paper over the peak and over each side piece to ensure
moisture does not get under the paper.
23. Secure it with staples or
two-face tape.
710-0131
Rev. 02
Page 9 of 16 05/05/15
