Note: Room must be installed on flat, level surface.
710-0125 IG-820-SH / S820-H 2 Person IR Sauna
Ver. 2

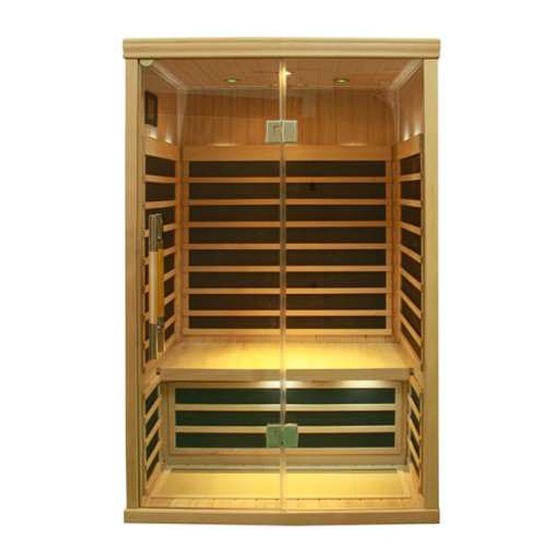

2 Person Infrared Sauna
IG-820-SH/S820
User Manual
This Product is covered by:
US Patents No. 8,692,168
Canadian Patents No. 2,729,500
and other Patents Pending.
Precautions Before Use
Preassembly Information
Electrical Requirements
Sauna Assembly
Electrical Connection-Under Bench
Electrical Connection-Inside Ceiling
Control Panel Instructions
Lighting Operation
Audio System
How to Use Sauna
Tips & Troubleshooting
Wiring Diagram
Warranty
S-Series
2,794,059 & 2,813,340
Page 1
2
2
3
4
8
13
16
17
17
19
20
21
22
11/3/14
Rev. 2
Advertisement
Related Manuals for Saunatec IG 810SH
Summary of Contents for Saunatec IG 810SH
- Page 1 S-Series 2 Person Infrared Sauna IG-820-SH/S820 User Manual This Product is covered by: US Patents No. 8,692,168 Canadian Patents No. 2,729,500 2,794,059 & 2,813,340 and other Patents Pending. Note: Room must be installed on flat, level surface. Precautions Before Use Preassembly Information Electrical Requirements Sauna Assembly...
-
Page 2: Precautions Before Use
Precautions before Use: Warning (Room Configuration & Use): Proper Electrical Grounding is Required Electrical Receptacles not Allowed in the Room Do not Apply Water to any Heating Element Do not Add a Locking or Latching System to the Door ... - Page 3 A 120 Volt AC (dedicated) circuit is recommended to avoid unnecessary tripping of the breaker. The Sauna should be plugged into a NEMA (5-15R or 5-20R) Amp electrical outlet. 5-15R 5-20R IG 810SH 15 Amp IG 820SH 15 Amp IG 825SH...
- Page 4 Sauna Assembly Instructions _________________________________________________________________________ Floor Panel (Box #1): Locate the Floor Panel on a level surface (3-6) inches from wall and no more than (5 ft) from 120 Volt AC / 15 amp dedicated receptacle. Position the Floor panel so that the Ceramic tiles / IR Floor Heaters are to the front of the room Note: place the Ceiling, Bench Skirt and Bench to the side until the appropriate steps.
- Page 5 Back Wall (Box #3): Note: after opening the box 3 -- store Front Wall panel until that step of the assembly process. sure to control the door from opening when moving the Front Wall Panel to prevent breakage. Place Back Wall panel into the back slot of the Floor Panel. ...
- Page 6 Right Wall (Box #2): Place Right Wall section into the right slot of the Floor Panel Attach Back Wall to the Right Wall by lifting up the Right wall sliding into the corner interlock brackets. Left Wall (Box #2): ...
- Page 7 Bench Skirt (Box #1): Insert the Bench Skirt in between the Right Wall and the Left Wall panels tracks. Slide Bench Skirt all the way to the floor. Do not pinch any wires under the skirt. Latch the buckles securing the floor to the Bench Skirt. Do not latch the buckles for the left and right wall panel at this time.
- Page 8 Electrical Connections (under bench - right side): Connect wire #4 from distribution plate to #4 from Back Wall harness. Connect wire #5 from the distribution plate to #5 from the Back Wall harness. Connect wire R1 from the distribution plate to R1 from the Right Wall junction box. ...
- Page 9 Electrical Connections (under bench - left side): Connect wire L1 from the distribution plate to L1 from the Left Wall panel. Connect wire B1 from the distribution plate to B1 from the Back Wall panel. View of the finished connections. ...
- Page 10 Use the buckles to latch the skirt to the left and right side walls. Bench top can now be fit into place. Bench must tuck under the back heater guard and then push all the way to the back wall. ...
- Page 11 Front Wall (Box #2): Place the Front Wall panel into the Floor panel slot. Lock Front Wall panel into place by slightly lifting it higher than the Right & Left Wall panels and pushing inward as lowering the Front Wall panel. Note: Secure the door from falling open and breaking while setting the Front Wall panel.
- Page 12 Ceiling (Box #1): Install 4 large Styrofoam packing squares on top of the Right & Left Wall panels. One block should be placed in the front portion and one toward the rear portion of each wall. These will be used to set the ceiling on. ...
- Page 13 Lower the Ceiling panel by removing the rear Styrofoam blocks first and then the front blocks. Be sure not to pinch any wires under the Ceiling panel. Turn the wood ceiling cam locks to lock the ceiling into place. Electrical Connections (inside the Ceiling panel-back right corner): ...
- Page 14 Electrical Connections (inside Ceiling-Left front corner): Near the Touch Screen harness in Ceiling connect Left Wall wire #3 to Ceiling wire #3. Connect Left Wall wire #7 to the Ceiling wire #7. Connect Left Wall wire F to Ceiling wire F. ...
- Page 15 Deluxe Door Handles: Your sauna comes equipped with a deluxe door handle. Locate brown box (typically in the floor/ceiling carton) Step 1. Separate two pieces by loosening four set screws with Allen wrench provided. Step 2. Remove bolts and spacer from first handle piece. You will need a Phillips Screw driver.
- Page 16 The Sauna Rooms is now ready to use! ------------------------------------------------------------------------------------------------------------------------------------------------ Control Panel Instructions: Power Delay Actual Timer Timer Button Temperature Temperature Audio Valance/ Color Floor Bench Bench On/Off Reading Therapy Skirt Heat Heat Lights On/Off On/Off On/Off On/Off Main Power: Press POWER button in the upper middle portion of the screen. When lit red, control is ON. When white, control is OFF.
- Page 17 Light Functions: 1. Press “Valance/Reading button” to turn ON or OFF 2. Note: “Outside Light” ON or OFF will not be functional on “S” series models. Color Therapy Functions: Press “Color Therapy Light” to activate a color light or sequence. The following details this sequence: press –...
- Page 18 “Mode” allows you to switch between the FM radio and other audio devices that may be plugged in to the controller. “Band” Changes the selection of radio channels. To search for only close range high signal local stations, choose LV H, mid-range LV M and long range LV L. Searching for radio stations or advancing audio files can be done with the arrows in the lower right hand corner of the screen.
- Page 19 How to Use Infrared Sauna: Avoid eating large meals and excessive alcohol intake before using Sauna. Never smoke or drink alcohol or exercise inside of Sauna. If you are taking any medications or under the care of a Physician, consult with them prior to Sauna usage. Refer to Sauna Usage Warning signs located inside of Sauna Room Prior to Sauna session, if possible before using Sauna, take a warm shower without drying.
-
Page 20: Troubleshooting Tips
Ensure the floor is flat by using a level on the ceiling of the room. It may be necessary to use a small door or window shim to adjust the level under the floor. ------------------------------------------------------------------------------------------- For additional assistance or service questions? Please do not hesitate contacting Saunatec/TyloHelo Mon – Fri. 8AM – 5PM CST 1-888-780-4427 techsupport@tyloheloinc.com... - Page 21 710-0125 IG-820-SH / S820-H 2 Person IR Sauna Page 21 11/3/14 Ver. 2 Rev. 2...
- Page 22 710-0125 IG-820-SH / S820-H 2 Person IR Sauna Page 22 11/3/14 Ver. 2 Rev. 2...
