Precautions Before Use
Preassembly Information
Electrical Requirements
Sauna Assembly
Electrical Connection-Under Bench
Electrical Connection-Inside Ceiling
Control Panel Instructions
Lighting Operation
Audio System
Wi-Fi Pairing Information
How to Use Sauna
Tips & Troubleshooting
Warranty
71-0159
Rev. 01

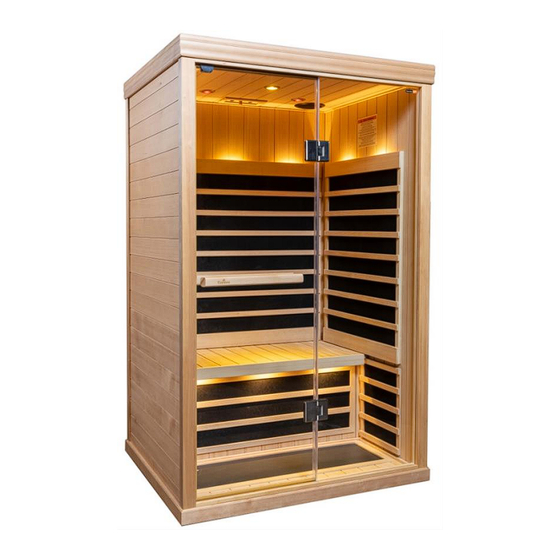

S4-Series
Infrared Sauna
IL2 and Bluetooth
S810 & S820 User Manual
This Product is covered by:
US Patents No. 8,692,168
Canadian Patents No. 2,729,500
2,794,059 & 2,813,340
and other Patents Pending.
Page 1
2
2
3
4
6
10
13
14
14
15
16
17
18
12/18/2020
R. D.
Advertisement
Related Manuals for Saunatec S4 Series
Summary of Contents for Saunatec S4 Series
- Page 1 S4-Series Infrared Sauna IL2 and Bluetooth S810 & S820 User Manual This Product is covered by: US Patents No. 8,692,168 Canadian Patents No. 2,729,500 2,794,059 & 2,813,340 and other Patents Pending. Precautions Before Use Preassembly Information Electrical Requirements Sauna Assembly Electrical Connection-Under Bench Electrical Connection-Inside Ceiling Control Panel Instructions...
-
Page 2: Pre-Assembly Information
Precautions before Use: Warning (Room Configuration & Use): • Proper Electrical Grounding is Required • Electrical Receptacles not Allowed in the Room • Do not Apply Water to any Heating Element • Do not Add a Locking or Latching System to the Door •... - Page 3 Electrical Requirements: The IR Sauna Room is designed for a 120 Volt AC / 15 or 20 Amp Circuit Breaker! A 120 Volt AC (dedicated) circuit is recommended to avoid unnecessary tripping of the breaker. The Sauna should be plugged into a NEMA (5-15R or 5-20R) Amp electrical outlet.
- Page 4 Sauna Assembly Instructions Floor Panel (Box #1): • Locate the Floor Panel on a level surface (3-6) inches from wall and no more than (5 ft) from 120 Volt AC / 15-amp dedicated receptacle. • Position the Floor panel so that the Ceramic tiles / IR Floor Heaters are to the front of the room Note: place the Ceiling, Bench Skirt and Bench to the side until the appropriate steps.
- Page 5 Right Wall (Box #2): • Place Right Wall section into the right slot of the Floor Panel • Attach Back Wall to the Right Wall by lifting up the Right Wall sliding into the corner interlock brackets. Left Wall (Box #2): •...
- Page 6 Bench Skirt (Box #1): • Insert the Bench Skirt in between the Right Wall and the Left Wall panels tracks. • Slide Bench Skirt all the way to the floor. Do not pinch any wires under the skirt. • Latch the buckles securing the floor to the Bench Skirt. Do not latch the buckles for the left and right wall panel at this time.
- Page 7 • Connect wire S3 from the distribution plate to S3 from the Bench Skirt. • Connect wire #6 from the Back Wall harness to the Bench Top wire #6. • Connect wire S1 from the distribution plate to the Bench Top wire S1. Electrical Connections (under bench - left side): •...
- Page 8 • View of the finished connections. • Locate the electrical switch on the black Master Control Box and ensure the switch is on. • Use the buckles to latch the skirt to the walls. 71-0159 Page 8 12/18/2020 Rev. 01 R.
- Page 9 • Bench top can now be fit into place. Bench must tuck under the back-heater guard and then push all the way to the back wall. • The Bench Top should fit down flush from front to back. It may be necessary to use the openings on the bench skirt to apply pressure either forward or rearward on the skirt to allow bench to drop into place.
- Page 10 Ceiling (Box #1): • Place the Ceiling panel with the speakers towards the back of the room. • Prop the ceiling up with the cam locks. • Once the Ceiling panel is lined up directly above the Wall panels; insert the wires harnesses from the wall panels into the holes in the Ceiling panel.
- Page 11 • Lower the Ceiling panel. Be sure not to pinch any wires under the Ceiling panel. • Turn the wood ceiling cam locks to lock the ceiling into place. Electrical Connections (inside the Ceiling panel-back right corner): • Open all hatch doors on the ceiling to locate the necessary electrical plugs. •...
- Page 12 Electrical Connections (inside Ceiling-Left front corner): • Near the Touch Screen harness in Ceiling connect Left Wall wire #3 to Ceiling wire #3. • Connect Left Wall wire #7 to the Ceiling wire #7. • Connect Left Wall wire F to Ceiling wire F. •...
- Page 13 Control Panel Instructions: Power ON or OFF Set/View Time Set/View Temperature Bench Skirt Heat Interior/Color Therapy Lights Bench Top Heat Floor Heat Main Power: Press POWER to switch room ON or OFF Timer Functions: Press the Set/View Time icon to adjust or view sauna duration. Press and hold “+” or “-” to set room operating time.
- Page 14 Interior/Color Therapy Lights: Press Interior/Color Therapy Lights to turn the lights on. Press the button to cycle through color options. Note: at any point the lights can be turned off by long pressing Interior/Color Therapy Lights for 3 seconds. 1st press – White 2nd press –...
- Page 15 IL2 Control is Wi-Fi Compatible: • Download the SaunaLogic App and install onto your smart phone or tablet by scanning the QR Code below or searching for “SaunaLogic” in the appropriate app store. (Note) The IL2 Control is completely compatible with the “SaunaLogic” App. •...
- Page 16 How to Use Infrared Sauna: • Avoid eating large meals and excessive alcohol intake before using Sauna. • Never smoke or drink alcohol or exercise inside of Sauna. • If you are taking any medications or under the care of a Physician, consult with them prior to Sauna usage.
-
Page 17: Troubleshooting Tips
Maintenance / General Cleaning Tips: DO NOT USE: Alcohol or any strong Cleaning Chemicals Note: Some chemicals can damage clear finish and wood surfaces. • Interior: Perspiration and dirt may absorb into the wood, so periodic cleaning is needed, scrubbing benches, back supports, floorboards and walls with a stiff brush and mild detergent is normally sufficient. - Page 18 71-0159 Page 18 12/18/2020 Rev. 01 R. D.
