Saunatec Patio 4 x 6 Owner's Manual page 3

ROOM ASSEMBLY

Each panel is heavy. Be careful to avoid injury when installing, especially the top panel.

Two adults are required for the installation of sauna room.

There is a pin or a slot on the sides of each panel, which will be installed correspondently with
one pin to one slot in the following way when installing:

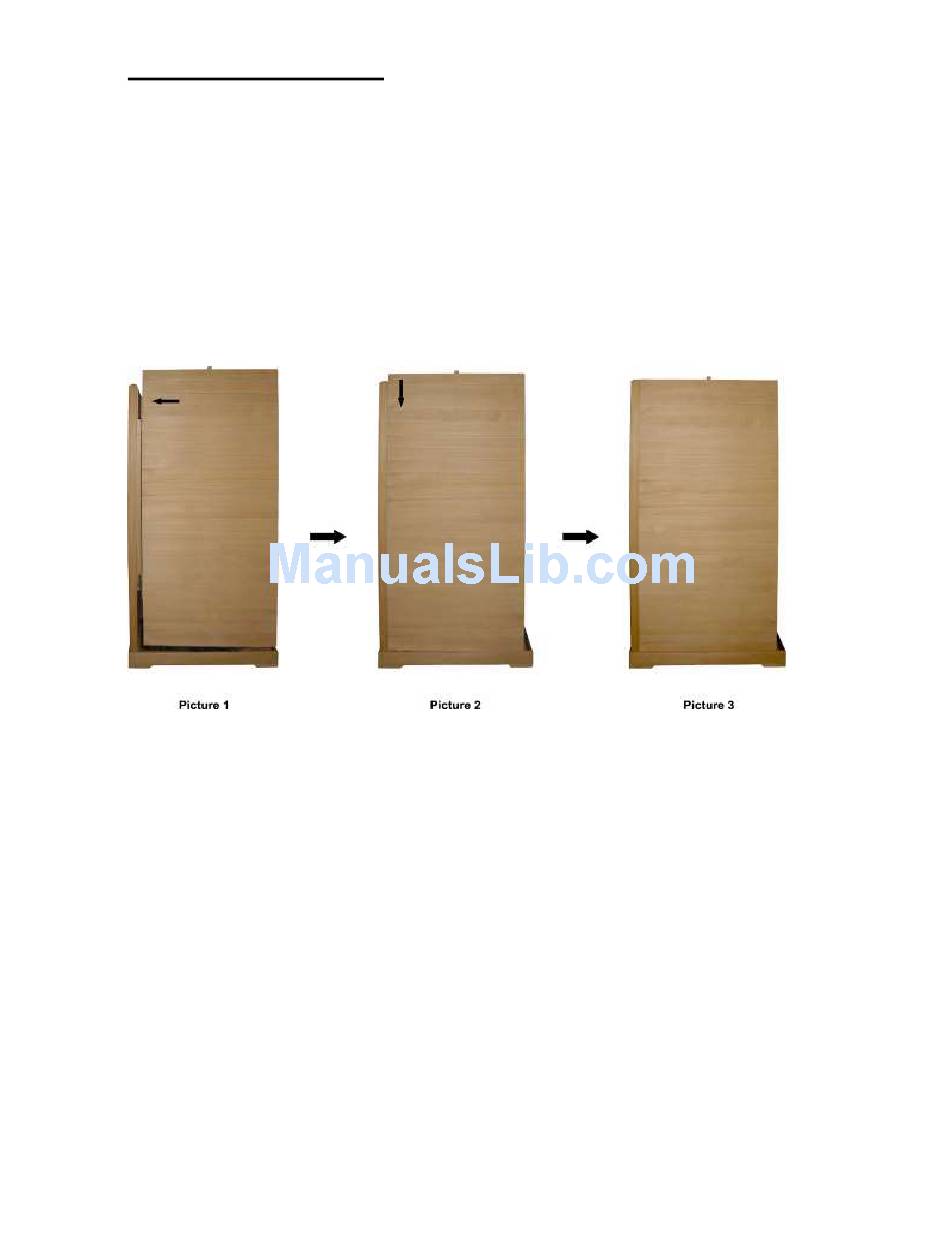

o The panel with pin should be lifted up about 1 inches (2 cm) higher than the panel with
the slot (Refer to Picture 1).
o Place the panel with the pin against the panel with the slot (Refer to Picture 2),and then
slide the panel with the pin down until the two panels are equal in height (Refer to Picture
3).
o If they are not equal in height or there is an obvious gap between the two panels, that
means they are not properly attached, and you should try again.
710-0131
Rev. 02
Page 3 of 16 05/05/15
