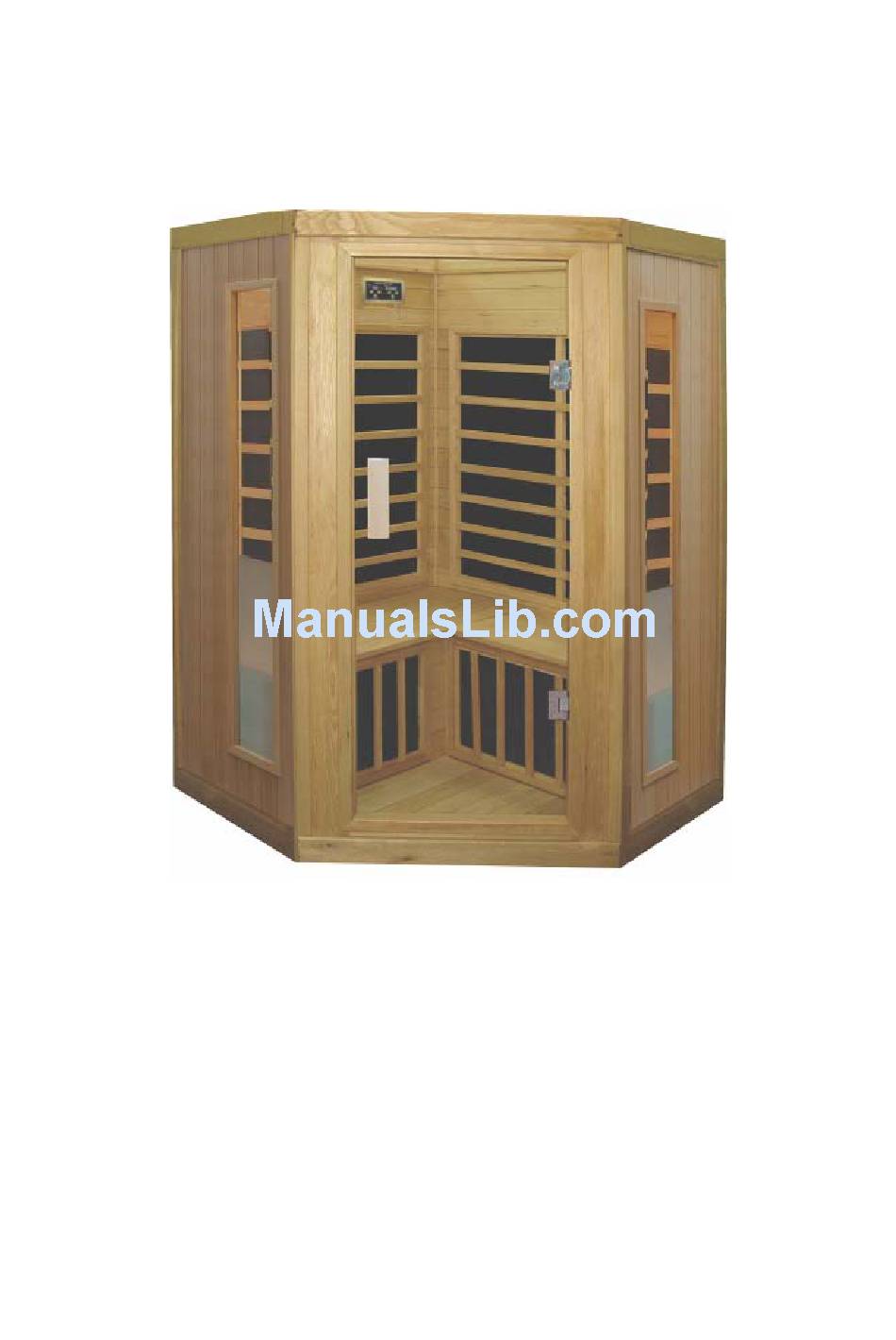

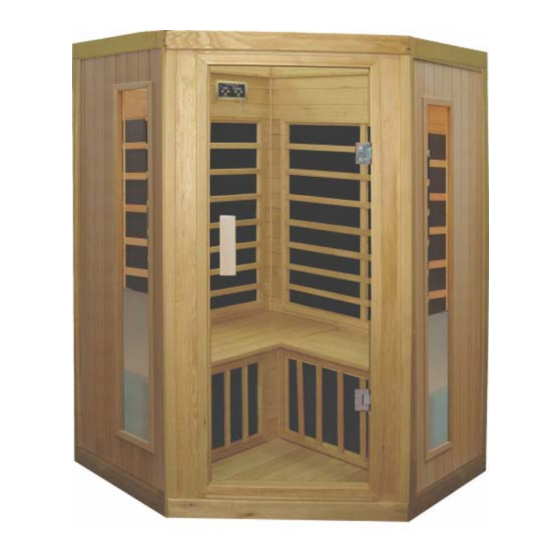

INFRARED WOODEN SAUNA ROOM INSTRUCTION MANUAL
Read all instructions carefully before using the wooden infrared sauna room
IG-570G
P R E C A U T I O N S F O R U S E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
R E A D B E F O R E I N S TA L L AT I O N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
I N S TA L L AT I O N O F S A U N A R O O M B O D Y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
WA R N I N G S A N D S U G G E S T I O N S F O R U S E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
C L E A N I N G A N D S T O R A G E . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
S P E C I F I C A T I O N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
S A U N A C I R C U I T D I A G R A M . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 0
IG-570G-1
0
25/10/2007
Advertisement
Related Manuals for Saunatec Infared Wooden Sauna Room IG-570G
Summary of Contents for Saunatec Infared Wooden Sauna Room IG-570G
-
Page 1: Table Of Contents
INFRARED WOODEN SAUNA ROOM INSTRUCTION MANUAL Read all instructions carefully before using the wooden infrared sauna room IG-570G P R E C A U T I O N S F O R U S E ............1 R E A D B E F O R E I N S TA L L AT I O N . -
Page 2: R E A D B E F O R E I N S Ta L L At I O N
※Never operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been dropped or damaged. For technical support or questions on operating the sauna please call the Saunatec National Customer Service Center toll-free at (888) 780-4427; or email the Service Center at techsupport@saunatec.com. -
Page 3: Parts Names
PARTS NAMES IG-570G-1 25/10/2007... -
Page 4: Installation Of Sauna Room Body
INSTALLATION OF SAUNA ROOM BODY 1. Place the floor panel in the desired location on a level surface (Note: The floor panel must be level before installing wall and ceiling panels. If the surface is not level you may need to shim the bottom panel to get level.) ※... - Page 5 4. Place the right side panel and the left side panel on the floor panel. ※ Make sure the left/right side panels and left/ right back panels are tightly fixed. 5. Place the bench support panel first and then place the bench surface panel into the sauna room.
- Page 6 6. Place the front panel on the floor panel, then lock the two inside latches between front and right side panel and between front and left side panel. ※Place the front panel on the floor panel, then lock the two inside latches between front and right side panel and between front and left side panel (Refer to picture 1 ).
- Page 7 9. The power cord has been connected and installed in the corner place of the ceiling. You can put it out of the cover for using. (Please see Picture 1 & Picture 2) Picture 1 10．The power cord is located at the corner of the ceiling panel. Simply plug into appropriate household outlet when ready to use the sauna.
- Page 8 IG-570G-1 25/10/2007...
-
Page 9: Control Panel Instruction
CONTROL PANEL INSTRUCTION 1.Press “POWER”to switch on or off. 2.“TIME”refers to control of operating time and indicates the amount of time remaining. ※Once power is on, the default amount of operating time is at 45 minutes. ※Press “UP” and “DOWN” to adjust and set time of use; pressing once will increase or reduce in 5 minute increments. -
Page 10: Warnings And Suggestions For Use
※Do not put the sauna room in a moist environment. ※Place room on level surface. ※Do not repair the product by yourself. Contact the Saunatec National Customer Service Center toll-free at 1-888-780-4427, or email at techsupport@saunatec.com. ※Do not disassemble the product by yourself except as indicated in the manual. - Page 11 IG-570G-1 25/10/2007...
- Page 12 IG-570G-1 25/10/2007...
