Page 1: Table Of Contents

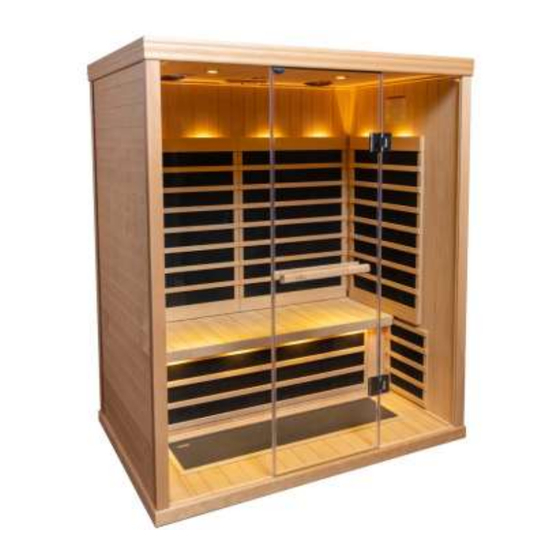

S3-Series 2 Person Infrared Sauna Touch Pad and Bluetooth IG-825-SH/S825 User Manual This Product is covered by: US Patents No. 8,692,168 Canadian Patents No. 2,729,500 2,794,059 & 2,813,340 and other Patents Pending. Note: Room must be installed on flat, level surface. Precautions Before Use Preassembly Information Electrical Requirements...
Page 2: Precautions Before Use
Precautions before Use: Warning (Room Configuration & Use):  Proper Electrical Grounding is Required  Electrical Receptacles not Allowed in the Room  Do not Apply Water to any Heating Element  Do not Add a Locking or Latching System to the Door ...
Page 3: Electrical Requirements
Electrical Requirements: The IR Sauna Room is designed for a 120 Volt AC / 15 or 20 Amp Circuit Breaker! A 120 Volt AC (dedicated) circuit is recommended to avoid unnecessary tripping of the breaker. The Sauna should be plugged into a NEMA (5-15R or 5-20R) Amp electrical outlet.
Page 4: Sauna Assembly
Sauna Assembly Instructions _________________________________________________________________________ Floor Panel (Box #1):  Locate the Floor Panel on a level surface (3-6) inches from wall and no more than (5 ft) from 120 Volt AC / 20 amp dedicated receptacle.  Position the Floor panel so that the Ceramic tiles / IR Floor Heaters are to the front of the room Note: place the Ceiling, Bench Skirt and Bench to the side until the appropriate steps.
Page 5 Back Wall (Box #3): Note: after opening box 3 -- store Front Wall panel until that step of the assembly process. Be sure to control the door from opening when moving the Front Wall Panel to prevent breakage.  Place Back Wall panel into the back slot of the Floor Panel. ...
Page 6 Right Wall (Box #2):  Place Right Wall section into the right slot of the Floor Panel.  Attach Back Wall to the Right Wall by lifting up the Right wall sliding into the corner interlock brackets. Left Wall (Box #2): ...
Page 7 Bench Skirt (Box #1):  Insert the Bench Skirt in between the Right Wall and the Left Wall panels tracks.  Slide Bench Skirt all the way to the floor. Do not pinch any wires under the skirt.  Latch the buckles securing the floor to the Bench Skirt. Do not latch the buckles for the left and right wall panel at this time.
Page 8: Electrical Connection-Under Bench
Electrical Connections (under bench - right side):  Connect wire #4 from distribution plate to #4 from Back Wall harness.  Connect wire #5 from the distribution plate to #5 from the Back Wall harness.  Connect wire R1 from the distribution plate to R1 from the Right Wall junction box. ...
Page 9 Electrical Connections (under bench - left side):  Connect wire L1 from the distribution plate to L1 from the Left Wall panel.  Connect wire B1 from the distribution plate to B1 from the Back Wall panel.  View of the finished connections. ...
Page 10  Use the buckles to latch the skirt to the left and right side walls.  Bench top can now be fit into place. Bench must tuck under the back heater guard and then push all the way to the back wall. ...
Page 11 Ceiling (Box #1):  Install 4 large Styrofoam packing squares on top of the Right & Left Wall panels. One block should be placed in the front portion and one toward the rear portion of each wall. These will be used to set the ceiling on. ...
Page 12  Lower the Ceiling panel by removing the rear Styrofoam blocks first and leaving the front blocks until front wall installed. Be sure not to pinch any wires under the Ceiling panel. Front Wall (Box #2):  Start with the door and glass panel piece and move to the Floor panel slot. ...
Page 13: Electrical Connection-Inside Ceiling
 Remove the foam blocks on the front corners, and place the glass panels in the slots in the ceiling. Make sure the ceiling fits tight and is flat and level.  Turn the wood ceiling cam locks to lock the ceiling into place. Electrical Connections (inside the Ceiling panel-back right corner): ...
Page 14 Electrical Connections (inside Ceiling-Left front corner):  Near the Touch Screen harness in Ceiling connect Left Wall wire #3 to Ceiling wire #3.  Connect Left Wall wire #7 to the Ceiling wire #7.  Connect Left Wall wire F to Ceiling wire F. ...
Page 15 Control Panel Instructions: Color Therapy Bench Heat Lights Interior Lights Valance Power ON or Main Power: Light Press POWER to switch room ON or OFF Timer Functions: Press and hold “+” or “–“ to set room operating time. Increases time (5 minute increments) / Decreases time (5 minute increments) Temperature Functions: Press to alternate between either C or F (C or F will light to indicate the units desired) Press and hold + or –...
Page 16: Control Panel Instructions
Audio System: Audio Power ON or OFF Auxiliary Input AUDIO OPERATION Audio Power On  Press Bluetooth icon to turn on or off audio system  Blue LED indicates the audio system is operating. Bluetooth  Bluetooth is always enabled when blue LED is glowing and Aux Input is not connected Auxiliary Input ...
Page 17: Audio System
How to Use Infrared Sauna: Avoid eating large meals and excessive alcohol intake before using Sauna. Never smoke or drink alcohol or exercise inside of Sauna. If you are taking any medications or under the care of a Physician, consult with them prior to Sauna usage. Refer to Sauna Usage Warning signs located inside of Sauna Room Prior to Sauna session, if possible before using Sauna, take a warm shower without drying.
Page 18: How To Use Sauna
Ensure the floor is flat by using a level on the ceiling of the room. It may be necessary to use a small door or window shim to adjust the level under the floor. ------------------------------------------------------------------------------------------- For additional assistance or service questions? Please do not hesitate contacting Saunatec/TyloHelo Mon – Fri. 8AM – 5PM CST 1-888-780-4427 techsupport@tyloheloinc.com...
Page 19: Tips & Troubleshooting
710-0126 IG-825-SH / S825-H 2 Person IR Sauna Page 19 04/09/14 Ver. 3 Rev. 4...
Page 20: Wiring Diagram
710-0126 IG-825-SH / S825-H 2 Person IR Sauna Page 20 04/09/14 Ver. 3 Rev. 4...
