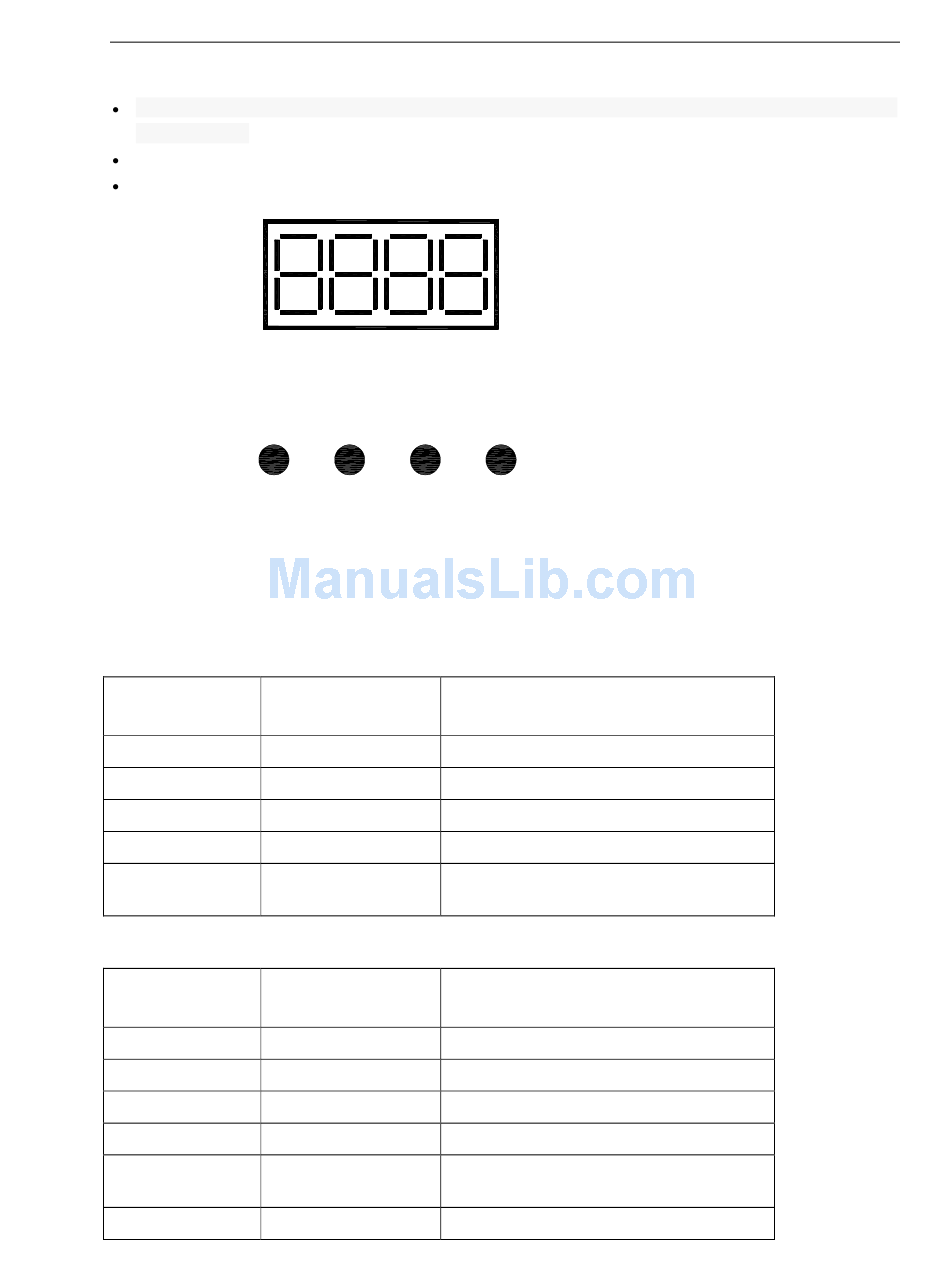

CONTROL BOARD OPERATION

Press "MODE " button, you can select "Auto ", " Sound ", " d*** ", " SLAV ", or" tESt ", one of five
kinds of mode.
In the"d***"work mode，Press"UP"or"DOWN"to set DMX address.
Press"ENTER"to save the current work mode or DMX address.
MODE
WORK MODE DESCRIPTION:
R/G/B MODEL
Display
Auto Run Mode
Auto
Sound Active Mode
Soud
DMX-512 Control Mode
d***
Slave Mode
SLAV
Test Mode
tESt
RGY MODEL
Display
Auto Run Mode
Auto
Sound Active Mode
Soud
DMX-512 Control Mode
d***
Slave Mode
SLAV
Test Mode
tESt
Set Color Mode
r/g/y/rgy
UP DOWN ENTER
Work Mode
Auto Run Mode
Sound Active Mode
Press"UP or "DOWN" to Set the DMX address
Slave Mode
Press"UP or "DOWN" to Select the single
pattern
Work Mode
Auto Run Mode
Sound Active Mode
Press"UP or "DOWN" to Set the DMX address
Slave Mode
Press"UP or "DOWN" to Select the single
pattern
Press"UP or "DOWN" to Select the laser color
4
