- Page 1 USER MANUAL ENGLISH Shark Beam One Product code: 45032 Firmware version: 2.0.1 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 Shark Beam One Preface Thank you for purchasing this Showtec product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
Shark Beam One Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Product Lifespan ..............................4 LEDs Lifespan ............................... 4 Text Conventions ..............................4 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety .................................. - Page 4 Shark Beam One Maintenance ..............................31 Safety Instructions for Maintenance ......................31 Preventive Maintenance ..........................31 Basic Cleaning Instructions ........................31 Corrective Maintenance ..........................32 Replacing the Fuse .............................32 Deinstallation, Transportation and Storage ....................33 Instructions for Deinstallation ..........................33 Instructions for Transportation ........................33 Storage ................................33 10.
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● Showtec Shark Beam One ● Schuko to Power Pro cable (1,5 m) ● Safety eye ●... -
Page 6: Symbols And Signal Words
Shark Beam One ● References: References to chapters and parts of the device are in bold lettering, for example: “Refer to 2. Safety”, “turn the adjustment handle (05)” ● 0–255: Defines a range of values ● Notes: Note: (in bold lettering) is followed by useful information or tips Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. -
Page 7: Safety
Shark Beam One Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... - Page 8 Shark Beam One WARNING Risk of epileptic shock Strobe lighting can trigger seizures in photosensitive epilepsy. Sensitive persons should avoid looking at strobe lights. Attention Power supply ● Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device.
-
Page 9: Requirements For The User
Shark Beam One Attention Before each use, examine the device visually for any defects. Make sure that: ● All screws used for installing the device or parts of the device are tightly fastened and are not corroded. ● The safety devices are not damaged. -
Page 10: Description Of The Device

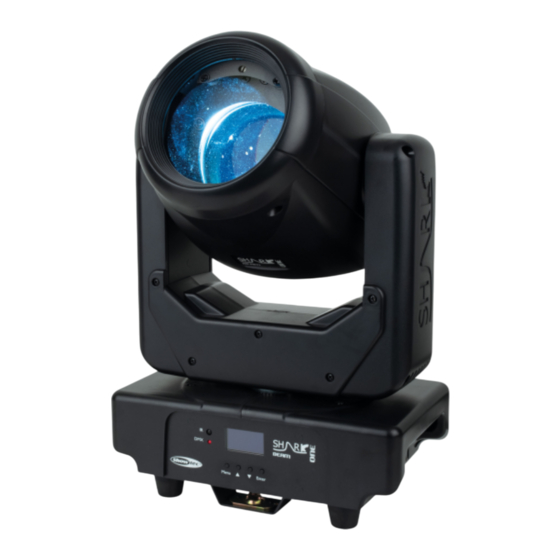

Description of the Device The Showtec Shark Beam One is a 90-watt LED beam moving head with a beam angle of just 3° and a number of impressive effects on board. Thirteen colours plus white and a 8-facet rotating prism allow it to put on colourful, dynamic light displays. -
Page 11: Bottom View
Shark Beam One Bottom View 11) Mounting holes for quick lock bracket 12) Safety Eye hole Fig. 04 Product code: 45032... -
Page 12: Product Specifications
Shark Beam One Product Specifications Model: Shark Beam One Electrical: Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 120 W Fuse: F4AL, 250 V Physical: Dimensions: 246 x 154 x 385 mm (L x W x H) (including bracket) -
Page 13: Dimensions
Shark Beam One Dimensions Fig. 05 Fig. 06 Fig. 07 Fig. 08 Product code: 45032... -
Page 14: Installation
Shark Beam One Installation Safety Instructions for Installation WARNING Incorrect installation can cause serious injuries and damage of property. If trussing systems are used, installation must be carried out only by instructed or skilled persons. Follow all applicable European, national and local safety regulations concerning rigging and trussing. -
Page 15: Rigging
Shark Beam One Rigging The device can be positioned on a flat surface or mounted to a truss or other rigging structure in any orientation. Make sure that all loads are within the pre-determined limits of the supporting structure. CAUTION Restrict the access under the work area during rigging and/or derigging. -
Page 16: Connecting To Power Supply
Do not link more devices on one power link than the maximum recommended number. Maximum recommended number of devices: ● at 100–120 V: 5 devices Shark Beam One ● at 200–240 V: 10 devices Shark Beam One Product code: 45032... -
Page 17: Setup
Disconnect power supply before connecting or disconnecting data cables. Stand-alone Setup When the Shark Beam One is not connected to a controller or to other devices, it functions as a stand- alone device. For more information about the control modes, refer to 6.2. Control Modes on page 19. -
Page 18: Dmx Cables
Fig. 11 Master/Slave Setup The Shark Beam One supports master/slave control mode. To connect multiple devices in a master/slave setup, follow the steps below: Connect the first device’s DMX OUT connector to the second device’s DMX IN connector with a 3-pin DMX cable. -
Page 19: Dmx Linking
04) Continue assigning the starting addresses of the remaining devices by adding each time 15 to the previous number. Make sure that you do not have any overlapping channels in order to control the Shark Beam One correctly. If two or more devices are addressed similarly, they will work similarly. -
Page 20: Operation
Control Modes The Shark Beam One can be operated with a DMX controller, or without a DMX controller as a stand- alone device or in a master/slave setup. -
Page 21: Control Panel
Shark Beam One Control Panel A) LED DISPLAY ENTER button C) DOWN button D) UP button MENU button Fig. 14 ● Use the MENU button to open the main menu or to exit the current submenu and return to the main menu. -
Page 22: Menu Overview
Shark Beam One Menu Overview Product code: 45032... -
Page 23: Main Menu Options
Shark Beam One Main Menu Options The main menu has the following options: 01) Press the UP/DOWN buttons to navigate through the main menu. 02) Press the ENTER button to open the submenus. Note: One of the submenus require a password. The default password is 018. -
Page 24: Running Mode
Shark Beam One Running Mode In this menu you can set the control mode of the device. 01) Press the UP/DOWN buttons to select one of the 3 operation modes. The display will show: 02) The operation modes are: ... -
Page 25: Settings
Shark Beam One Settings In this menu you can set the Shark’s settings. 01) Press the UP/DOWN buttons to select the desired submenu. The display will show: 02) Press the ENTER button to enter the desired submenu. 03) The submenus are: ... -
Page 26: Calibration
Shark Beam One Calibration In this menu you can set the initial movement and color parameters of the Shark. 01) Once you have chosen CALIBRATION (see page 25) press the ENTER button to open the menu. 02) You will now need to insert the password, in order to access the menu. Press the UP/DOWN buttons until the display shows 018 and press the ENTER button to confirm. -
Page 27: Remote Control
Shark Beam One Remote Control Fig. 15 Button Function Description Double-press the button (within 5 seconds) to switch IR ON/OFF mode ON or OFF. Reset Press the button to reset settings. LEDs ON/OFF Press the button to switch the LEDs ON/OFF. -
Page 28: Dmx Channels
Shark Beam One DMX Channels 8 channels, 15 channels 8 CH 15 CH Function Value Setting 000–255 Pan adjustment 0°–540° Pan Fine 000–255 Pan adjustment, 16-bit Tilt 000–255 Tilt adjustment 0°–210° Tilt Fine 000–255 Tilt adjustment, 16-bit Pan/Tilt Speed 000–255... - Page 29 Shark Beam One 8 CH 15 CH Function Value Setting 038–044 Gobo 6 045–051 Gobo 7 052–058 Gobo 8 059–065 Gobo 9 066–072 Gobo 10 073–079 Gobo 11 080–089 Rotating Gobo 1 shake effect, from slow to fast 090–099 Rotating Gobo 2 shake effect, from slow to fast 100–109...
-
Page 30: Rotating Gobo Wheel And Color Wheel
Shark Beam One Rotating Gobo Wheel and Color Wheel Fig. 16 Fig. 17 Product code: 45032... -
Page 31: Troubleshooting
Shark Beam One Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. - Page 32 Shark Beam One Maintenance Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. Preventive Maintenance Attention Before each use, examine the device visually for any defects. Make sure that: ●...
- Page 33 Shark Beam One Corrective Maintenance The device does not contain user-serviceable parts Do not open the device and do not modify the device. Refer repairs and servicing to instructed or skilled persons. Contact your Highlite International dealer for more information.
- Page 34 Shark Beam One Deinstallation, Transportation and Storage Instructions for Deinstallation WARNING Incorrect deinstallation can cause serious injuries and damage of property. ● Let the device cool down before dismounting. ● Disconnect power supply before deinstallation. ● Always observe the national and site-specific regulations during deinstallation and derigging of the device.
- Page 35 Shark Beam One Product code: 45032...
- Page 36 ©2022 Showtec...
