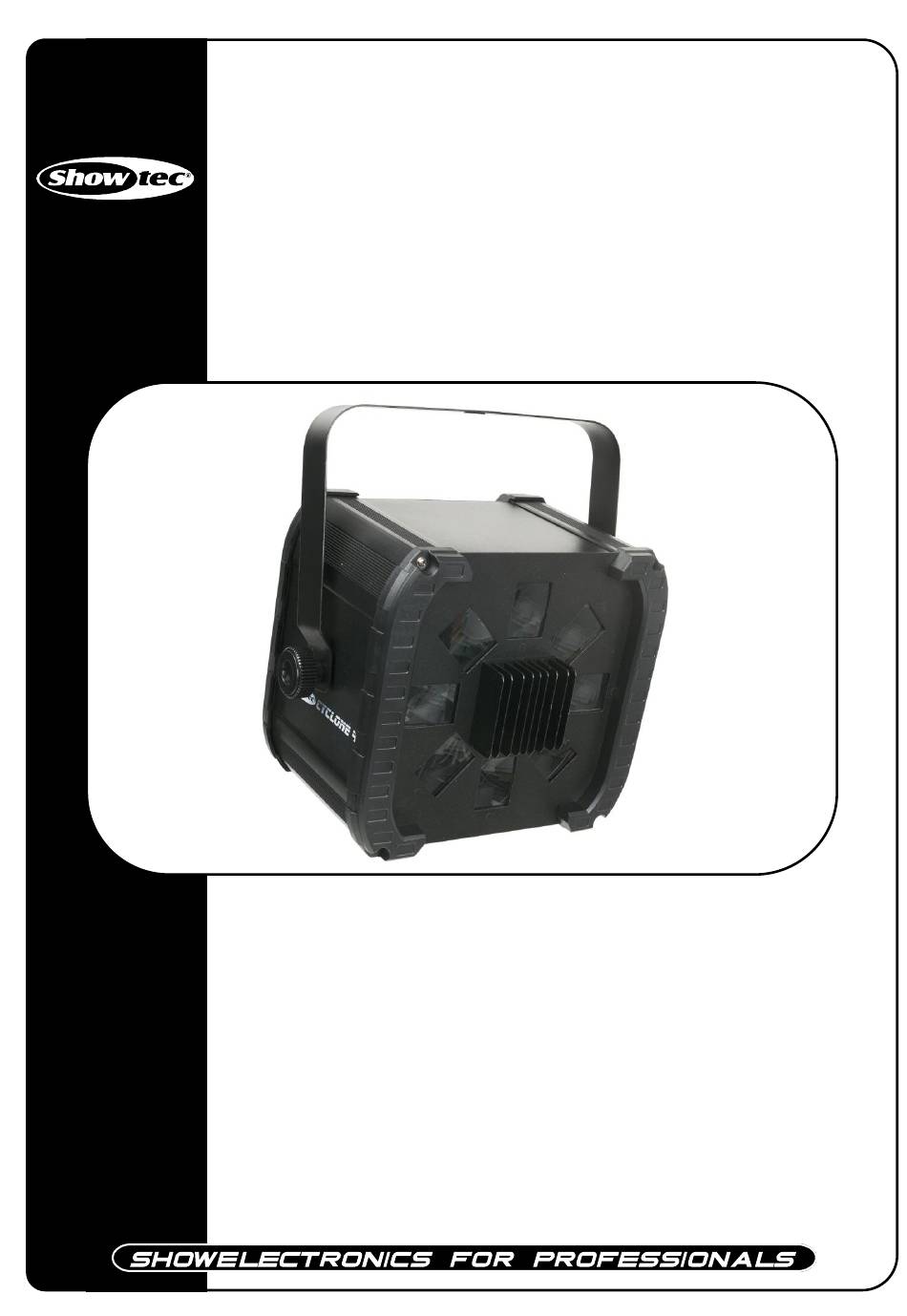

- Page 1 Cyclone 4 ORDERCODE 43087 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands Phone: +31 45-5667700...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec Cyclone 4 ™ Product Guide Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Overview ..................................6 Set Up and Operation ............................... 7 Control Modes ................................ -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Showtec Cyclone 4 including hanging bracket • IEC powercable 1,5m • User manual LED Expected Lifespan LEDs gradually decline in brightness over time. - Page 5 Allow time to cool down, before replacing lamp. The user is responsible for correct positioning and operating of the Cyclone 4. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.
-
Page 6: Operating Determinations
Always let the installation be carried out by an authorized dealer ! Procedure: If the Cyclone 4 is lowered from the ceiling or high joists, professional trussing systems have to be used. Use a clamp to mount the Cyclone 4, with the mounting-bracket, to the trussing system. -
Page 7: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description Of The Device

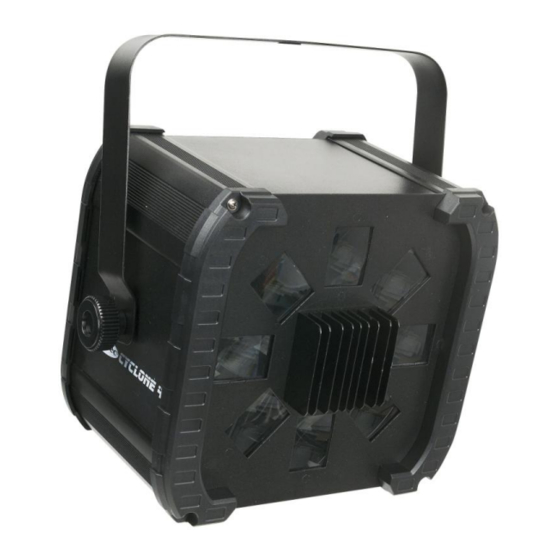

Description of the device Features The Showtec Cyclone 4 is a light effect with high output and great effects. • New generation dynamic LED light-effect, which creates big coverage range on the dance floor. • Intelligent Music Control (IMC), that reacts to your music like a real light-jockey. -
Page 9: Set Up And Operation
Do not attempt to operate a 120V specification product on 230V power, or vice versa. Remove all packing materials from the Cyclone 4. Check that all foam and plastic padding is removed. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 10: Multiple Cyclones (Dmx Control)
Multiple Cyclones (DMX Control) 1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. Always use a safety cable (ordercode 70140 / 70141). Use a 3-p XLR cable to connect the Cyclone and other devices. Link the units as shown in (figure 3), Connect a DMX signal cable from the first unit's DMX "out"... -
Page 11: Fixture Linking
Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 12: Control Panel
Control Panel Fig. 4 A. LCD Display D. Up Button B. MODE button E. Down Button C. SETUP Button DMX Control Mode The fixtures are individually addressed on a data-link and connected to the controller. When a DMX signal is present, the d will blink. The fixtures respond to the DMX signal from the controller. -
Page 13: Menu Overview
Menu Overview Auto Run Programs DMX Address Slave Sound-controlled LED Display Display Reverse Version Main Menu Options 1. Auto Run Programs 2. DMX Address 3. Slave 4. Sound-controlled 5. LED Display 6. Display Reverse 7. Version... -
Page 14: Auto Run Programs
1. Auto Run Programs 1) Press the MODE button on the device, until the display shows 2) With this menu you can set the Auto Mode of the Cyclone. 3) Press Setup to enter the AUTO Menu. You can choose 2 different sub menus. -
Page 15: Dmx Channels
DMX Channels 4 Channels Channel 1 - Programs Blackout 10-19 20-29 Green 30-39 Blue 40-49 White 50-59 Red + Green 60-69 Red + Blue 70-79 Red + White 80-89 Green + Blue 90-99 Green + White 100-109 Blue + White 110-119 Red + Green + Blue 120-129... -
Page 16: Maintenance
Maintenance The Showtec Cyclone requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and a soft cloth. - Page 17 Problem Probable cause(s) Remedy No power to the fixture • Check that power is switched on One or more and cables are plugged in. fixtures are Primary fuse blown. • Replace fuse. completely dead. Fixtures reset The controller is not connected. •...
-
Page 18: Product Specification
Product Specification Model: Showtec Cyclone • New generation dynamic LED light-effect, which creates big coverage range on the dance floor. • Intelligent Music Control (IMC), that reacts to your music like a real light-jockey. • If you are playing easy-listening music different nice slow programs will be selected.
