Quick Start Guide
00825-0100-4130, Rev CC
July 2017
™

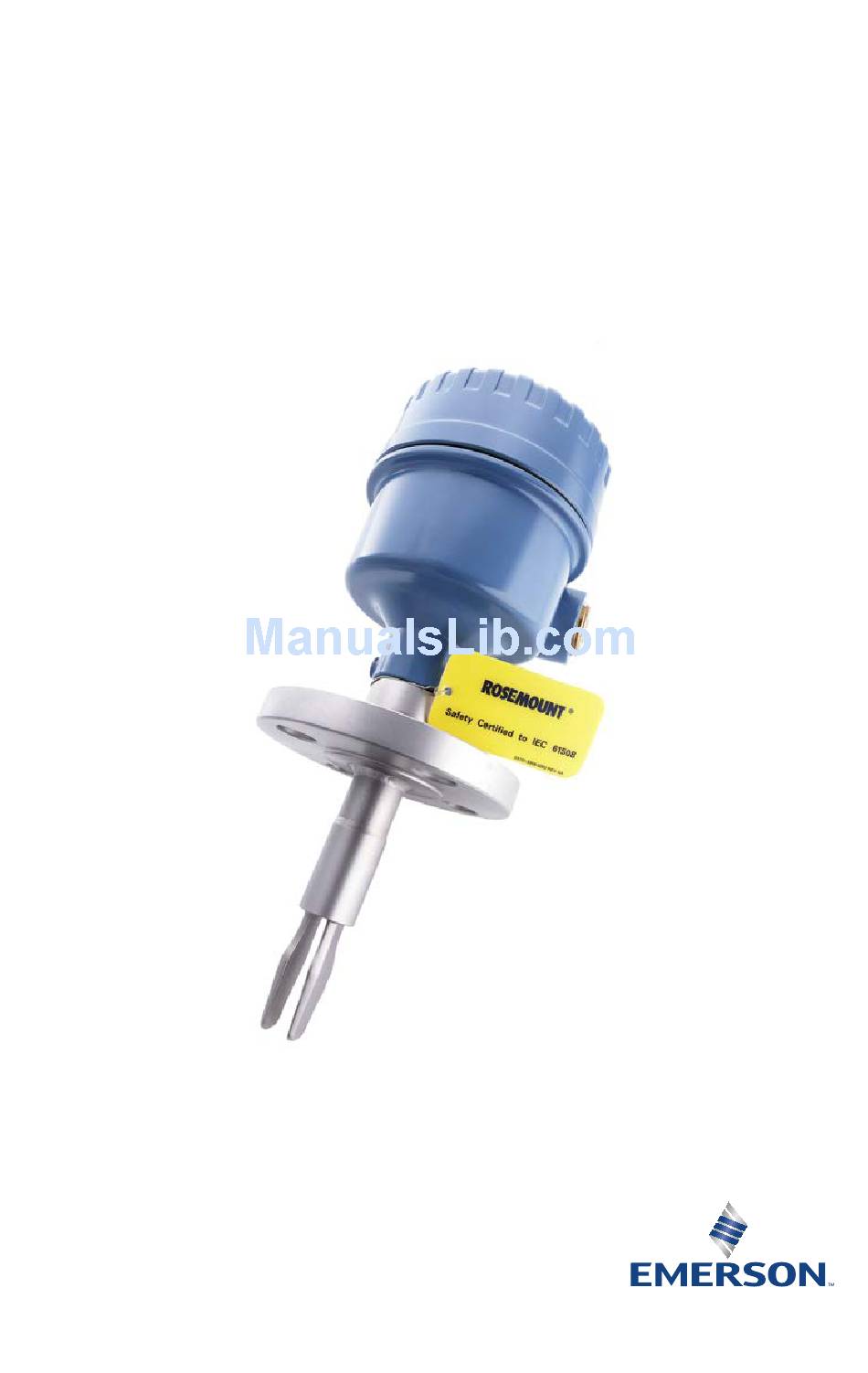

Rosemount
2130 Level Switch
Vibrating Fork

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rosemount 2130 and is the answer not in the manual?

Questions and answers

Related Manuals for Emerson Rosemount 2130

Summary of Contents for Emerson Rosemount 2130

  • Page 1 Quick Start Guide 00825-0100-4130, Rev CC July 2017 ™ Rosemount 2130 Level Switch Vibrating Fork...
  • Page 2 July 2017 Quick Start Guide NOTICE This installation guide provides basic guidelines for the Rosemount 2130. It does not provide instructions for detailed configuration, diagnostics, maintenance, service, troubleshooting, or installations. Refer to the for more instruction. Manuals are available electronically on...
  • Page 3 1.0 Introduction 1.1 Overview of the Rosemount 2130 The Rosemount 2130 Level Switch (“level switch”) uses vibrating short fork technology, and is suitable for virtually all liquid applications. The level switch is designed using the principle of a tuning fork. A piezo-electric crystal oscillates the forks at their natural frequency (~1400 Hz).

  • Page 4: Before Installation

    Quick Start Guide 2.0 Before installation 2.1 General considerations The weight of the Rosemount 2130 Level Switch (“level switch”) with a heavy  flange and extended fork length may exceed 37 lb. (18 kg). A risk assessment is required to be done before carrying, lifting, and installing the level switch.

  • Page 5: Installation Recommendations

    Quick Start Guide July 2017 Ensure there is adequate space outside the tank or pipe. A clearance of 1.2 in.  (30 mm) is required for the housing cover to be removed. Always ensure a proper seal by installing the electronics housing cover so that ...

  • Page 6: Physical Installation

    3. Close the housing cover and tighten to safety specification. Always ensure a proper seal so that metal touches metal, but do not over tighten. ® 4. Insulate the level switch with ROCKWOOL . Refer to the Rosemount 2130 Reference Manual for guidance. Figure 5. Example Installations...

  • Page 7: Electrical Installation

    Quick Start Guide July 2017 4.0 Electrical installation Before use, check that suitable cable glands and blanking plugs are fitted and fully tightened. Isolate supply before connecting the switch or removing the electronics. The functional earth terminal must be connected to an external earthing system.
  • Page 8 July 2017 Quick Start Guide 4.2 PNP/PLC cassette (three-wire, yellow label) PLC/PNP OPERATION MODE Dry On Mode Dry On Wet On Isolate Supply Before Removing Seconds Delay Wet On Mode U = 20 - 60 V (dc) I < 4 mA + I (Ground) ) = 0 - 500 mA = 5 A, 40 ms (inrush)
  • Page 9 Quick Start Guide July 2017 4.3 DPCO Relay cassette (dark green label) OPERATION MODE Warning Isolate Supply Before Removing Seconds Delay Dry On Dry On Wet On Wet On Fuse 0.5 (T) (Ground) Resistive Load Inductive Load cos φ = 1 ; cos φ...
  • Page 10 July 2017 Quick Start Guide 4.4 Fault and Alarm Relays (2 x SPCO) cassette (light green label) OPERATION MODE WARNING Isolate Supply Alarm Fault Seconds Delay Before Removing Dry On Dry On Wet On Wet On Fuse 0.5 (T) Resistive Load Inductive Load (Ground) cos φ...
  • Page 11 Quick Start Guide July 2017 4.5 NAMUR cassette (light blue label) OPERATION MODE EN 50227 / NAMUR Dry On Mode Dry On Wet On Seconds Delay Wet On Mode = 2.2 ... 2.5 mA = 0.8 ... 1.0 mA < 1.0 mA FAULT A certified intrinsically safe isolating amplifier to IEC 60947-5-6...
  • Page 12 July 2017 Quick Start Guide 4.6 8/16 mA cassette (dark blue label) OPERATION MODE Dry On Mode Dry On Wet On 8/16 mA Seconds Delay Wet On Mode 15 ... 17 mA U = 24 Vdc Nominal 7.5 ... 8.5 mA <...

  • Page 13: Fault Condition Detected (Self-Check Mode Only)

    Quick Start Guide July 2017 4.7 Fault condition detected (self-check mode only) When a fault condition is detected in the self-check operating mode, the ‘heartbeat’ LED flashes once every half a second and every third flash is missed. The output from the level switch will then be as follows: Direct Load PNP dc <4mA...
  • Page 14 July 2017 Quick Start Guide 5.0 Configuration 5.1 Set the mode switch and switching time delay 1. Select “Dry on” or “Wet on” mode. 2. Select 0.3, 1, 3, 10, or 30 seconds for the delay before switching output state. Note There is a five second delay when changing mode or time delay.

  • Page 15: Led Indication

    3 times every second Internal PCB fault (microprocessor, ROM, or RAM) Problem (e.g. supply) 1. See “Fault condition detected (self-check mode only)” on page 2. Refer to the “Replacement and Calibration of Electronic Cassettes” section in the Rosemount 2130 Reference Manual Manual Supplement.

  • Page 16: Troubleshooting

    Suppress the cause of the interference switching Cassette has been fitted from another Fit the factory supplied cassette Rosemount 2130 and then calibrate 1. Refer to the “Replacement and Calibration of Electronic Cassettes” section in the Rosemount 2130 Reference Manual Manual Supplement.

  • Page 17: Maintenance And Inspection

    Ensure the housing cover, cable glands, and blanking plugs are fitted securely.  Ensure the LED flash rate is 1 Hz or continually on.  (See “LED indication” on page 15). 9.0 Spare parts See the Rosemount 2130 Product Data Sheet for spares and accessories. ...

  • Page 18: Product Certifications

    10.4 Drinking water approval Rosemount Measurement Ltd. (United Kingdom) confirms that the wetted parts of the Rosemount 2130 vibrating fork level switch are suitable and approved for drinking water usage. The wetted parts of the vibrating fork level switches executed in stainless steel (option code S) and Alloy C/Alloy C-276 (option code H) with flanged, NPT thread, BSPT(R) thread, or Tri-clamp process connections, are in accordance with the requirements of DVGW*- Worksheet W270.The...

  • Page 19: Hazardous Locations Certificates

    10.7 Canadian Registration Number Certificate Number CRN 0F04227.2C The requirements of CRN are met when a Rosemount 2130 CSA approved vibrating fork level switch (with Product Certifications code G6, E6, or I6) is configured with stainless steel wetted parts and either NPT threaded or ASME B16.5 2-in.

  • Page 20: European Approvals

    July 2017 Quick Start Guide Canadian Standards Association (CSA) intrinsically safe approval (See “Instructions for hazardous area installations (I5 and I6)” on page I6 Certificate Number: 06 CSA 1786345 Intrinsically Safe for Class I, Div. 1, Groups A, B, C, and D Class I, Zone 0, Ex ia IIC Non-incendive for Class I, Div.
  • Page 21 E3 Certificate: GYJ101373 Flameproof and dust proof: Ex d IIC T6~T2 DIP A21 T (T85 °C ~ 265 °C) IP6X (See the certificate or Rosemount 2130 Reference Manual for instructions specific to hazardous area installations) I3 Certificate: GYJ101372X Intrinsic Safety (NAMUR electronics): Ex ia IIC T5~T2 Ui=15 V, Ii=32 mA, Pi=0.1 W, Ci=12 nF, Li=0.06 mH...
  • Page 22 July 2017 Quick Start Guide Technical Regulation Customs Union (EAC), flameproof approval EM Certificate: RU C-GB.AB72.B.01385 (M20 conduit entry/cable thread only) Markings for 2130***M: 1Exd IIC T6 X (-40 °C  Ta  +75 °C); 1Exd IIC T5 X (-40 °C  Ta  +70 °C); 1Exd IIC T4 X (-40 °C ...
  • Page 23 This shall be considered when the Rosemount 2130 is installed in locations that specifically require Class 1, Div 1 equipment.
  • Page 24 Minimum ambient air temperature (Ta) = –40 °C Minimum process temperature (Tp) = –40 °C c. Pressure: Must not exceed the rating of the coupling/flange fitted. d. For electrical details and pressure ratings, see the Rosemount 2130 Product Data Sheet Reference Manual.
  • Page 25 The following instructions apply to equipment covered by CSA and FM intrinsically safe and non-incendive approvals: 1. The Intrinsically Safe approved Rosemount 2130 may be used in hazardous locations with flammable gases and vapors Class 1 Division 1 Groups A, B, C, and D, and Class 1 Zone 0 Group IIC when installed in accordance with control drawings 71097/1154, 71097/1314, 71097/1179, or 71097/1315.
  • Page 26 Under certain extreme circumstances, the non-metallic parts incorporated in the enclosure of the Rosemount 2130 may generate an ignition-capable level of electrostatic charge. Therefore, when they are used for applications that specifically require group II equipment, the Rosemount 2130 shall not be installed in a location where the external conditions are conducive to the build-up of electrostatic charge on such surfaces.
  • Page 27 Quick Start Guide July 2017 10.12 Instructions specific to hazardous area installations (E1 / E7) Model numbers covered: 2130*A2E***********E1****,2130*S2E***********E1****, 2130*A2E***********E7****,2130*S2E***********E7****, 2130*A2M***********E1****,2130*S2M***********E1****, 2130*A2M***********E7****,2130*S2M***********E7**** (“*” indicates options in construction, function and materials). The following instructions apply to the equipment covered by certificates Sira 05ATEX1129X and IECEx SIR 06.0051X: 1.
  • Page 28 July 2017 Quick Start Guide Aggressive substances: e.g. acidic liquids or gases that may attack metals, or solvents that may affect polymeric materials Suitable precautions: e.g. regular checks as part of routine inspections or establishing from the material’s data sheet that it is resistant to specific chemicals 10.
  • Page 29 Minimum ambient air temperature (Ta) = –40 °C Minimum process temperature (Tp) = –40 °C c. Pressure: Must not exceed the rating of the coupling/flange fitted. d. For electrical details and pressure ratings, see the Rosemount 2130 Product Data Sheet...
  • Page 30 Suitable Precautions: e.g. regular checks as part of routine inspections or establishing from the material’s data sheet that it is resistant to specific chemicals. 7. The Rosemount 2130 meets the requirements of clause 6.3.12 (Isolation of circuits from earth or frame) in EN 60079-11 (IEC 60079-11).

  • Page 31: Technical Data

    Quick Start Guide July 2017 8. Technical Data: a. Coding: ATEX: Certificate: Sira 05ATEX2130X Intrinsic Safety for gas and dust atmospheres: ATEX Marking II 1 GD Ex ia IIC T5...T2 Ga Ex ia IIIC T85 °C...T265 °C Da IECEx: Ex ia IIC T5...T2 Ga, Ex ia IIIC T85 °C...T265 °C Da b.
  • Page 32 Equipment Protection Level Ga or Da [ATEX: group II, category 1G or 1D equipment] [IECEx: in Zone 0 or 20 locations], the Rosemount 2130 shall not be installed in a location where the external conditions are conducive to the build-up of electrostatic charge on such surfaces.
  • Page 33 Quick Start Guide July 2017 Figure 8. EU Declaration of Conformity for Rosemount 2130 (Page 1)
  • Page 34 July 2017 Quick Start Guide Figure 9. EU Declaration of Conformity for Rosemount 2130 (Page 2)
  • Page 35 Quick Start Guide July 2017 Figure 10. EU Declaration of Conformity for Rosemount 2130 (Page 3)
  • Page 36 July 2017 Quick Start Guide Figure 11. EU Declaration of Conformity for Rosemount 2130 (Page 4)
  • Page 37 Quick Start Guide July 2017 China RoHS Rosemount 2130 List of Rosemount 2130 Parts with China RoHS Concentration above MCVs / Hazardous Substances Hexavalent Polybrominated Polybrominated Part Name Lead Mercury Cadmium Chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (Cr +6)
  • Page 38 July 2017 Quick Start Guide...
  • Page 39 Quick Start Guide July 2017...
  • Page 40 Enquiries@AP.Emerson.com Standard Terms and Conditions of Sale can be found at www.Emerson.com/en-us/Terms-of-Use Middle East and Africa Regional Office The Emerson logo is a trademark and service mark of Emerson Emerson Automation Solutions Electric Co. Emerson FZE P.O. Box 17033 Rosemount and Rosemount logotype are trademarks of Emerson.
