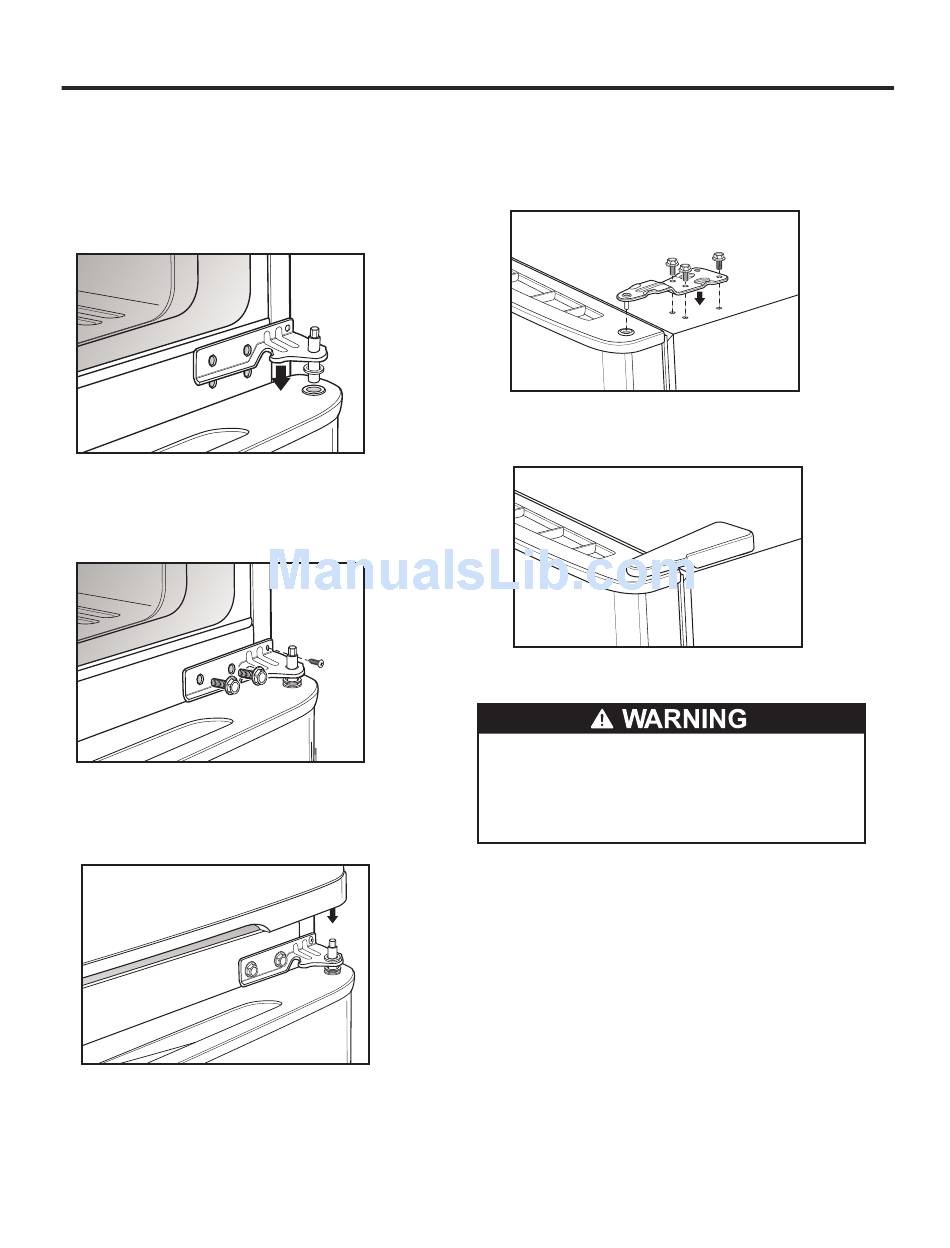

3-3 REPLACE REFRIGERATOR DOOR

• Set door onto Bottom Hinge Pin.
• Place Hinge Pin of Middle Hinge Bracket inside
Hinge
Pin Insert on top of door (Fig. 7). Hold door
in place and
line up the Middle Hinge Bracket with
the holes in refrigerator housing.
Fig. 7
• Use the 2 bolts and phillips screw to refasten
the Middle Hinge Bracket and door to the
refrigerator housing. (Fig. 8).
Fig. 8

3-4 REPLACE FREEZER DOOR

• Set the freezer door onto the Middle Hinge Pin
(Fig. 9).
Fig. 9
• Place Upper Hinge's Pin in the top of freezer door
and line up the Upper Hinge with holes in top of
refrigerator. Use the 3 bolts to replace Hinge (Fig. 10).
Fig. 10
• Carefully force-t Top Hinge Cover back into place
over Hinge (Fig.11).
Fig. 11
ELECTRICAL SHOCK HAZZARD
Before you begin, either unplug the refrigerator or turn
o power at the circuit breaker or fuse box. Remove
food and any Adjustable Door or Utility Bins from doors.
Failure to do so could result in death or serious injury.
- 7 -
