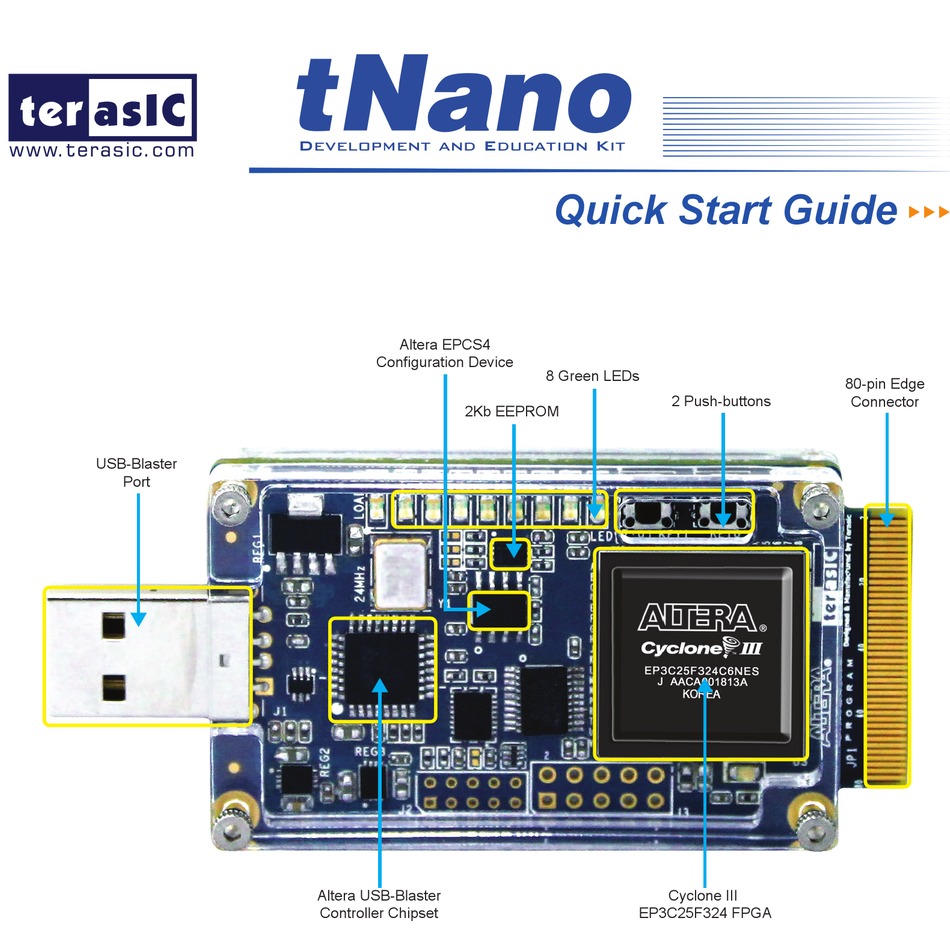

- Page 1 Development and Education Kit Quick Start Guide Quick Guide Altera EPCS4 Configuration Device 8 Green LEDs 80-pin Edge 2 Push-buttons Connector 2Kb EEPROM USB-Blaster Port Altera USB-Blaster Cyclone III Controller Chipset EP3C25F324 FPGA...
- Page 2 To begin, install the Quartus II software, which you can download from Altera’s website. The tNano board requires Quartus II software version 10.0 or later in order to properly compile and generate FPGA programming files. Additionally, you may need to install the Nios II Embedded Design Suite.
- Page 3 CD by performing the following steps: Connect the tNano board to the PC directly or using an extended USB cable Copy all the content of tNano system CD to your host PC; and browse to the directory <install.path>:\demonstrations\<Demo name>\demo batch\ Double click the <demo batch>.bat file for downloading configuration data and Nios II...
- Page 4 台湾地区 大陆地区 TEL:+886-3-550-8800 TEL:+86-27-87745390 FAX:+886-3-550-2860 FAX:+86-27-87745392 sales@terasic.com sales@terasic.com.cn support@terasic.com support@terasic.com.cn http://www.terasic.com.tw http://www.terasic.com.cn...
