Attaching the High Mast (Laser Only)

Attaching the High Mast (Laser Only)
Compac Industries Ltd.
All high masts come pre-assembled with the dispenser and simply require
connection.
To attach the high mast:
1. Remove the stainless steel screws from the side of the dispenser.

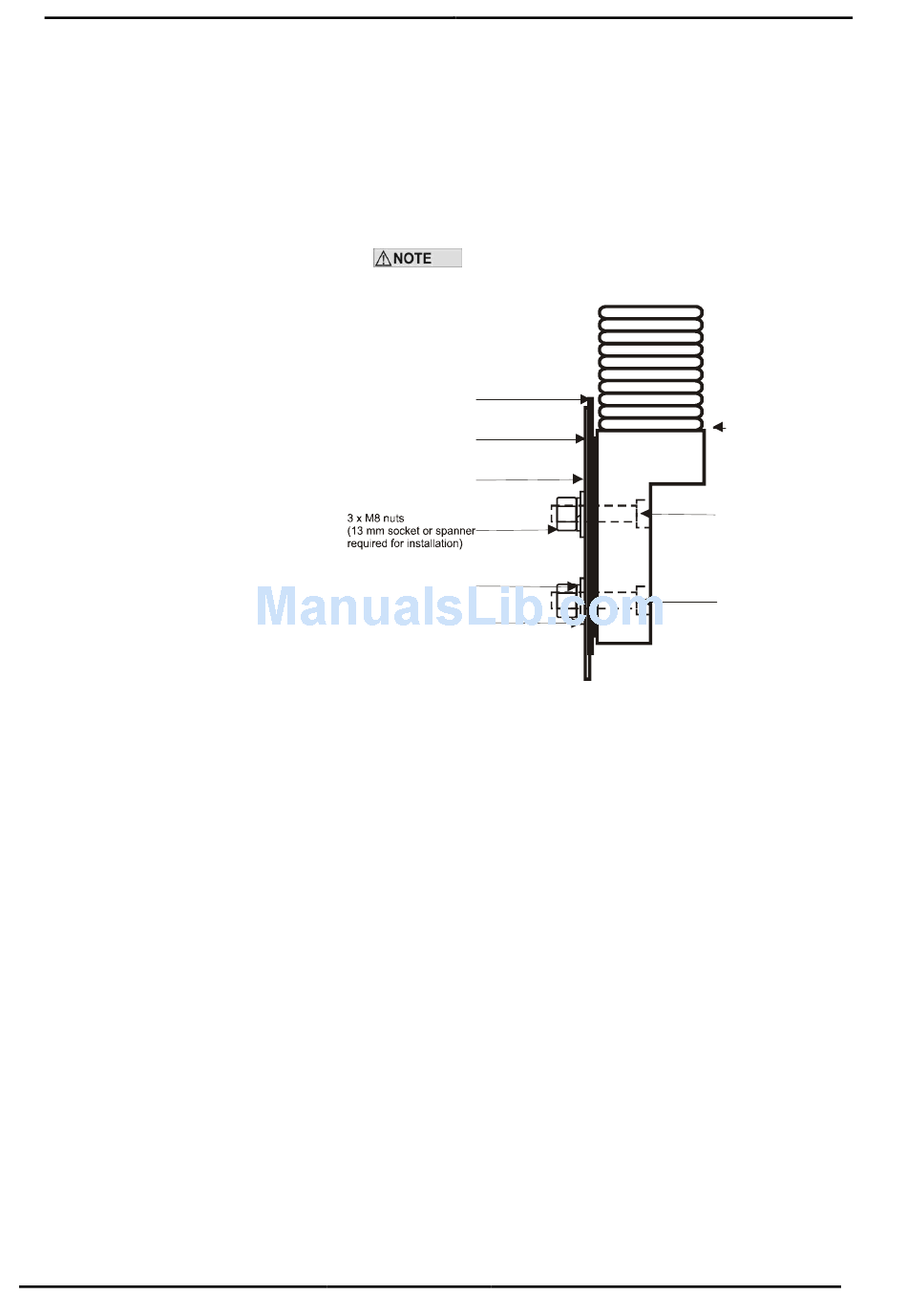

2. Attach the mast using the screws, as pictured below.
The high mast gasket and stainless steel screws are fitted
to the dispenser in the factory.
Side of display cabinet
High mast
reinforcing bracket
High mast gasket
3 x M8 spring washers
3 x M8 flat washers
Page 14
Mechanical Installation
High mast assembly
complete with
bracket
3 x M8 x 30 stainless steel
socket head screw
(6 mm Allen or Hex
key required for installation)
3 x M8 x 30 stainless steel
socket head screw
(6 mm Allen or Hex
key required for installation)
