C4000 Temperature Pressure Interface Board CI214D
C4000 Temperature Pressure Interface Board CI214D

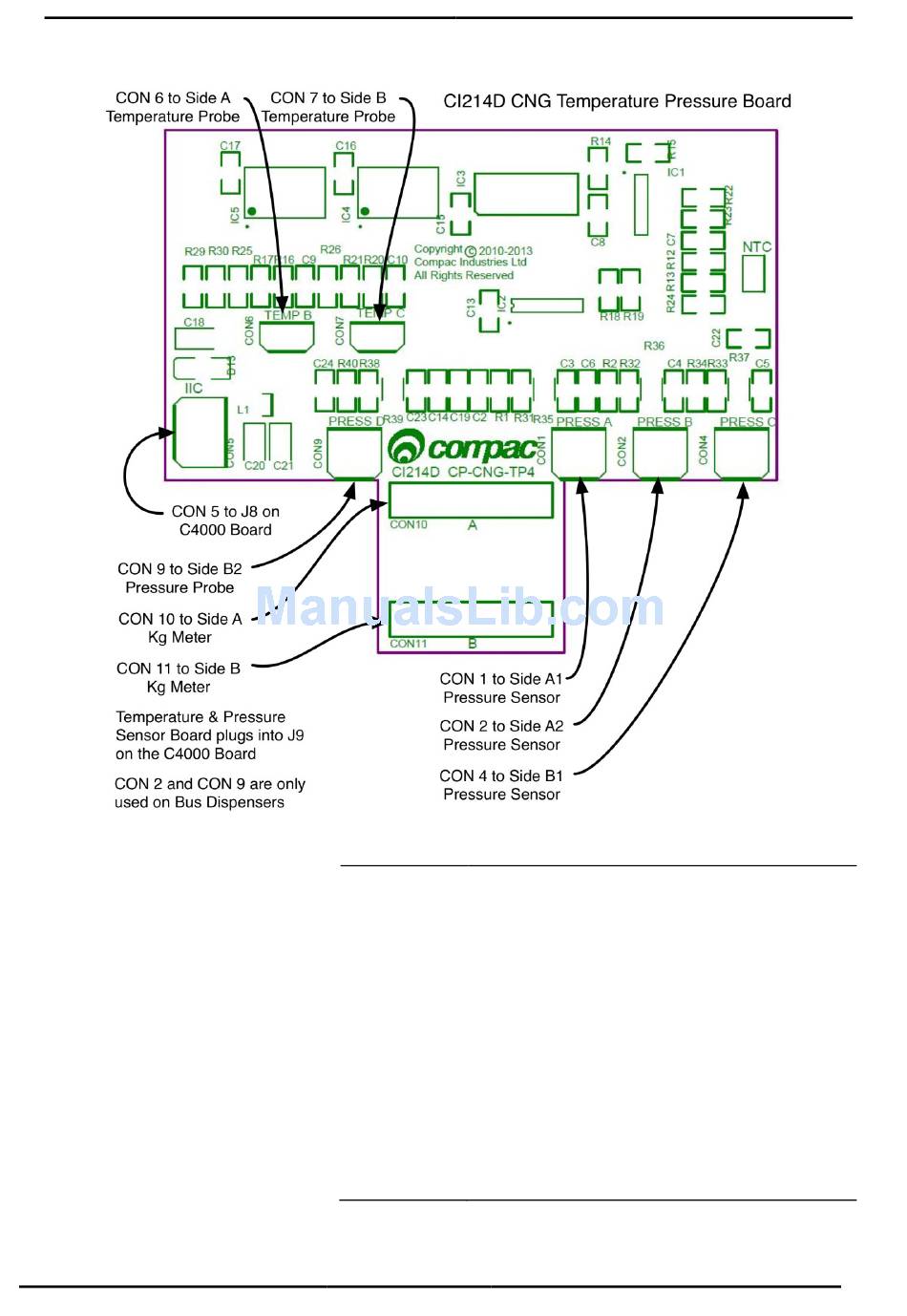

Temperature Pressure Interface Board
Pin Connections
Compac Industries Ltd.
Electrical Drawings and Component Details
Connection
Function
CON 1
Pressure Transducer Side A1
CON 2
Pressure Transducer A2 (Bus dispensers)
CON 4
Pressure Transducer B1
CON 6
Temperature Probe Side A
CON 7
Temperature Probe Side B
CON 9
Pressure Transducer B2 (Bus dispensers)
CON 5
Connection to J8 on C4000 board
Board plugs into J9 on C4000 board
Page 112
www.compacngv.com
