Compac CNG Service Manual page 100

C4000 Microprocessor Board
Tote A
Tote A
Compac Industries Ltd.
J9 *
18 17
16 15
14 13
12 11
10 9
8 7
6 5
4 3
2 1

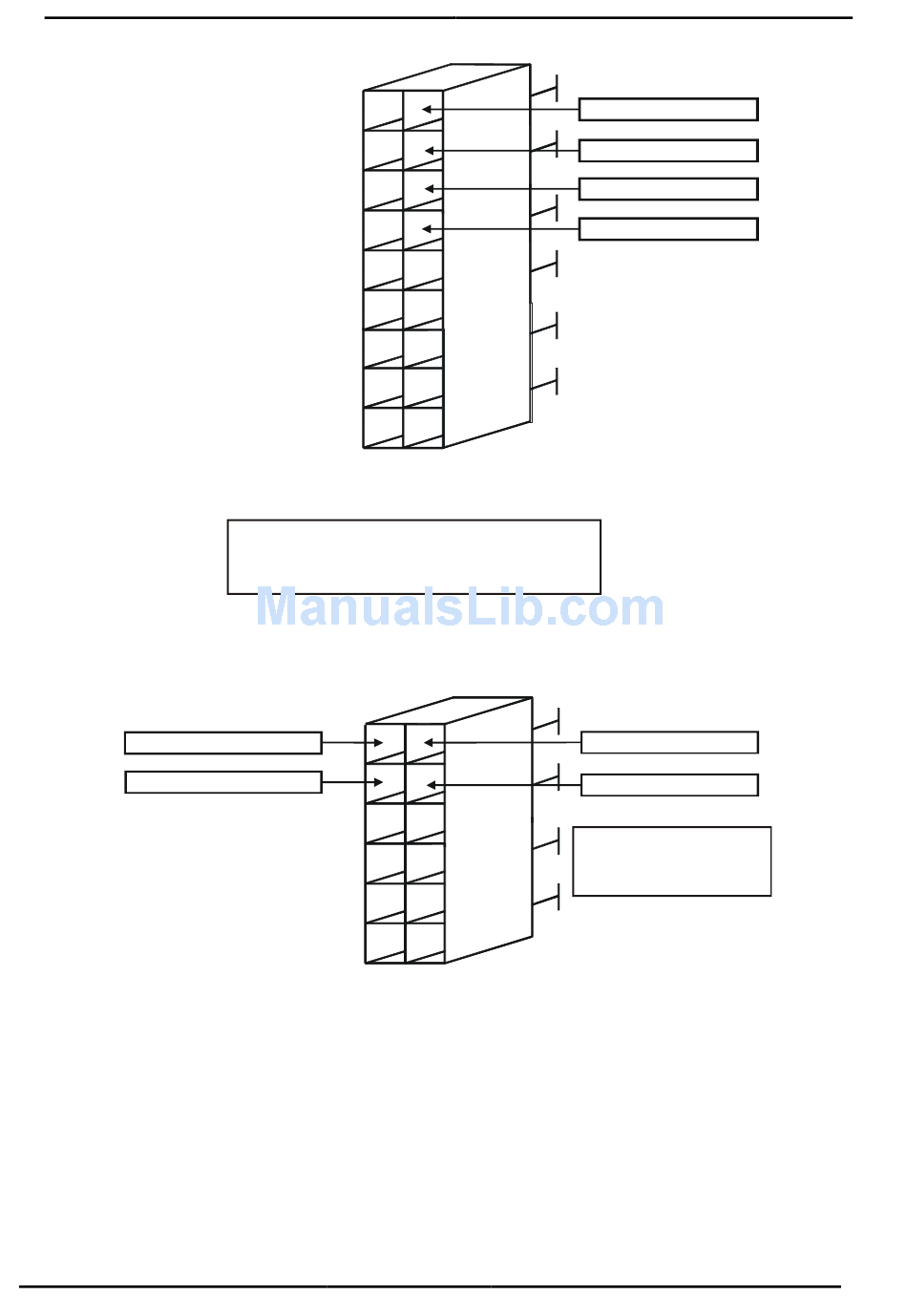

* Colour coding for KG Meter wiring is shown.
(On a Dual Hose Dispenser an additional
PCB - CI165 plugs into J9 to allow the
connection of two KG Meters)
J10
1 2
VCC
3 4
TOTE0
5 6
7 8
9 10
11
12
Page 100
Electrical Drawings and Component Details
Green
White
Black
Screen
Tote B
Tote B
** Side B Tote Outputs
( Not used for a Single
Hose Dispenser )
VP
GND
GND
GND
VCC **
TOTE1 **
