GeoVision VS04H Quick Start Manual page 11

GV-VS2420 / 2400
7
No. Name
1 Video Input
2
Line Out
3
Line In
4 Reset
5 Default Button
6 Disk Full/Fault LED
7 Ready LED
4
8
6
5
9
Function
4 plugs for video inputs.
A plug for Video 1 speaker device.
A plug for Video 1 audio input.
It reboots the GV-Video Server, and keeps all
current configurations.
It resets all configurations to their factory
settings. See 6.4 Restoring to Factory Default
Settings.
This LED is on, indicating the hard drive is full
or faulty.
This LED is on, indicating the GV-Video Server
is ready for connection.

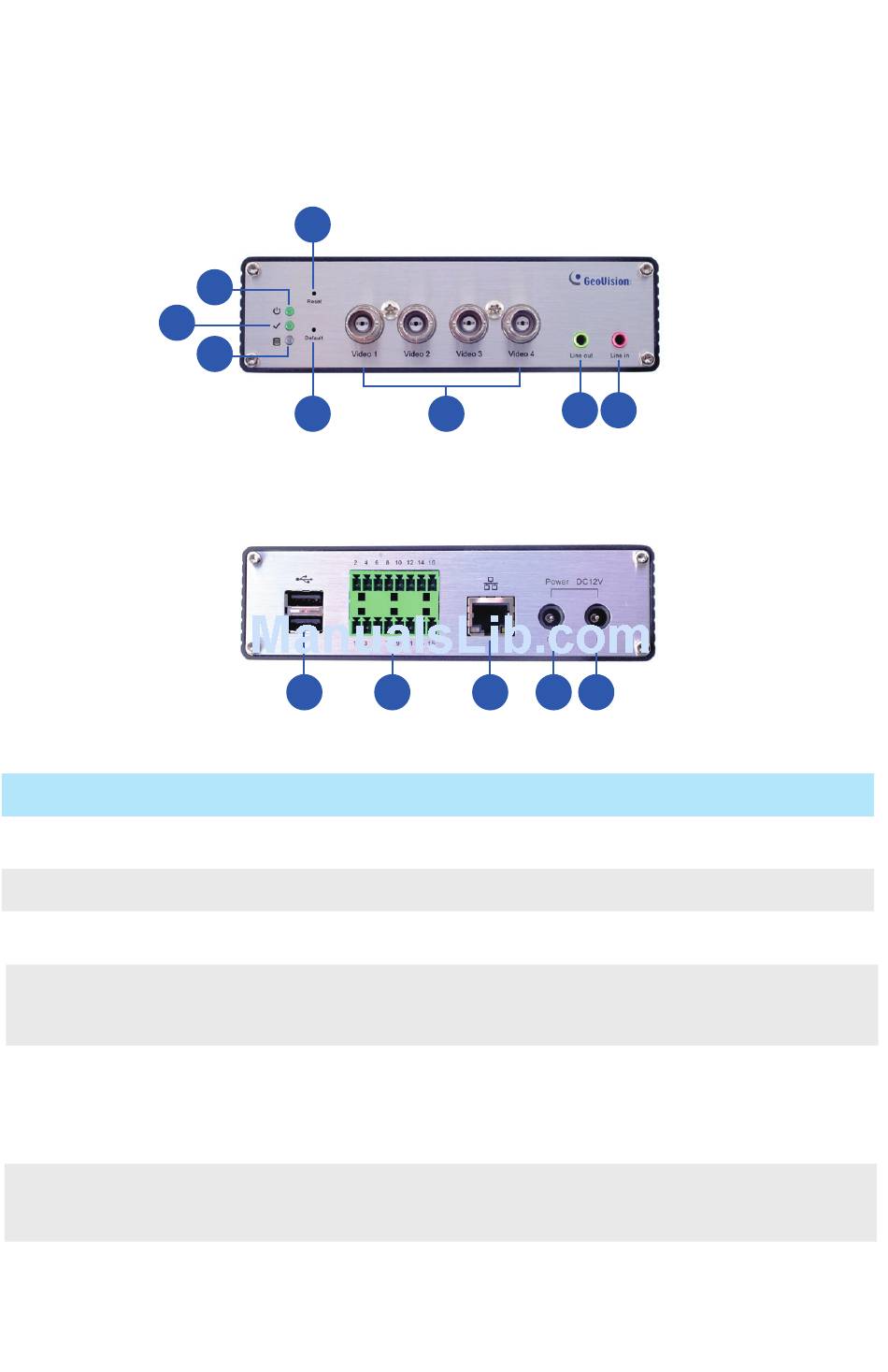

Front View
1
Rear View
10 11 12 13
2 3
