SEA GATE 1 DG R2BF Manual

For sliding gates, swing gates, barriers and garage doors
Hide thumbs Also See for GATE 1 DG R2BF:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual, Manual

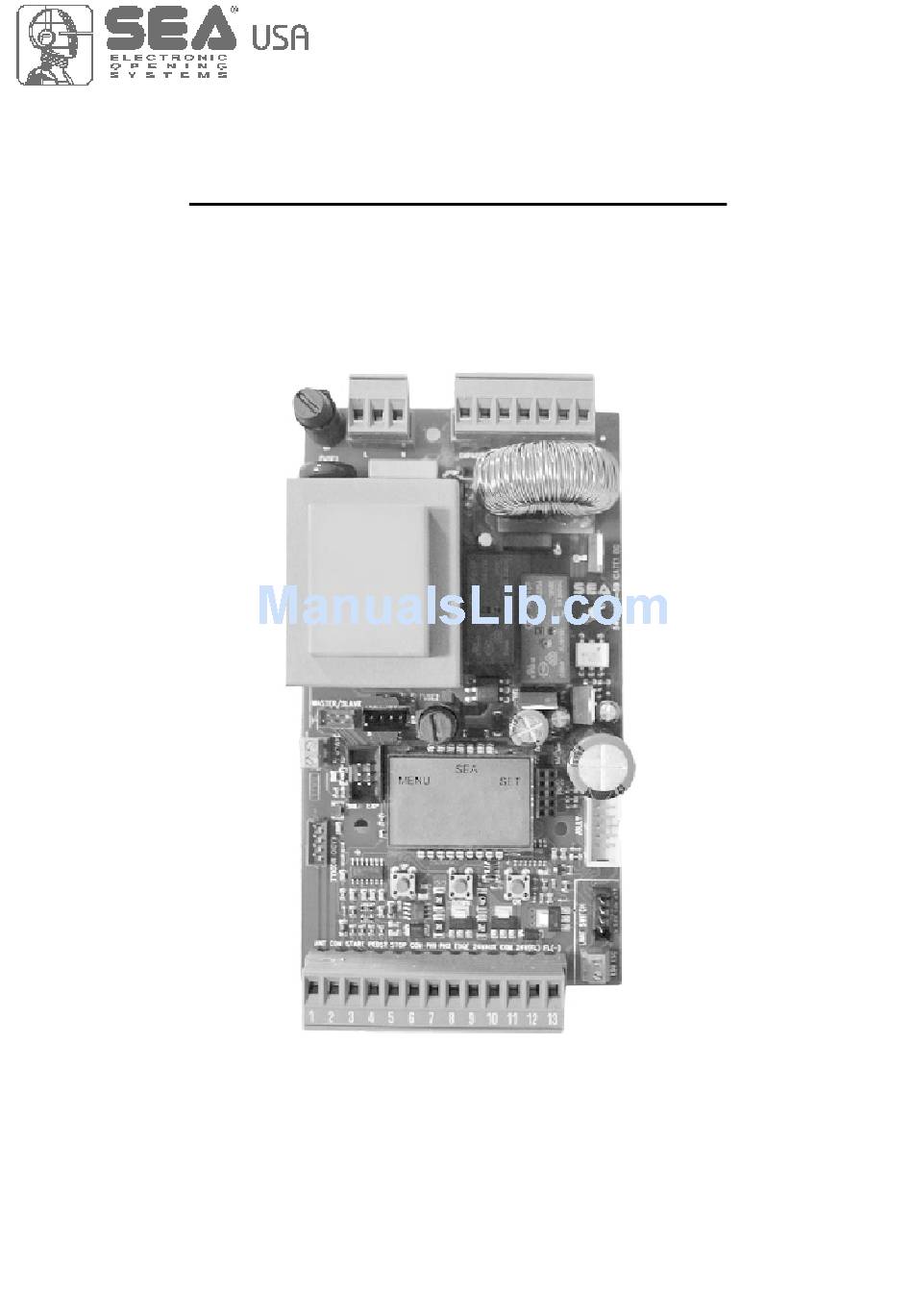

International registered trademark n. 2.777.971
GATE 1 DG R2BF
CONTROL UNIT FOR SLIDING GATES,
SWING GATES, BARRIERS AND GARAGE DOORS
SEA USA Inc.
10850 N.W. 21st unit 160 DORAL MIAMI
Florida (FL) 33172 USA
Tel.
:++1-305.594.1151 ++1-305.594.7325
-
Toll free:
800.689.4716
web site: www.sea-usa.com
e-mail: sales@sea-usa.com
67410179
Rev.09 - 11/2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GATE 1 DG R2BF and is the answer not in the manual?

Questions and answers

Related Manuals for SEA GATE 1 DG R2BF

Summary of Contents for SEA GATE 1 DG R2BF

  • Page 1 International registered trademark n. 2.777.971 GATE 1 DG R2BF CONTROL UNIT FOR SLIDING GATES, SWING GATES, BARRIERS AND GARAGE DOORS SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 USA Tel. :++1-305.594.1151 ++1-305.594.7325 Toll free: 800.689.4716 web site: www.sea-usa.com...
  • Page 2 International registered trademark n. 2.777.971 DETAILS General An appliance shall be provided with an instruction manual. The instruction manual shall give instructions for the installation, operation, and user maintenance of the appliance. The installation instructions shall specify the need for a grounding-type receptacle for connection to the supply and shall stress the importance of proper grounding.
  • Page 3 International registered trademark n. 2.777.971 g) The Stop and/or Reset button must be located in the line-of-sight of the gate. Activation of the reset control shall not cause the operator to start. h) A minimum of two (2) WARNING SIGNS shall be installed, one on each side of the gate where easily visible. i) For gate operators utilizing a non-contact sensor: 1) See instructions on the placement of non-contact sensors for each Type of application, 2) Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle, trips the sensor while the gate...
  • Page 4 International registered trademark n. 2.777.971 Changes to UL 325 for Gate Operators Starting on Jan. 12, 2016, new UL 325 changes take effect, bringing a series of new mandates for the gate operator industry. Here’s a quick guide to the key modifications. Entrapment-Protection Devices.

  • Page 5: Ul 325 Entrapment Protection Requirements

    International registered trademark n. 2.777.971 UL 325 ENTRAPMENT PROTECTION REQUIREMENTS This vehicular gate operator must be installed with at least two independent e n t r a p m e n t p r o t e c t i o n m e a n s a s s p e c i f i e d i n t h e t a b l e b e l o w . HORIZONTAL SLIDE AND SWING GATE OPERATOR GATE OPERATOR ENTRAPMENT PROTECTION TYPES Inherent (built into the operator) entrapment protection system...
  • Page 6 COMPONENTS TECHNICAL SPECIFICATIONS Control unit power supply: 230 Vac 50/60 Hz or 115Vac 50/60 Hz based to the used version Absorption in stand by: 30 mA Environment temperature : -4°F +176°F Specifications of external enclosure: 183 X 238 X 120 - Ip55 LE CARD JOLLY 3 JOLLY...
  • Page 7 CONNECTIONS RADIO MODULE RF FIX (CNS) 24V (Red) Limit switch Closing 1 (Yellow) 14 15 16 17 18 19 20 RF FIX Limit switch Opening 1 (Green) 24Vac LIGHT LIGHTN MCL MN MOP CAPACITOR Receiver Max 150 mA connector Common (White) (Available from hardware Limit switch Closing 1 (Yellow)
  • Page 8 PROGRAMMING FAST SELF-LEARNING “Input check menu" - - - - - - DOWN DOWN Fast self-learning START command by Start quick programming radio control You can start the quick programming by holding UP for 5 s in the “Input check You can store the START button of the menu", until the motor starts.

  • Page 9: Programming Buttons

    PROGRAMMING QUICK START PROGRAMMING BUTTONS MENU MENU LANGUAGE ITALIANO DOWN Skip this step if you do not want to program a transmitter OK to exit Press the Menu or press MENU MENU MENU MENU button of the PRESS the button of TRANSMITTERS START STORED...
  • Page 10 MENU FUNCTIONS TABLE GATE 1 DG R2BF MENU Description Default Set value Italiano Italian English English Français 1 - LANGUAGE French Italiano Español Spanish Dutch Dutch Start Start Partial opening Start Partial opening Start External module External module Stop Stop...
  • Page 11 MENU FUNCTIONS TABLE GATE 1 DG R2BF MENU Set value Description Default In pause start is not acceped 8 - START IN PAUSE In pause start is accepted 9 - PROGRAMMING Times learning start (See page 11) 10 - TEST START...

  • Page 12: Function Logic

    SELFLEARNING OPERATION TIME WITH AMPEROMETRIC SENSOR (For electromechanical motors only) The times learning can be done only on electromechanical gates, taking advantage of the automatic detection of the stops. Once the programming has been started just make sure that the gate executes the following cycle: CLOSING - OPENING - CLOSING.

  • Page 13: Special Menu

    PRESS AT THE SAME TIME FOR 5 SECONDS TO ENTER OR TO EXIT THE SPECIAL MENU DOWN SPECIAL MENU FUNCTIONS TABLE GATE 1 DG R2BF For entering into the special menu move on one of the menu and press the UP and DOWN buttons at the same time for 5 s.
  • Page 14 MENU SP Description Default Set value From OFF to 50% of Off 50 60 - CLOSING SLOWDOWN 1 the stroke Adjust the passage 100% between normal speed 63 - DECELERATION 100% and slowdown speed Acceleration ramp. 100% 64 - ACCELERATION Adjusts the motor start.

  • Page 15: Courtesy Light

    MENU SP Description Default Set value In cycle Courtesy light in cycle 88 - COURTESY LIGHT Courtesy light setting 1 240 from 1s to 4min. When setting this function the pedestrian input will be activated 89 - TRAFFIC LIGHT Off on to work on the auxiliary board RESERVATION SEM (traffic light management)
  • Page 16 MENU SP Description Default Set value Photo1 Fototest active only on Photo1 Photo2 Fototest active only on Photo2 Fototest active on Photo1 and Photo1-2 Photo2 Disabled 95 - FOTOTEST Fototest only on safety edge Edge Photo1 and Edge Fototest photo 1 and safety edge Fototest photo 2 and safety edge Photo2 and Edge Fototest photo 1, photo 2 and...
  • Page 17 MENU SP Default Set value Description Normal Normal N.C. contact Edge is active and protected by a 8k2 resistor Allows to connect n. 2 8K2 Double 8K2 protected edges 100 - EDGE1 Normal Edge works as a photocell Photo1 10K protected by a 10K resistor.
  • Page 18 If the password has been forgotten, the only way to unlock the control unit is to contact the SEA technical assistance, which will assess whether to provide the procedure to unlock the control unit or not.
  • Page 19 Photocell 1 Edge Photocell 2 DOWN MENU FUNCTION TABLE CHECK GATE 1 DG R2BF INPUTS To access the Menu for input check keep pressed OK for about 5 seconds. Description Description MENU The contact must be a N.O. Contact . When activating the related command on the display SET lights up, the input works.
  • Page 20 RADIO TRANSMITTER SELF LEARNING WITH RECEIVER ON BOARD OF CONTROL UNIT WARNING: Make the radio transmitters programming before you connect the antenna and insert the receiver into the special CMR connector (if available) with turned off control unit. With RF UNI and RF UNI PG module it will be possible to use both Coccinella Roll Plus transmitters and radio transmitters with fixed code.
  • Page 21 RADIO TRANSMITTER SELF LEARNING WITH RF FIX RECEIVER ON BOARD OF CONTROL UNIT WARNING: Make the radio transmitters programming before you connect the antenna and insert the receiver into the special CNS connector (if available) with turned off control unit. With the RF FIX module it will be possible to use only radio controls with fixed code.
  • Page 22 START - STOP - PARTIAL OPENING START - ANTENNA - PHOTOCELL Photocell 1 and Photocell 2 Connections Note: If the photocells are not connected, it is not necessary put a jumper between the clamps (6 and 7 and/ou 6 and 8 of the CN1 terminal) + = 24V (Accessories) 500 mA max COM = 0V...

  • Page 23: Power Supply Input

    ENCODER OR AMPEROMETRIC MANAGEMENT AMPEROMETRIC DEVICE FOR ELECTROMECHANICAL OPERATORS This control unit comes with an obstacle detection system working only on electromechanical operators allowing to have the reversing on obstacles and the automatic detection of the stops. Sensitivity adjustable from OFF to 99% inside the special menu. The more the percentage is high the more the obstacle detection will be difficult.
  • Page 24 10K PHOTOCELL - BUZZER - WARNING LAMP - SAFETY EDGE Example of two 10K Photocells 10K PHOTOCELL or DOUBLE 10K PHOTOCELL 9 and 11 connections Between clamps 9 and 11 on the terminal CN1 it is also possible to connect a 10K Photocell or two 10K Photocells .

  • Page 25: Master-Slave Function

    2) Once sure of the correct functioning connect the control unit MASTER to the control unit SLAVE through the special clamp (Code SEA 23001220). 3) Now set the control unit, which has to manage the commands and motor 1 (photocell, keyswitch, STOP, safety edge etc.) as MASTER and the other one which will move motor 2 as SLAVE.
  • Page 26 SAFETY LOOP CONNECTIONS DRAWING SHOWS HOW TO EVENTUALLY CONNECT THE MAGNETIC LOOP 1 2 3 4 5 6 7 8 9 10 11 12 13 C2 C2 C1 = CONTACT OPEN C2 = CONTACT CLOSED 12 = 24 V Safety exit loop (loop 1) C = 0 V Connecting scheme of loop detector 1 reader...

  • Page 27: Alarm Description

    THREE-PHASE MODULE CONNECTION Motor wiring connector for control unit (115V) (GATE 1 DG R2BF) Power supply connector 14 15 16 17 18 19 20 for control unit (115V) (GATE 1 DG R2BF) Three-phase Motor (115V~) N N F COM. OP. CL.

  • Page 28: Troubleshooting

    TROUBLE SHOOTING Advices Make sure all Safeties are turned ON Problem Found Possible Cause Solutions a) Check the connections or the jumpers on the connections of Operator doesn’t respond to a) Check the connected N.C. contacts the safety edge or of the stop and of the photocell if connected any START impulse b) Burnt fuse b) Replace the burnt fuse on the control unit...
  • Page 29 Advices Make sure all Safeties are turned ON Problem Found Possible Cause Solutions a) Check menu for encoder parameters "Encoder Par" shall be from a low value +/- 10 (gate completely closed) to "Encoder a) ENCODER is not working properly if It's tot"...
  • Page 30 Materials handling must be made with appropriate vehicles.. WARRANTY LIMITS For the guarantee see the sales conditions on the official SEA price list. SEA reserves the right to make any required modification or change to the products and/or to this manual without any advanced notice obligation.
  • Page 31 PAYMENT: Method of payments and terms are notified by SEA and displayed on the commercial invoice. DELIVERY: The delivery time on the invoice is not binding and represents an estimated delivery. Shipments costs will be charged to the buyer and SEA is not responsible for delays and/or damages occurred to the products during shipment.
  • Page 32 International registered trademark n. 2.777.971 SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 USA Tel. ++1-305.594.1151 ++1-305.594.7325 Toll free: 800.689.4716 web site: www.sea-usa.com e-mail: sales@sea-usa.com...
