SEA GATE 1 DG R2BF Manual

Control unit for sliding gates, swing gates, barriers and garage doors
Hide thumbs Also See for GATE 1 DG R2BF:
Table of Contents

Advertisement

Quick Links

International registered trademark n. 2.777.971

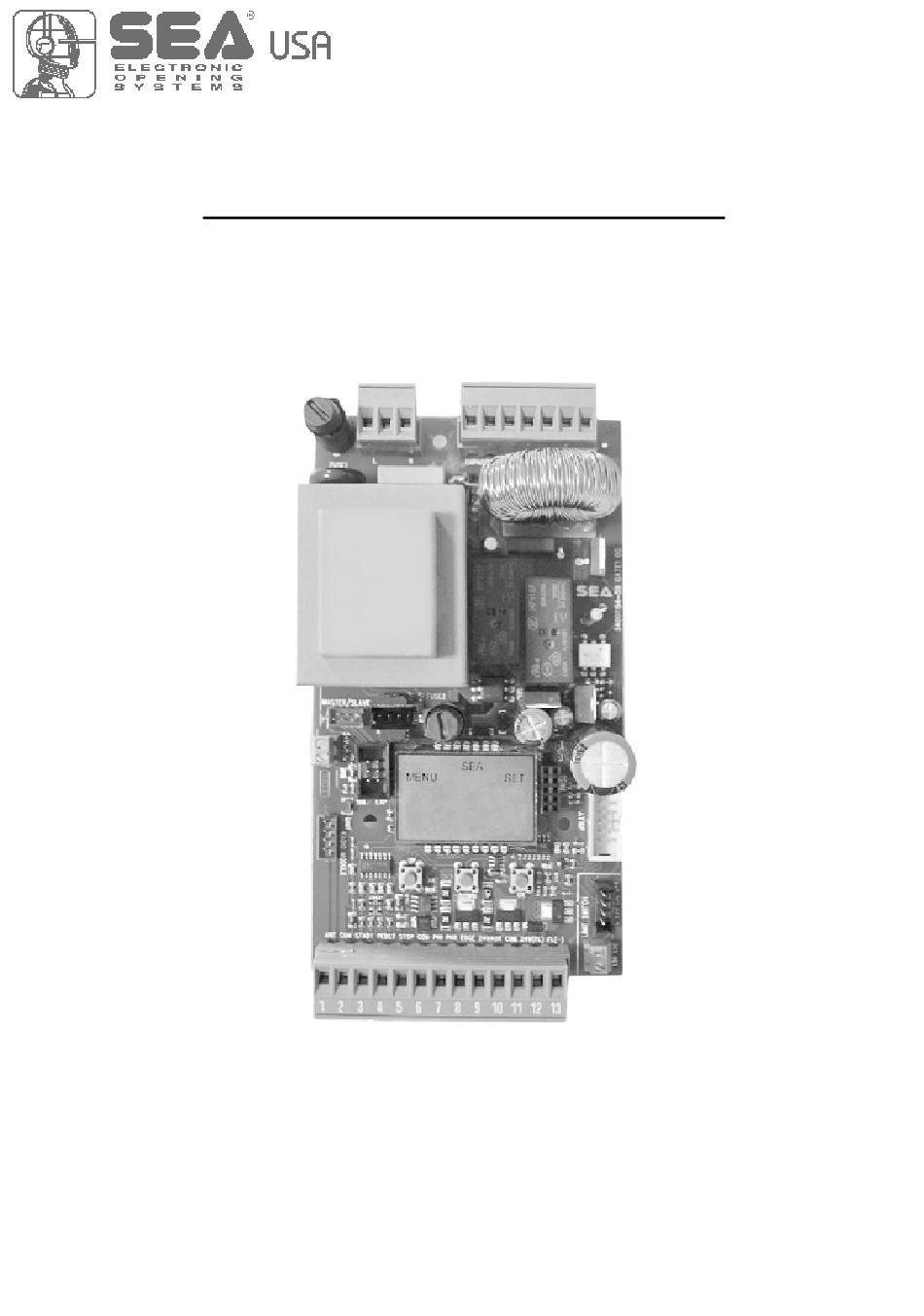

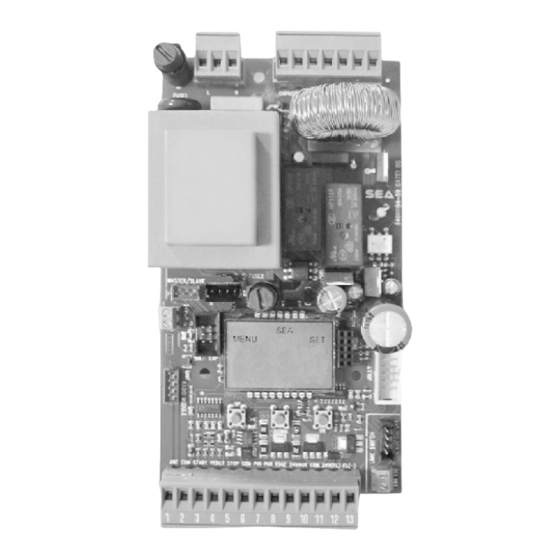

GATE 1 DG R2BF
CONTROL UNIT FOR SLIDING GATES,
SWING GATES, BARRIERS AND GARAGE DOORS
SEA USA Inc.
10850 N.W. 21st unit 160 DORAL MIAMI
Florida (FL) 33172 USA
Tel.
:++1-305.594.1151 ++1-305.594.7325
-
Toll free:
800.689.4716
web site: www.sea-usa.com
e-mail: sales@sea-usa.com
67410179
Rev.11 - 10/2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GATE 1 DG R2BF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SEA GATE 1 DG R2BF

Summary of Contents for SEA GATE 1 DG R2BF

  • Page 1 International registered trademark n. 2.777.971 GATE 1 DG R2BF CONTROL UNIT FOR SLIDING GATES, SWING GATES, BARRIERS AND GARAGE DOORS SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 USA Tel. :++1-305.594.1151 ++1-305.594.7325 Toll free: 800.689.4716 web site: www.sea-usa.com...

  • Page 2: Important Safety Information

    International registered trademark n. 2.777.971 IMPORTANT SAFETY INFORMATION GENERAL SAFETY PRECAUTIONS The following precautions are an integral and essential part of the product and must be supplied to the user Read them carefully as they contain important indications for the safe installation, use and maintenance. 1.

  • Page 3: General Safety Information

    International registered trademark n. 2.777.971 GENERAL SAFETY INFORMATION An appliance shall be provided with an instruction manual. The instruction manual shall give instructions for the installation, operation, and user maintenance of the appliance. The installation instructions shall specify the need for a grounding-type receptacle for connection to the supply and shall stress the importance of proper grounding.
  • Page 4 The installer shall follow the provided instructions thoroughly. SEA products must only be used to automate doors, gates and wings. Any initiative taken without SEA USA Inc. explicit authorization will preserve the manufacturer from whatsoever responsibility.
  • Page 5 International registered trademark n. 2.777.971 5. The End of Type E. Type E (audible alarm) devices can no longer be used for entrapment protection. This change was made because the Type E device is really a warning device, not an entrapment-protection device. Also, all gate operator classes are now required to have an audio alarm that sounds when two successive obstructions are encountered via a contact-type system.
  • Page 6 COMPONENTS TECHNICAL SPECIFICATIONS Control unit power supply: 230 Vac 50/60 Hz or 115Vac 50/60 Hz Absorption in stand by: 30 mA Environment temperature : - 4°F +176°F Specifications of external enclosure: 183 X 238 X 120 - Ip55 LE CARD JOLLY RECEIVER RX JOLLY 3...
  • Page 7 CONNECTIONS RADIO MODULE RF FIX (CNS) 24V (Red) Limit switch Closing 1 (Yellow) RF FIX 14 15 16 17 18 19 20 Receiver Limit switch Opening 1 (Green) 24Vac LIGHT LIGHTN MCL MN MOP CAPACITOR connector Max 150 mA Common (White) (Available from hardware revision R2)
  • Page 8 PROGRAMMING FAST SELF-LEARNING “Input check menu" - - - - - - DOWN DOWN Start quick programming Fast self-learning START command by radio control You can start the quick programming by holding UP for 5 s in the “Input check You can store the START button of the remote control while pressing DOWN for 5 s menu", until the motor starts.

  • Page 9: Programming Quick Start

    PROGRAMMING PROGRAMMING BUTTONS QUICK START DOWN MENU MENU LANGUAGE ITALIANO Skip this step if you do not want to program a transmitter OK to exit Press the Menu or press MENU MENU MENU button of the MENU PRESS the button of TRANSMITTERS STORED START...
  • Page 10 WORKING TIMES SELF LEARNING The control unit is pre-set with the default settings, to start the control unit with the DEFAULT settings just keep pressed the UP and DOWN buttons at the same time power supplying the control unit the display shows the message “Init”. The DEFAULT settings are shown in the Menues table. LEARNING WITH LIMIT SWITCH (WITH OR WITHOUT ENCODER) When limit switches are mounted, the gate executes automatically the following cycle: CLOSING - OPENING - CLOSING.

  • Page 11: Function Logic

    If the password has been forgotten, the only way to unlock the control unit is to contact the SEA technical assistance, which will assess whether to provide the procedure to unlock the control unit or not.
  • Page 12 GATE 1 DG R2BF MENU FUNCTIONS TABLE MENU DESCRIPTION DEFAULT VALUE Italiano Italian English English 1 LANGUAGE Français French English Español Spanish Dutch Dutch Start Start Partial opening Partial opening External module External module Stop Stop Start Storing of a command for unlocking...
  • Page 13 MENU DESCRIPTION DEFAULT VALUE In On reverses the opening with the closing and/or vice-versa (Note: 5 REVERSE MOTOR both motors and limit-swiches are reversed) Automatic Automatic Open-stop-close-stop-open Step by step type 1 Open-stop-close-open Step by step type 2 Automati 6 LOGIC 2 button Two buttons Safety...

  • Page 14: Special Menu

    PRESS AT THE SAME TIME FOR 5 SECONDS TO ENTER OR TO EXIT THE SPECIAL MENU DO W N SPECIAL MENU FUNCTIONS TABLE GATE 1 DG R2BF For entering into the special menu move on one of the menu and press the UP and DOWN buttons at the same time for 5 s.
  • Page 15 MENU SP DESCRIPTION DEFAULT VALUE Adjusts the amperometric sensiti- 10% (Fast intervention) vity in slowdown. Active only if the 99% (Slow intervention) motors are electromechanical SLOWDOWN SENSITIVITY In case of linear potentiometer, this MOTOR parameter allows With potentiometer inversion time in slow-down from 0 to 5 seconds (= 99%) Adjusts threshold...
  • Page 16 MENU SP DESCRIPTION DEFAULT VALUE Time Before opening, the motor starts in Pushing Off - 3 sec closing for the set up time, in order Stroke to simplify the lock release 76 PUSHING STROKE Repeat If On, the lock will release as before Lock Off –...
  • Page 17 MENU SP DESCRIPTION DEFAULT VALUE Pause in partial opening same as in = Start total opening 91 PARTIAL PAUSE = start Disabled Setting from 1second to 4 minutes Turn the selected input into an input 92 TIMER On photo2 to which connecting an external On partial entry clock Disabled...
  • Page 18 MENU SP DESCRIPTION DEFAULT VALUE Photo 1 Self-test active only on photo 1 Photo 2 Self-test active only on photo 2 Photo 1 and 2 Self-test active on photo 1 and 2 Disabled Edge Self-test active only on security edge 95 FOTOTEST Self-test active on photocell 1 and Photo 1 and Edge...
  • Page 19 MENU SP DESCRIPTION DEFAULT VALUE If the photocell is occupied, it reverses the movement in closing; Closing during the pause, it prevents the reclosing If active the photocell blocks the movement as long as it is busy; Opening and closing when released, opening...
  • Page 20 MENU SP DESCRIPTION DEFAULT VALUE Normal Normal N.C. contact Edge is active and protected by a 8K2 resistor Allows connect 8K2 Double 100 SECURITY EDGE 1 protected edges Normal Edge works as a photocell protected Photo 1 10K by a 10K resistor It is possible to connect two pho- Photo 1 10K Double tocells protected by a 10K resistor...
  • Page 21 MENU SP DESCRIPTION DEFAULT VALUE Allows the entering of a password 112 PASSWORD - - - - blocking the control unit parameters - - - - modification Disabled Without main power, if batteries are lower than 22V the gate opens and Ultima apertura stay opened.
  • Page 22 Photocell 1 Edge DOWN Photocell 2 MENU FUNCTION TABLE CHECK GATE 1 DG R2BF INPUTS To access the Menu for input check keep pressed OK for about 5 seconds. Description MENU Description The contact must be a N.O. Contact . When activating the related...
  • Page 23 RADIO TRANSMITTER SELF LEARNING WITH RECEIVER ON BOARD OF CONTROL UNIT WARNING: Make the radio transmitters programming before you connect the antenna and insert the receiver into the special CMR connector (if available) with turned off control unit. With RF UNI and RF UNI PG module it will be possible to use both Coccinella Roll Plus transmitters and radio transmitters with fixed code.
  • Page 24 RADIO TRANSMITTER SELF LEARNING WITH RF FIX RECEIVER ON BOARD OF CONTROL UNIT WARNING: Make the radio transmitters programming before you connect the antenna and insert the receiver into the special CNS connector (if available) with turned off control unit. With the RF FIX module it will be possible to use only radio controls with fixed code.
  • Page 25 START - STOP - PARTIAL OPENING - ANTENNA - PHOTOCELL Photocell 1 and Photocell 2 Connections + = 24V Accessories COM = 0V PH1 = Photocell contact 1 PH2 = Photocell contact 2 Note 1: If the photocells are not connected, it is not necessary put a jumper between 1 2 3 4 5 6 7 8 the clamps (6 and 7 and/ou 6 and 8 of the CN1 terminal) Note 2: For self-test connect the TX to the 24VAux clamp and activate the Self-test function...
  • Page 26 ENCODER OR AMPEROMETRIC MANAGEMENT AMPEROMETRIC DEVICE FOR ELECTRO MECHANICAL OPERATORS This control unit comes with an obstacle detection system working only on ELECTRO MECHANICAL operators allowing to have the reversing on obstacles and the automatic detection of the stops. Sensitivity adjustable from OFF to 99% inside the special menu.
  • Page 27 10K PHOTOCELL - BUZZER - WARNING LAMP - SAFETY EDGE Example of two 10K Photocells 10K PHOTOCELL or DOUBLE 10K PHOTOCELL 9 and 11 connections Between clamps 9 and 11 on the terminal CN1 it is also possible to connect a 10K Photocell or two 10K Photocells .

  • Page 28: Power Supply Input

    THREE-PHASE MODULE CONNECTION Power supply connector for control Motor wiring connector for control unit (230V) unit (230V) 23001158 23001158 (GATE 1 DG R2BF) 14 15 16 17 18 19 20 (GATE 1 DG R2BF) Three-phase Motor (380V~) U V W N N F COM.

  • Page 29: Master-Slave Function

    2) Once sure of the correct functioning connect the control unit MASTER to the control unit SLAVE through the special clamp (Code SEA 23001220). 3) Now set the control unit, which has to manage the commands and motor 1 (photocell, keyswitch, STOP, safety edge etc.) as MASTER and the other one which will move motor 2 as SLAVE.
  • Page 30 SAFETY LOOP CONNECTIONS DRAWING SHOWS HOW TO EVENTUALLY CONNECT T H E M A G N E T I C L O O P 1 2 3 4 5 6 7 8 9 10 11 12 13 C1 = CONTACT OPEN C2 = CONTACT CLOSED C2 C2 12 = 24 V...

  • Page 31: Alarm Description

    ALARM DESCRIPTION Kind of alarm Solutions Signals Make sure there are no short circuits on the motor or on the Motor current failure FAILURE MOTOR control unit AUX output Make sure there are no short circuits on the wiring or on the FAILURE24 voltage failure control unit and no overloads...

  • Page 32: Troubleshooting

    TROUBLE SHOOTING Advices Make sure all Safeties are turned ON Problem Found Possible Cause Solutions a) Check the connections or the jumpers on the connections of Operator doesn’t respond to a) Check the connected N.C. contacts the safety edge or of the stop and of the photocell if connected any START impulse b) Burnt fuse b) Replace the burnt fuse on the control unit...
  • Page 33 Advices Make sure all Safeties are turned ON Problem Found Possible Cause Solutions a) Check menu for encoder parameters "Encoder Par" shall be from a low value +/- 10 (gate completely closed) to "Encoder a) ENCODER is not working properly if It's tot"...
  • Page 34 Materials handling must be made with appropriate vehicles.. WARRANTY LIMITS For the guarantee see the sales conditions on the official SEA price list. SEA reserves the right to make any required modification or change to the products and/or to this manual without any advanced notice obligation.
  • Page 35 PAYMENT: Method of payments and terms are notified by SEA and displayed on the commercial invoice. DELIVERY: The delivery time on the invoice is not binding and represents an estimated delivery. Shipments costs will be charged to the buyer and SEA is not responsible for delays and/or damages occurred to the products during shipment.
  • Page 36 International registered trademark n. 2.777.971 SEA USA Inc. 10850 N.W. 21st unit 160 DORAL MIAMI Florida (FL) 33172 USA Phone:++1-305.594.1151 Fax: ++1-305.594.7325 Toll Free: 800.689.4716 web site: www.sea-usa.com e-mail: sales@sea-usa.com...
