MODEL FD5000 SERIES
INSTRUCTION MANUAL
Caution
!
(1) Do not apply a voltage or current exceeding the maximum allowable
value; otherwise, it may damage the equipment.
(2) Use a power voltage within the operation range; otherwise, it may
result in a fire, electrical shock, or malfunction.
(3) The contents of this manual are subject to change without notice.
(4) Although the contents of this manual have been prepared with extra
care, if you have any questions, or find errors or missing
information, contact the sales agent from which you purchased the
product or Fuji Electric Instruments Co.,Ltd.
(5) After reading this manual thoroughly, keep it in a convenient place
for future reference.
1. Before Using the Product
Thank you for purchasing the FD5000 series. This manual should be passed
on to the person who operates the product. Examine the product for dam-
age caused by transportation or any other defects. If you find any damage or
defects, contact the sales agent from which you purchased the product or
Fuji Electric Instruments Co., Ltd.
1.1 Model Codes

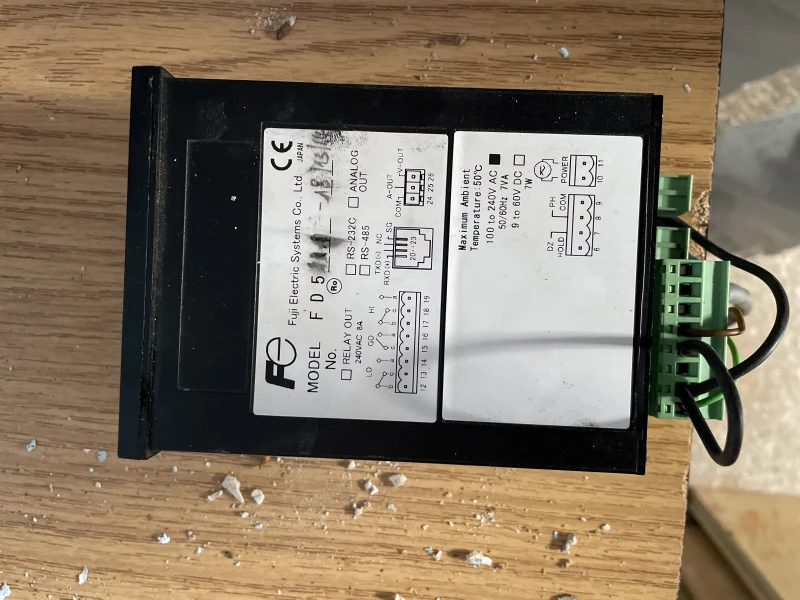

The model lineup of the FD5000 series is shown below. Check that the
model code and specifications of your product match those you specified
when ordering.
F D 5 X X X - X X
Power unit
1: 100 to 240 V AC ± 10%
2: 9 to 60 V DC
Display unit
1: Single display
2: Multi display
Output unit
0: None
1: Comparison
2: Analog
3: RS-232C
4: RS-485
5: Comparison and analog
6: Comparison, analog, and RS-232C
7: Comparison, analog, and RS-485
Fuji Electric Instruments Co.,Ltd
D 5 X X X - X X
Input unit
01: DC voltage measuring unit (range 11: ± 99.99 mV)
02: DC voltage measuring unit
(range 12: ± 999.9 mV ; range 13: ± 9.999 V)
(range 14: ± 99.99 V ; range 15: ± 600 V)
03: DC current measuring unit
(range 23: ± 9.999 mA; range 24: ± 99.99 mA)
(range 25: ± 999.9 mA)
04: AC voltage measuring unit (average rms)
(range 11: 99.99 mV; range 12: 999.9 mV)
(range 13: 9.999 V)
05: AC voltage measuring unit (average rms)
(range 14: 99.99 V; range 15: 600 V)
06: AC voltage measuring unit (true rms)
(range 11: 99.99 mV; range 12: 999.9 mV)
(range 13: 9.999 V)
07: AC voltage measuring unit (true rms)
(range 14: 99.99 V; range 15: 600 V)
08: AC current measuring unit (average rms)
(range 23: 9.999 mA; range 24: 99.99 mA)
(range 25: 999.9 mA)
09: AC current measuring unit (average rms)
(range 26: 5 A)
10: AC current measuring unit (true rms)
(range 23: 9.999 mA; range 24: 99.99 mA)
(range 25: 999.9 mA)
11: AC current measuring unit (true rms)
(range 26: 5 A)
12: Resistance measuring unit
13: Temperature measuring unit (TC)
14: Temperature measuring unit (RTD)
15: Frequency measuring unit
(inputs: open collector, logic, and magnet)
16: Frequency measuring unit (input: 50 to 500 Vrms)
17: Strain gauze input unit (load cell)
18: Process signal measuring unit
(4 to 20 mA or 1 to 5 V)
2. Mounting the Product

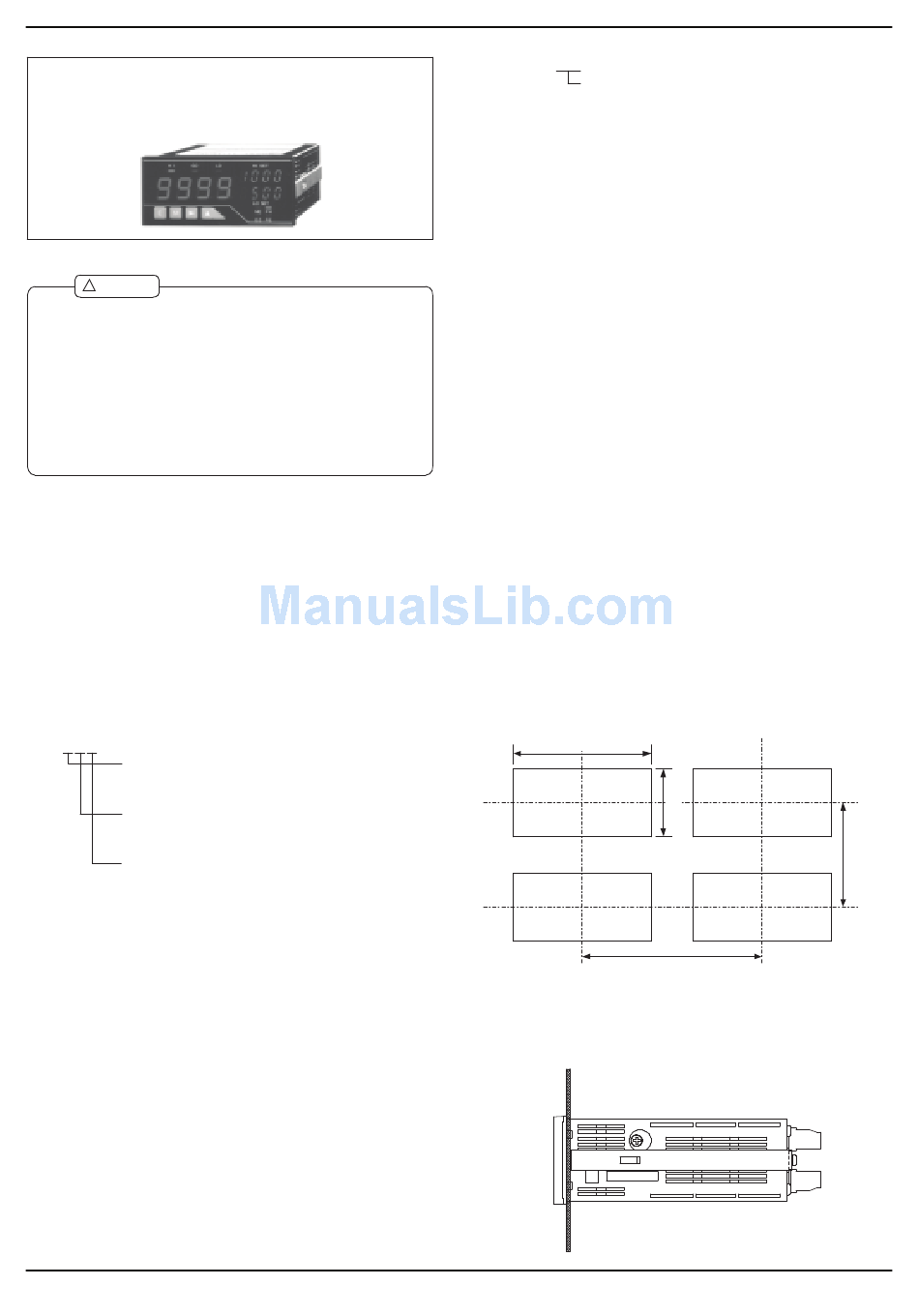

2.1 Dimensions for Cutting Panel
Cut the panel for mounting according to the following dimensions.
+0.8
92
-0
120 mm min.
2.2 Mounting the Product to the Panel
To mount the FD5000 to the panel, remove its fittings and insert it through
the hole in the front of the panel. From the back of the panel, fix the
product to the panel with the fittings.
45
-0 +0.6
1/12
70 mm
min.
