Otto Bock Skippi Instructions For Use Manual
Hide thumbs
Also See for Skippi:
- Instructions for use manual (106 pages) ,
- Service manual (72 pages) ,
- User instructions (55 pages)
Related Manuals for Otto Bock Skippi
Summary of Contents for Otto Bock Skippi

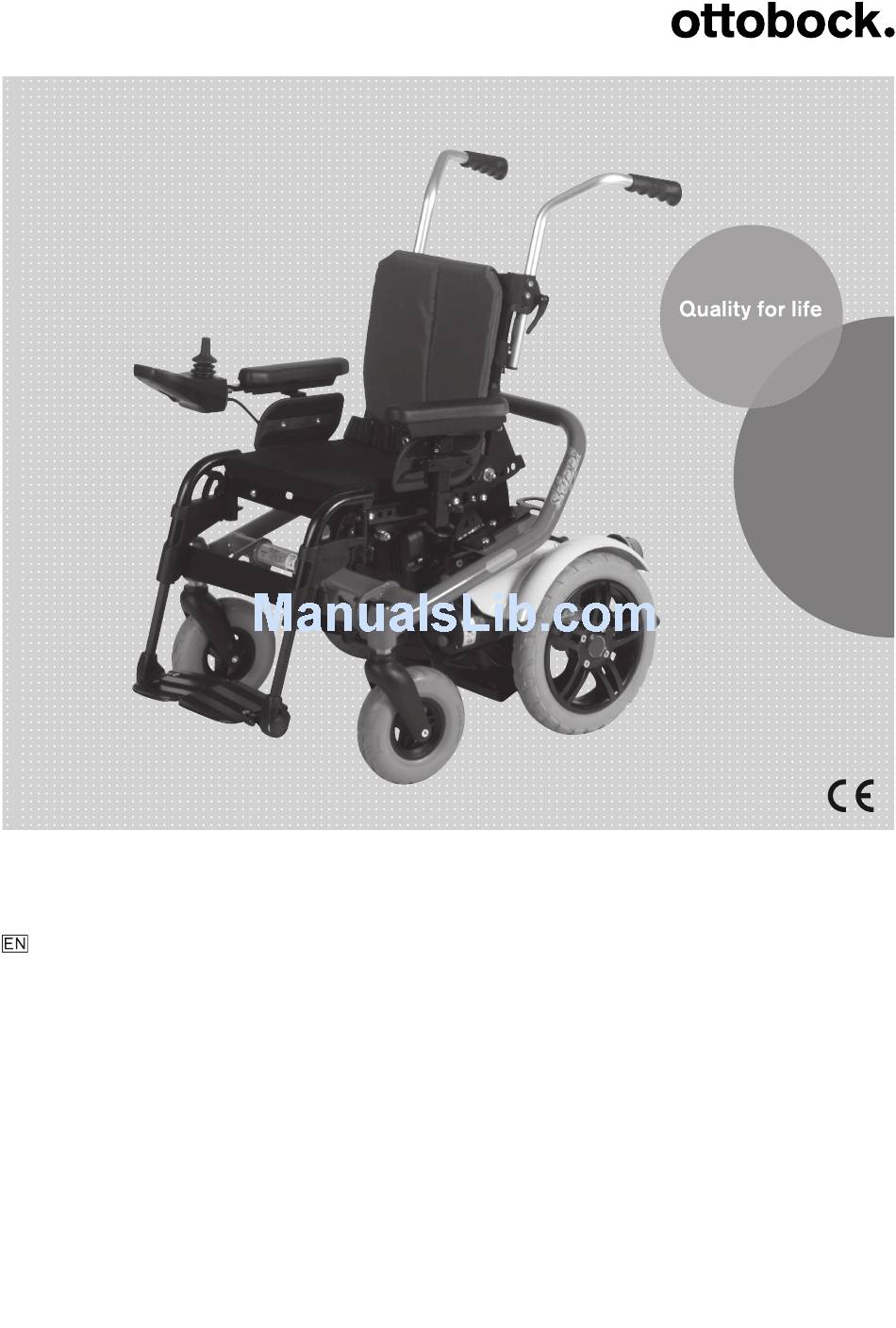

- Page 1 Skippi Instructions for use ....................
- Page 2 Electronic drive-away lock* [ ] Function enabled [ ] Function disabled If enabled, the function is activated by pressing the mode button on the control panel. The function is deactivated with the joystick. *See the section "Use" for more information. Skippi...
-
Page 3: Table Of Contents
Safety instructions ..........................7.3.2 Changing control unit parameters ....................................................... Circuit breaker ........................... Side panels ............................8.2.1 Removing/installing the side panels ....................... 8.2.2 Adjusting the Side Panels ........................Legrests ............................8.3.1 Removing/installing the legrests ......................8.3.2 Adjusting the legrests .......................... Skippi... - Page 4 ........................... 8.15.3 Push handles ............................8.15.4 Overview of other options ........................8.16 Use in vehicles for transporting persons with reduced mobility ..............8.16.1 Required accessories .......................... Using the product in the vehicle ...................... Restrictions for use ..........................Skippi...
- Page 5 CE Conformity ............................ 11.3 Warranty ............................11.4 Service Life ............................11.5 Trademarks ............................Technical data ..............................Appendices ................................ 13.1 Threshold values for wheelchairs transportable by train ................13.2 Required Tools ........................... 13.3 Torque values of the screw connections ....................Skippi...
-
Page 6: Foreword
The operational safety of the wheelchair can only be ensured if it is used properly in accordance with the informa tion contained in these instructions for use. The user is ultimately responsible for accident-free operation. Skippi... -
Page 7: Indications
Modular design that allows the power wheelchair to be equipped with additional modules and installed equip ment in addition to the main components, such as various power seat functions (see Page 39) or an attendant control (see Page 44). • Serviceability due to easy, straightforward access to all components. Skippi... -
Page 8: Product Overview
Product description 3.2 Product Overview Push handle Legrest Backrest Seat cushion Side panel with armrest Control panel with joystick Drive wheel Plug with battery cable Battery (battery pack) Anti-tipper / frame protection rollers Caster wheel Skippi... -
Page 9: Safety
► If the service life is reached, the user or a responsible attendant should contact the qualified personnel who fitted the product or the manufacturer's servicing department (see inside rear cover or back page for address). Here the user can obtain information about known risks and the current options for refurbishing the product. Skippi... -
Page 10: Effects Of Electromagnetic Interference On The Product And On The User
EMI problems to your powered wheelchair. Warnings regarding effects of electromagnetic interference INFORMATION The warnings listed below are recommended to prevent possible interference with the control system of the powered wheelchair. Skippi... -
Page 11: Further Information
The serial number required for enquiries and orders can be found on the nameplate. For explanations of the nameplate, see the section "Nameplate" (see Page 12). 4.6 Nameplate and warning labels 4.6.1 Signage on the product The warning signs and nameplates are attached at the following mounting points to the power wheelchair: Skippi... -
Page 12: Nameplate
XXX = sequential production number ** YYYY = year of manufacture; MM = month of manufacture; DD = day of manufacture 4.6.3 Warning labels Label Meaning Engage the locking bar before use. Observe the information in the instructions for use. CLOSE Skippi... -
Page 13: Delivery
Maintain sufficient clearance from sources of heat. If the product is parked for an extended period of time or the tyres overheat (e.g. in the vicinity of radiators or in case of exposure to strong sunlight behind glass), the tyres may become permanently deformed. • Fill pneumatic tyres with slight overpressure. Skippi... -
Page 14: Preparation For Use
• Installing the fuse (see Page 19) • Installing the battery pack (see Page 36) • Charging the battery (see Page 38) • Folding up the backrest (see Page 22) • Installing the side panels: see Page 20 • Installing the legrests: see Page 21 Skippi... -
Page 15: Handing Over The Product
WARNING Incorrect settings Risk of falling, tipping over or improper user posture due to incorrect settings ► Adjustments may only be carried out by qualified personnel instructed by the manufacturer. ► Check for safe function before delivering the product. Skippi... -
Page 16: Adjusting The Standard Seat
Falling of the user out of the seat due to user error ► The user must not sit in the wheelchair during seat angle adjustments. If necessary, the seat angle can be adjusted in 3 increments (-6°, +3° and +12°). Skippi... -
Page 17: Adjusting The Legrests
7.2.2.3 Adjusting the Back Upholstery INFORMATION A well adjusted backrest provides lasting comfort and reduces the risk of secondary damage and pressure zones. INFORMATION Ensure that the user's pelvis is positioned as far back in the seat as possible, i.e. between the backrest tubes. Skippi... -
Page 18: Adjusting The Belt Length
► After configuration/programming is complete, the user must test the driving characteristics of the product under the supervision of the qualified personnel. 7.2.4.1 Wheelchair control options If necessary, the programming of the wheelchair control unit can be adjusted to the specific user requirements. Skippi... -
Page 19: Attendant Control
Note: The fuse typically comes installed in the dedicated fuse holder when the wheelchair is handed over to the user. Before the power wheelchair can be switched on, the fuses may have to be inserted into the fuse holders provided for the purpose. They are located on the underside of the battery packs (see fig. 8). Skippi... -
Page 20: Side Panels
1) Insert the side panel into the side panel holder. 2) Re-tighten the wing screw on the side panel holder (see fig. 9). 8.2.2 Adjusting the Side Panels The height and depth of the armrests can be adapted to the requirements of the user. Skippi... -
Page 21: Legrests
► Do not reach into the danger area with your fingers when folding the legrest or footplates up or down. ► Never step on the footplates when getting in and out. ► Note projecting edges. INFORMATION For detaching/attaching the mechanically elevating legrests: see Page 43. Skippi... -
Page 22: Adjusting The Legrests
► Do not reach into the danger area with your fingers when folding the backrest up or down. The backrest provides pressure redistribution and support for the upper body. 8.4.1 Folding the backrest up/down The wheelchair may be delivered with the backrest folded down. It has to be folded up and secured prior to use. Skippi... -
Page 23: Adjusting The Back Angle
► Always place the seat in a horizontal position. ► Note that the armrests are not capable of bearing full body weight, and therefore must not be used for getting into or out of the wheelchair. ► Always put on a lap belt when driving. Skippi... -
Page 24: Lap Belt
Small length adjustments of the belt by the user or an attendant (e.g. for clothing of different thickness) are pos sible. The belt length can be adjusted on both sides. Excess belt length is taken up by the plastic slider. Skippi... -
Page 25: Use
► Under no circumstances may the belt system be used as part of a personal restraint system for transportation in a vehicle for transporting persons with reduced mobility. ► Note that the belt system is only intended as additional stabilisation for the user sitting in the product. Skippi... -
Page 26: Control Unit
The control panel consists of a button section, LCD screen and joystick. A charging receptacle is located on the underside. The control panel is used to switch the power wheelchair on and off, enter driving commands and display the cur rent status of certain functions and components. Skippi... -
Page 27: Buttons And Display Functions
The LCD screen is the communication interface between the user and the control unit. It indicates the selected speed level, the battery charge level and the status of power options, as well as warnings and faults. All display symbols are displayed while powering up. Skippi... - Page 28 The charging process is indicated by the battery segments lighting up one after the other. When the battery is charging, the driving function is blocked. Battery indicator on the control panel Display Information Battery charged (right: selected speed level) Skippi...
-
Page 29: Driving Functions
Risk of collisions with other traffic participants due to lack of lighting ► Wear bright clothing or clothing with reflectors. ► Use the lights on the wheelchair. ► If present: Ensure that the reflectors on the rear marker plate on the product are clearly visible. Skippi... - Page 30 CAUTION Failure to observe care instructions Soreness due to user error ► No seat can completely eliminate sitting pressure or possible soreness. ► When using the seat, always ensure good skin care and regular pressure relief. Skippi...
-
Page 31: Driving Notes
(wheelchair weight + user weight + payload) as well as the ground condi tions, exterior temperature, battery voltage and driving style of the user. In individual cases, the continuous climbing ability can be significantly lower than the value specified. Skippi... -
Page 32: Switching On And Off
• The power wheelchair brakes automatically and comes to a stop if it is turned off with the [On/Off] button while being driven. Skippi... -
Page 33: Selecting The Speed Levels
The maximum speed at full deflection of the joystick depends on the selected speed level. • Releasing the joystick automatically activates the brake function, bringing the power wheelchair to a halt. The mechanical brakes are activated automatically when the power wheelchair comes to a stop so that it cannot roll. Skippi... -
Page 34: Range
→ The battery indicator and speed level are shown on the LCD screen. → The drive-away lock is deactivated and driving is enabled. Troubleshooting The drive-away lock remains active if the joystick is not moved correctly. 1) Turn the control unit off in order to deactivate the drive-away lock again. Skippi... -
Page 35: Adjusting The Driving Characteristics
→ A warning will appear on the control panel when the joystick is deflected (see below). Enabling/activating the brake 1) If needed: Turn the control unit off. 2) Push the brake release lever up (see fig. 23, see arrow). 3) Switch on the control unit. Skippi... -
Page 36: Batteries/Charging Process
In doing so, ensure that the red arrows on the bat tery packs point in the driving direction and that the plug contacts engage with the battery contacts. 2) Fold the locking bar back to prevent the battery packs from falling out (see fig. 25). Skippi... -
Page 37: Battery Charging Information
► Switch the control unit off during the charging process so that all of the charging current is fed into the bat tery. ► Avoid dust, dirt and moisture. ► Only clean the battery charger with a dry cloth. The battery charger is designed for maintenance-free and low-maintenance batteries. Skippi... -
Page 38: Charging The Battery
► The seat and backrest upholstery as well as padding fulfil the requirements for flame resistance according to the norms ISO 8191-2 or DIN EN 1021-2. However, they may still ignite if fire is handled improperly or negli gently. ► Keep away from all ignition sources, especially lit cigarettes. Skippi... -
Page 39: Headrest
► To avoid uncontrolled driving movements, ensure that the control unit is always in "Power seat functions" mode before using the power seat functions. ► To avoid hazardous situations, note the correct deflection direction of the joystick (see Page 42). Skippi... -
Page 40: Power Seat Height Adjustment
Only use the power wheelchair with the seat height adjustment in its lowest position until the fault is rectified. NOTICE Risk of transportation damage Damage to the product through user error ► Always lower the seat height adjustment feature fully for loading or transportation. Skippi... -
Page 41: Power Seat Tilt
20°, for example to relieve pressure. The seat can be tilted back continuously to the spe cified angle. The power wheelchair has an integrated feature that shifts the centre of gravity and serves to improve stabil ity against tipping. Skippi... -
Page 42: Combined Seat Height Adjustment/Seat Tilt
LCD screen is lit. 8.12.7 Joystick functions The following power seat functions can be controlled with the joystick: Display Function Joystick movement Power seat height adjustment Forward: Seat surface moves up Back: Seat surface moves down Skippi... -
Page 43: Manual Seat Functions
8.13.3 Mechanically elevating footrests INFORMATION ► Please also observe the safety instructions in the section "Manual seat functions": see Page 43. The mechanically elevating footrests let the user change the angle independently to prevent a constant pressure load or to provide anti-shock support. Skippi... -
Page 44: Control Unit Accessories
[Charge level] LED display [Mode] LED indicator [Mode] button [Selected power seat function] LED indicator Joystick The attendant uses the joystick to control the speed and driving direction. When a seat option is activated, the joy stick operates this seat option. Skippi... - Page 45 LCD screen (see the section "Power seat functions" > "Joystick and display functions"). The power seat functions are accessed by depressing of the "M" button for approx. 2 seconds. The currently selected seat function is indicated by the following LEDs: Skippi...
-
Page 46: Mid-Tray Control
Positioning of the enAble40 control panel anywhere on the surface of a swing-away tray • Integration into the tray surface • Implementation in custom fabrication Detailed information about the mid-tray control and its operation is provided by the qualified personnel. Skippi... -
Page 47: Additional Options
By default, the control panel is mounted on the side specified in the order. It can also be mounted on the other side of the power wheelchair later on if the user so desires. Please contact the qualified personnel who delivered the product to you. Skippi... -
Page 48: Lighting
The rear lights encompass 2 LED rear lamps with integ rated direction indicators. 8.15.2.2 Lighting for footpaths This lighting makes driving on footpaths easier during hours of darkness. Power wheelchairs with this equipment are not permitted for use in road traffic. Skippi... -
Page 49: Push Handles
Control panel safety bar: Metal bar for impact protection • Bumper bar • Tray • Manual horn • Pennant • Puncture-proof tyres: Solid rubber tyres • Tool kit These and other optional add-on components are included in the order form and in the wheelchair accessories catalogue. Skippi... -
Page 50: Use In Vehicles For Transporting Persons With Reduced Mobility
To use the power wheelchair as a seat in a vehicle for transporting persons with reduced mobility, additional options have to be mounted (Skippi without seat height adjustment: 491S00=SK024 anchor point kit; Skippi with seat height adjustment: 491S00=SK005 anchor point kit). The qualified personnel who fitted the wheelchair can provide more information. - Page 51 Placement of the restraint system integrated in the vehicle Fastening the restraint lap belt of the vehicle for transporting persons with reduced mobility is mandatory. The belt system of the power wheelchair can be used in addition to position the passenger during transportation. Skippi...
-
Page 52: Restrictions For Use
► For more information please visit the www.iata.org website. The manufacturer recommends contacting the airline directly before every flight to obtain information regarding special transport regulations. ► Use the SSR (special service request) codes to describe the type of limited mobility if necessary. These can be searched in the internet, for example. Skippi... -
Page 53: Reducing The Transportation Size
(see fig. 47). 3) Slightly lift the frame to separate it from the drive unit bracket (see fig. 47). 4) Separately set aside the frame and drive unit brack Skippi... -
Page 54: Preparing For Transport
CAUTION! Falling due to lack of frame stability. Check that the locking bolts are properly engaged at both sides on the outside of the base support. The bolts must be clearly visible so that the frame cannot disengage from the drive unit bracket (see fig. 50). Skippi... -
Page 55: Care
► Inspect the seat adjustment features for visible signs of damage at least 1 x per month and ensure all screw connections are tight. ► Maintain sufficient air pressure in the tyres. The correct tyre pressure is printed on the tyre casing and listed in the section "Technical data". Skippi... -
Page 56: Maintenance
Check for sufficient tread depth (min. 1 mm) Check for damage Batteries Check battery charge level Lights Check for external damage Verify functionality Electronics Check whether the control unit is functioning properly (inform qualified personnel of any LED error messages) Skippi... -
Page 57: Repair
► When jacking up, secure the power wheelchair to prevent it from slipping or tilting to the side by placing a suitable base under the drive unit bracket. ► Ensure that body parts, such as hands or head, are never in the danger zone. Skippi... -
Page 58: Replacing The Inner Tube And Tyre
8) Reinstall the wheel (see previous section). 9.3.4 Replacing a defective bulb NOTICE Use of incorrect bulbs Damage/melting of the connecting cables due to excess current flow ► Note that the LED lighting may only be replaced with original lighting. Skippi... -
Page 59: Replacing A Battery
Faults are indicated on the control panel LCD screen, on the LCD monitor (if installed) or on the attendant control (if installed). The following table shows the individual notifications as well as the associated fault sources and pos sible causes and measures. Skippi... -
Page 60: Types Of Notifications
Contact specialist dealer Defective actuator Seat tilt motor fault Faulty cabling or plug Check cabling/plug connections connections Contact specialist dealer Defective actuator Seat height adjustment Faulty cabling or plug Check cabling/plug connections motor fault connections Contact specialist dealer Defective actuator Skippi... -
Page 61: Attendant Control Error Overview
Return the product to the specialist dealer for disposal. Please return defective batteries to your specialist dealer when buying new ones. All components of the product must be disposed of properly in accordance with the respective national environ mental regulations. Skippi... -
Page 62: Information On Re-Use
All brands, trade names or company names may be registered trademarks and are the property of the respective owners. Should trademarks used in this document fail to be explicitly identified as such, this does not justify the conclusion that the denotation in question is free of third-party rights. Skippi... -
Page 63: Technical Data
Mechanical: adjustable by up to 20° Power: adjustable by up to 20° Seat height adjustment* Power: adjustable by up to 200 mm (7.9") Combined seat height adjustment/seat Seat height adjustment: adjustable by up to 200 mm (7.9"); seat tilt: tilt* adjustable by up to 20°; power Skippi... - Page 64 For information on this, see the section "Range" in the instructions for use (user). *** The braking distance can be correspondingly longer due to user weight, installed options and condition of the tyres, and due to weather and surface conditions. Corrosion protection Corrosion protection Dip-coated frame (KTL coating) Skippi...
-
Page 65: Appendices
13.3 Torque values of the screw connections Unless otherwise specified, screw connections are tightened with the following torque values: • Thread diameter M4: 3 Nm • Thread diameter M5: 5 Nm • Thread diameter M6: 10 Nm • Thread diameter M8: 25 Nm Skippi... - Page 66 Skippi...
- Page 67 · www.ottobock.de 143441 Moscow Region/Krasnogorskiy Rayon info@ottobock.com.co · www.ottobock.com.co Russian Federation Otto Bock Healthcare Products GmbH Otto Bock de Mexico S.A. de C.V. T +7 495 564 8360 · F +7 495 564 8363 Brehmstraße 16 · 1110 Wien · Austria Prolongación Calle 18 No. 178-A info@ottobock.ru · www.ottobock.ru F +43 1 5267985...
- Page 68 Ihr Fachhändler | Your specialist dealer Otto Bock Mobility Solutions GmbH Lindenstraße 13 · 07426 Königsee-Rottenbach/Germany www.ottobock.com...
