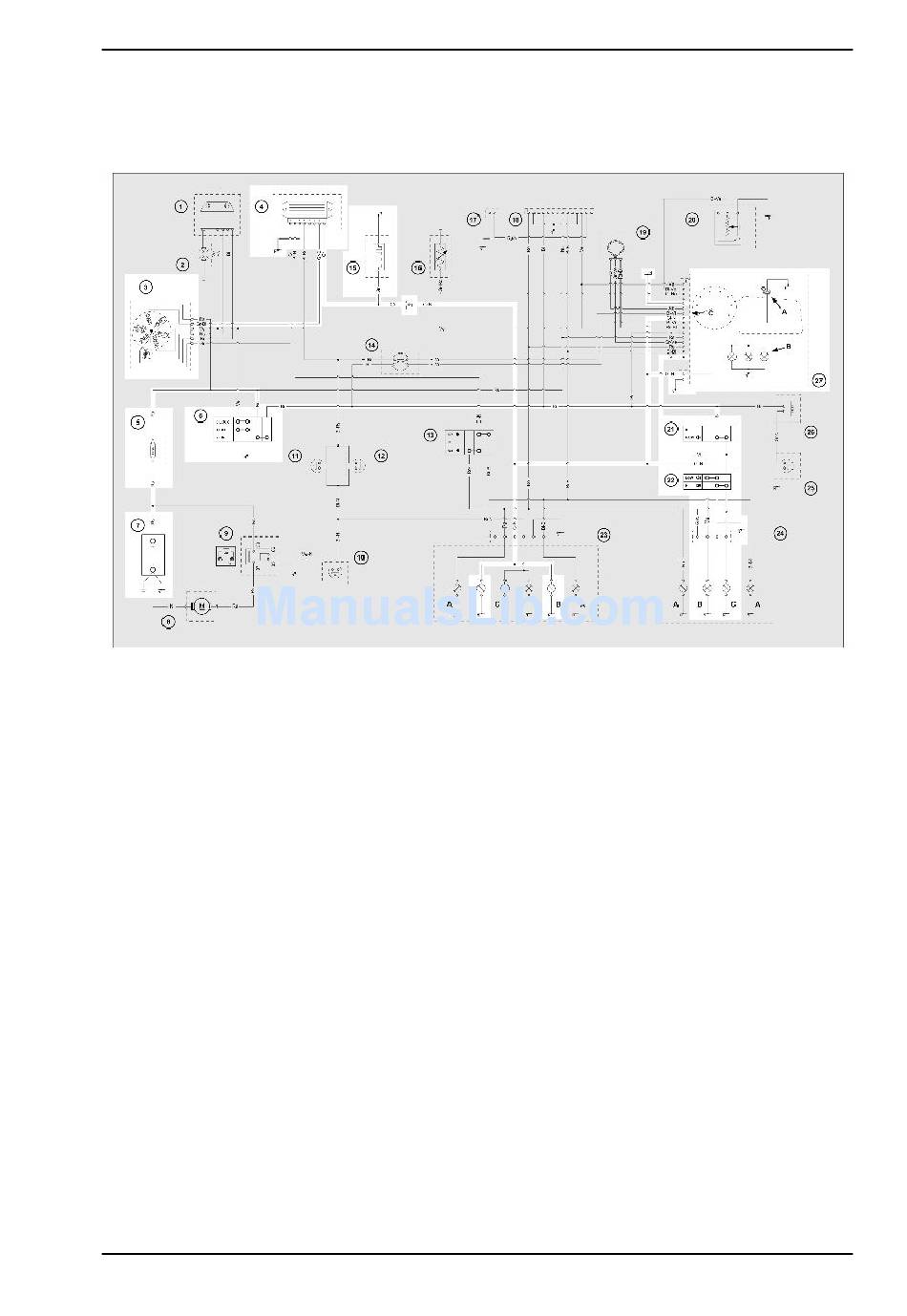

Headlights and automatic starter section

3. Flywheel magneto
4. Voltage regulator
5. Main 7.5 A fuse
6. Key-switch
7. Battery
15. Automatic choke
21. Blinker switch
22. Headlight switch
23. Taillight
A. Turn signal light bulb
B. Sidelight
C. Stoplight
24. Headlight
A. Turn signal light bulb
B. Low-beam light bulb
C. High-beam light bulb
27. Dashboard assy.
A. Low-oil warning light
Electrical system
