Checks And Inspections; Check On The Pick Up - Gilera DNA 50 Workshop Manual

Electrical system
1. Rpm counter
2. Fuel warning lamp
3. Oil mix warning lamp
4. Parking light lamp
5. High beam lamp
6. Turn indicator lamp
7. Temperature indicator
8. Fuel level indicator
9. Speedometer
10. Odometer
11. Digital display buttons

Checks and inspections

Checks to be made in the case of ignition irregularities and/or no spark on the spark plug
1. Check the condition of the spark plug (clean it with a metal brush, remove the encrustations, blast
it with compressed air and, if necessary, replace it).
2. Without removing the stator, carry out the following checks:
1
After visually checking the electrical wiring, perform measurements on the loading reel, the pickup (see
chart) and the continuity using the appropriate tester.
If checks on the loading reel, pickup and continuity show abnormalities, replace the stator; otherwise
replace the central unit. Remember that disconnections due to replacement of the central unit must be
done with the engine off.
Specific tooling
020331Y Digital multimeter
ELE SYS - 50

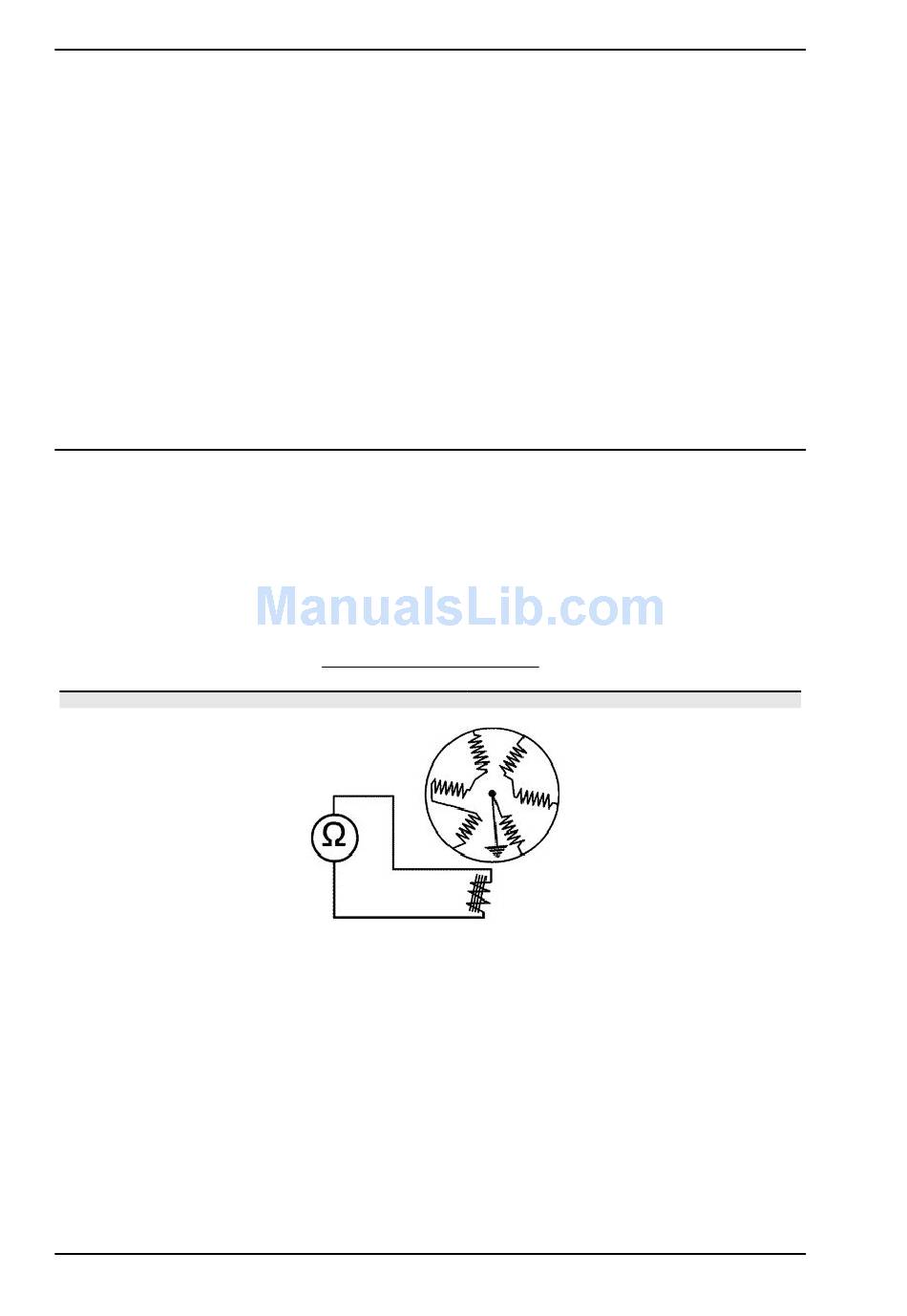

CHECK ON THE PICK UP

Specification
Red and white cable
DNA 50
Desc./Quantity
90±140 ohm
