Fuel tank

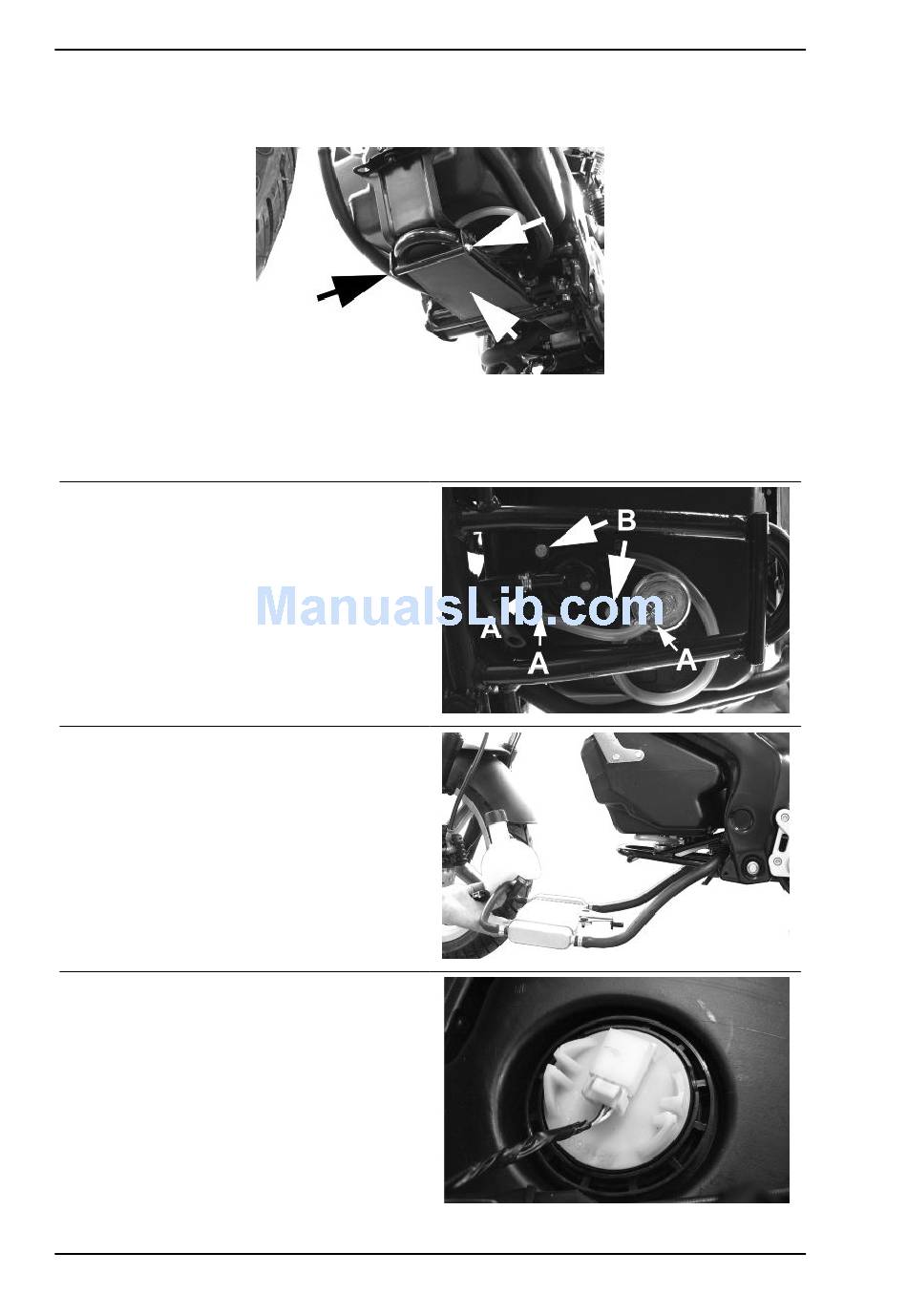

- Remove the helmet compartment.
- Remove the from side frames and the lower central covering.
- Remove the lower radiator support using the two screws and the pump guard indicated in the photo.
Disconnect the three hoses A towards the engine
unit, then remove the fuel pump using the two
screws B indicated in the photo.
Remove the two expansion tank support screws,
remove the two radiator set screws, and without
draining the cooling system, pull the radiator out
from the bottom and the expansion tank from the
chassis unit.
Remove the fuel level connector
