■ ANALOG PC-2 / COMPONENT Terminal
This terminal is used as a computer ANALOG PC input or COMPONENT terminal.
Use a D-sub computer cable.
The terminal specifications for the ANALOG PC input and COMPONENT input are
the same.

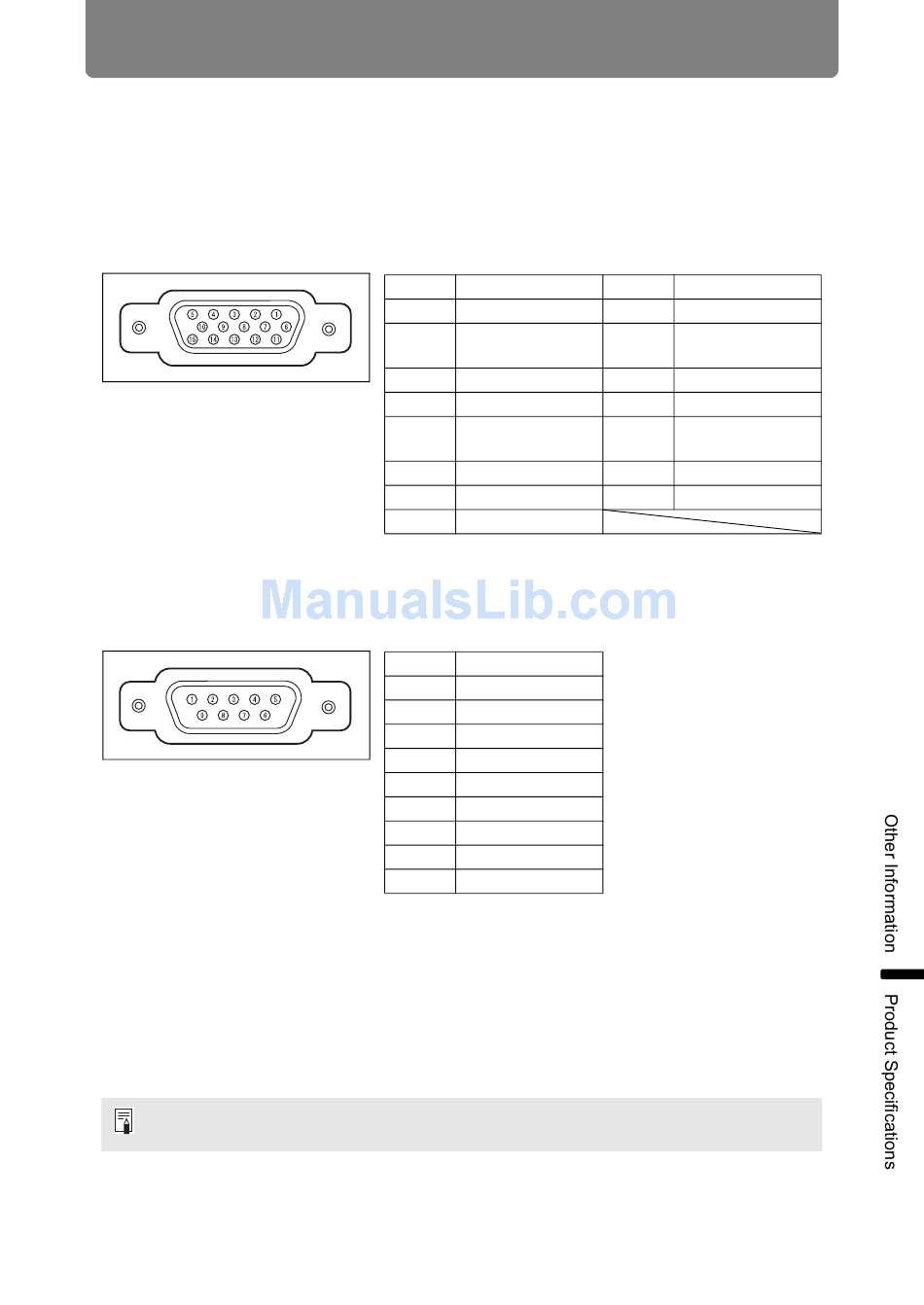

Mini D-sub 15-pin
■ Service Port (CONTROL)

Pin assignment

Communication format

Communication mode : RS-232C, asynchronous, half-duplex communication
Communication speed : 19200bps
Character length
Stop bits
Parity
Flow control
The service port is not available when [HDBaseT] is set to [On] and [Serial
communication] is set to [HDBaseT].
Pin No.
1 R
2 G
3 B
4 OPEN
Ground
5
(Horizontal sync.)
6 Ground (R)
7 Ground (G)
8 Ground (B)
Pin No.
1 OPEN
2 RxD
3 TxD
4 OPEN
5 GND
6 OPEN
7 Internal pull-up
8 OPEN
9 OPEN
: 8 bits
: Settable to 1 bit or 2 bits. Factory default state is 2 bits.
: None
: None
189
Product Specifications
Signal Pin No.
9 +5 V power
Ground
10
(Vertical sync.)
11 Ground
12 DDC data
13 Horizontal sync.
14 Vertical sync.
15 DDC clock
Signal
Signal
