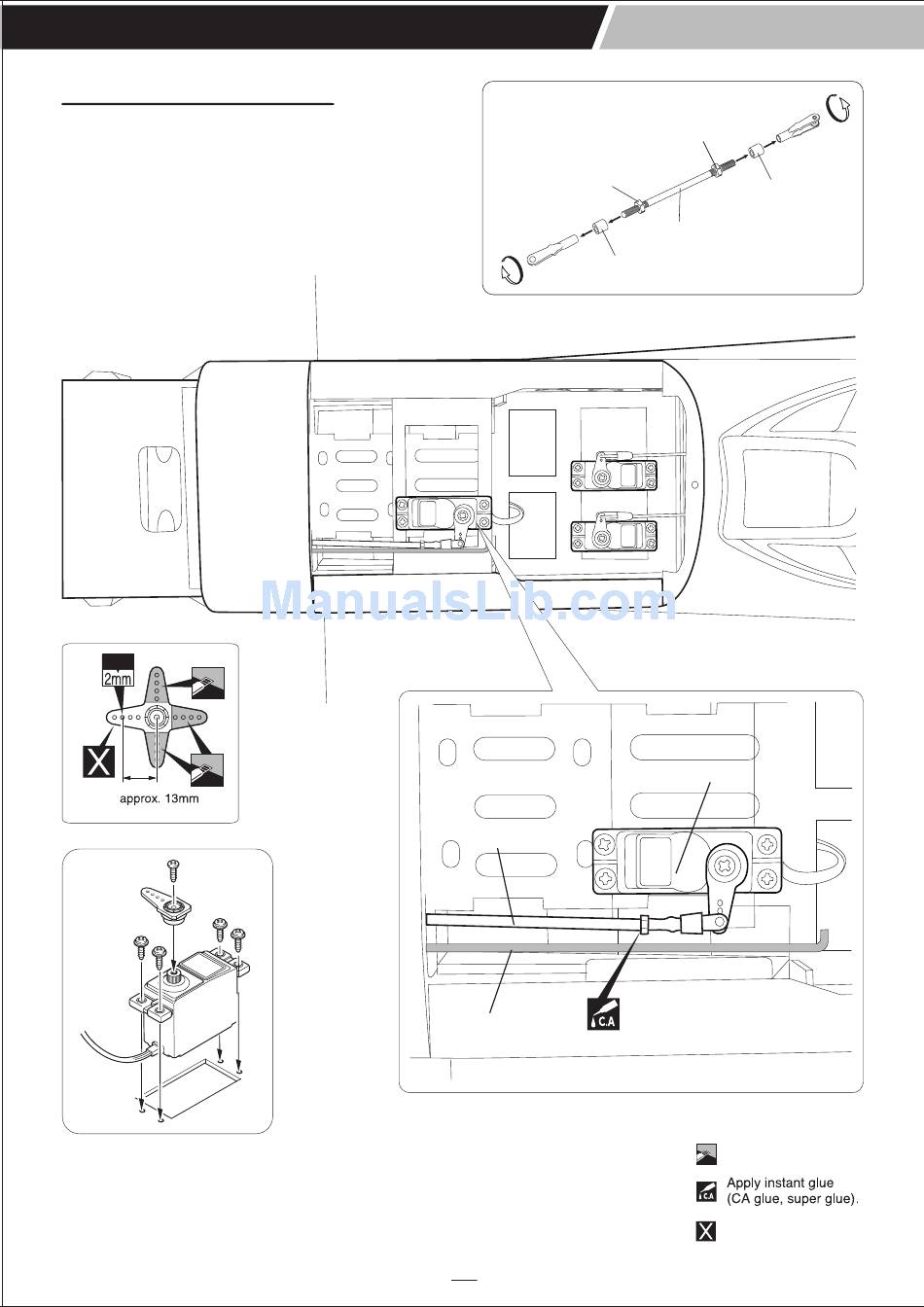

INSTALLING THE THROTTLE

1. Plug the throttle servo into the receiver and turn on
the radio system. Check to ensure that the throttle
servo output shaft is moving in the correct
direction. When the throttle stick is moved forward
from idle to full throttle, the throttle barrel should
also open and close using this motion. If not,
reverse the direction of the servo, using the
transmitter.
3mm
Silicone
Throttle Rod
Choke rod
25
SPITFIRE
3mm
Silicone
Throttle
rod
Throttle Servo
Cut off shaded portion
Must be purchased
separately!
