Power/Composite Pinout - FDS FD141CV-C-3 Installation And Operation Manual

Power/Composite

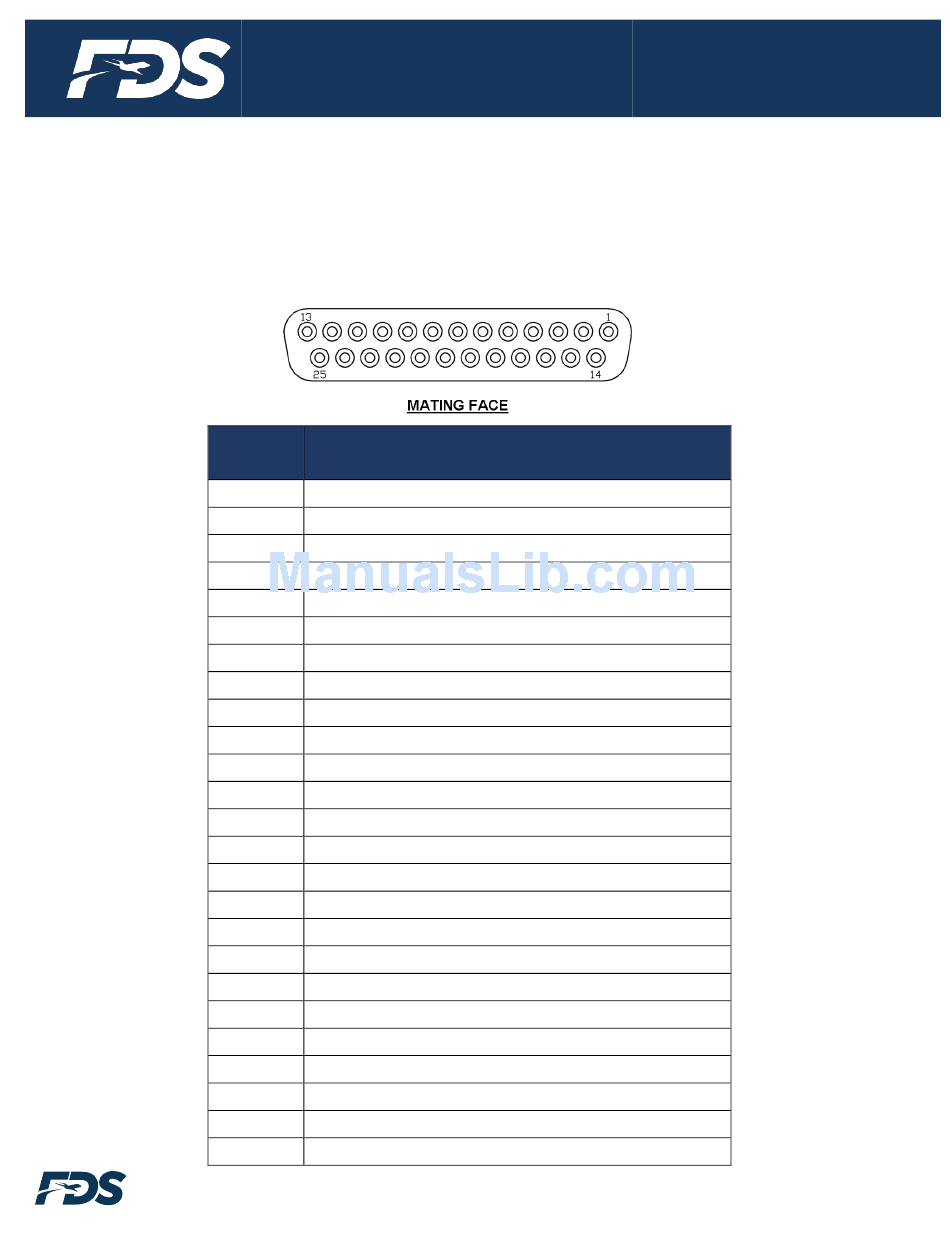

Standard Density DB-25 Receptacle – (supplied)
Connector
Crimp Contacts
Number
© 2017 FDS Avionics Corp.
All Rights Reserved.
Document Number:
MAN – FD141CV-C-3
Pin
1 15-28VDC Power
2 15-28VDC Ground
3 Composite Video Signal
4 Composite Video Return
5 N/C
6 N/C
7 N/C
8 N/C
9 N/C
10 N/C
N/C
11
N/C
12
N/C
13
N/C
14
N/C
15
N/C
16
N/C
17
N/C
18
N/C
19
N/C
20
N/C
21
N/C
22
N/C
23
N/C
24
25 N/C
P/N: M24308/2-283 or Equivalent
P/N: M39029/63-368 or Equivalent
Description
TECHNICAL SUPPORT
470-239-7421 or FDSAvionics.com
Revision Date:
Rev:
04/27/2017
B
Page 7 of 16
