Mounting and Base Information

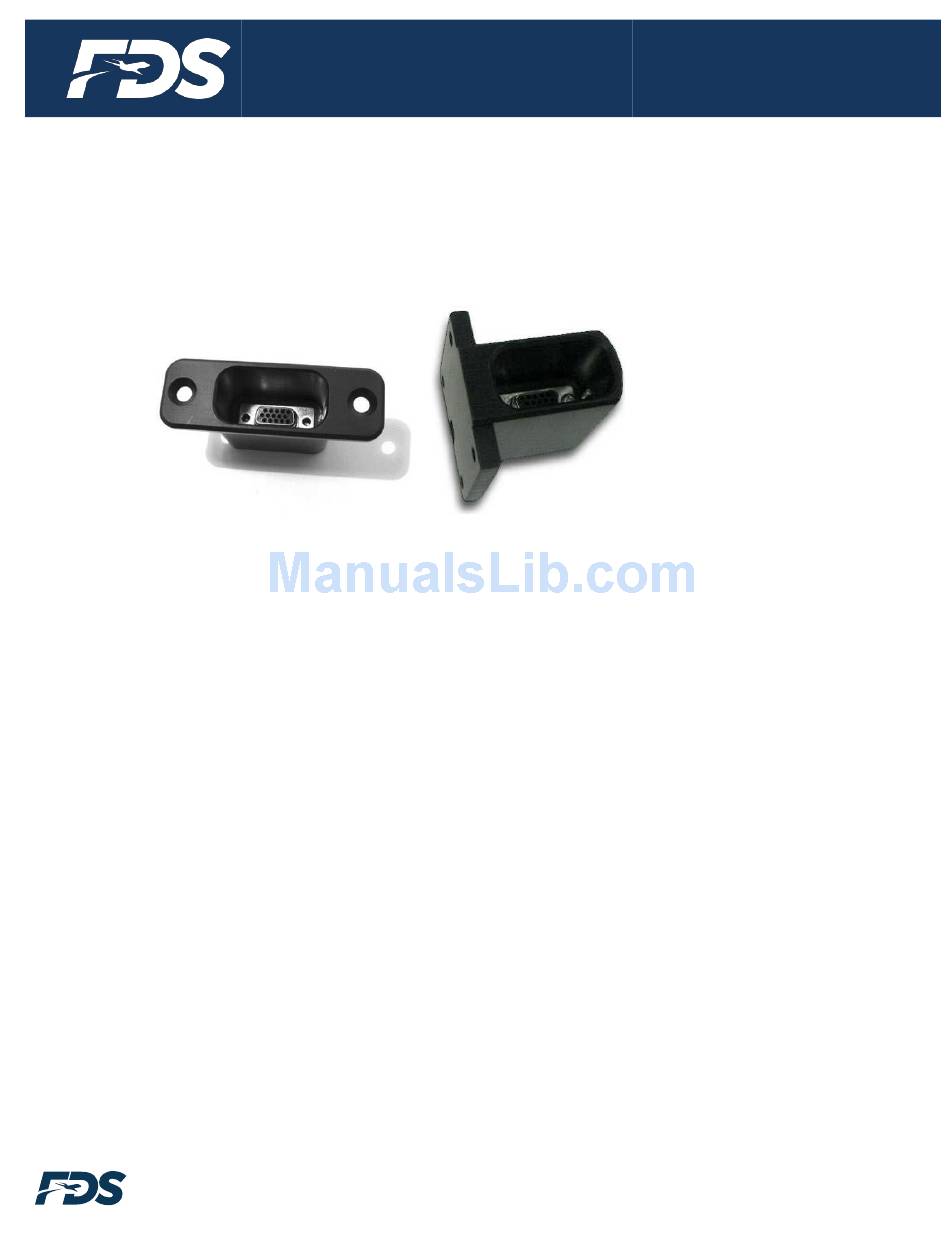

The FD70CV-M-C-6 mates with a standard FDBASE( left); however, FDS Avionics Corp. has
various types of bases that maybe more suitable for your aircraft. Below are examples of the
FDBASE and FDBASE-W(right, wall mount):
The connector seats deeply in the mount, the secure High Density DB15 pin and connector can only
be connected one direction.

Power and Ground Wiring

22 AWG wire is recommended for Power and Ground applications.
