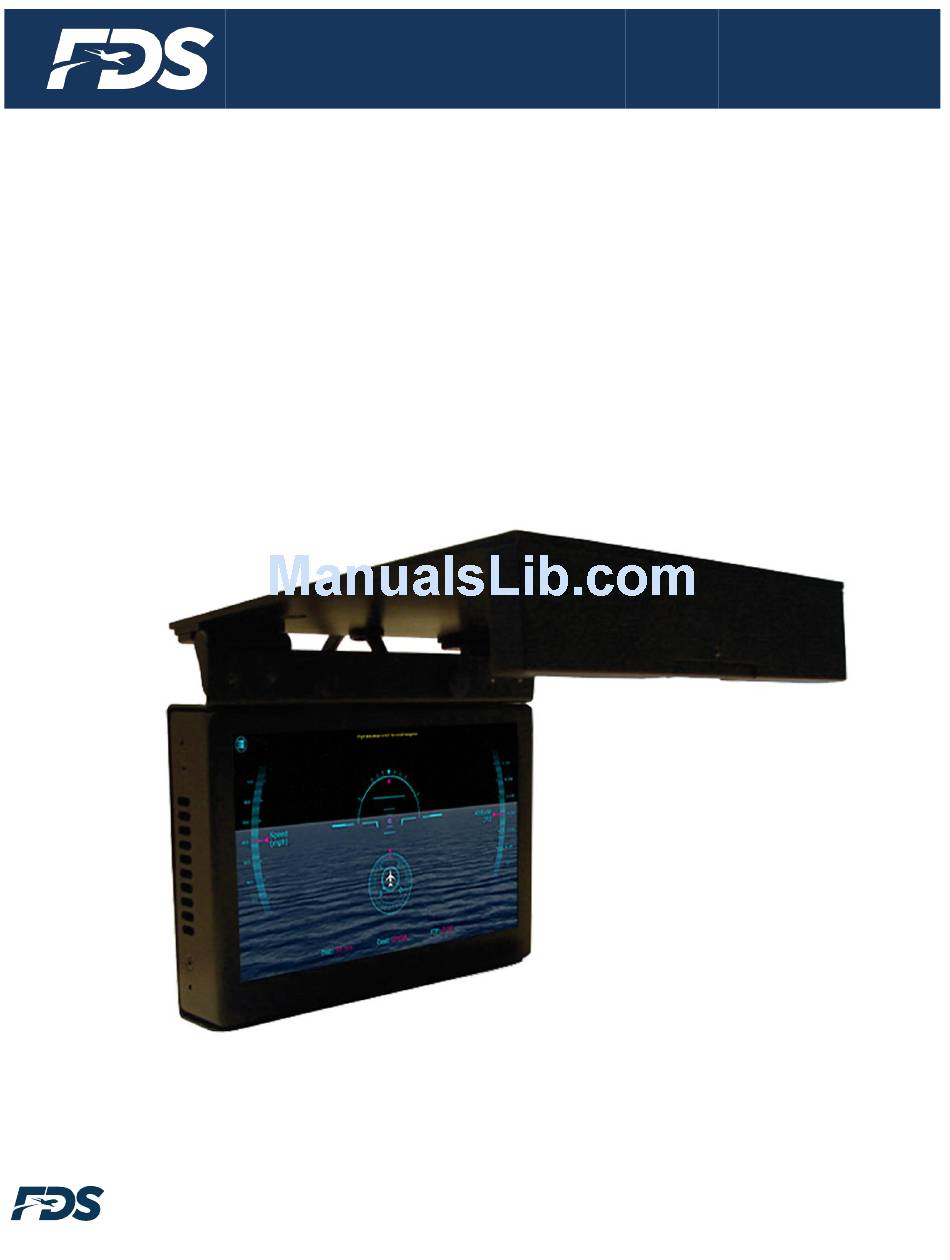

- Page 1 Revision Date: Rev: Document Number: 05/15/2017 MAN – FD70CMT-M Page 1 of 12 Installation and Operation Manual FD70CMT-M 7” Widescreen LCD and Ceiling Mount © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com...
-
Page 2: Table Of Contents
Technical Drawing ......................8 Operation Instruction ..................... 9 Monitor Control Button ....................9 Technical Support ......................10 Instructions for Continued Airworthiness ............... 10 Warranty .......................... 11 Log of Revisions......................12 © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 3: General Information

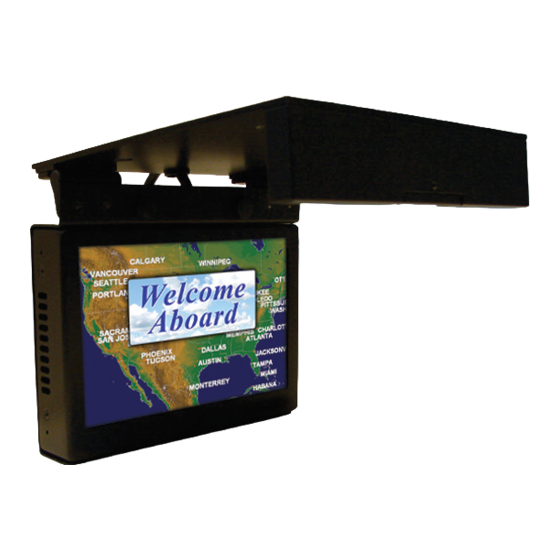

Page 3 of 12 General Information The FD70CMT-M is the latest version of our popular 7" Widescreen LCD and Ceiling Mount, used to deploy our popular 7” Widescreen LCD. The all metal case is designed with a narrow footprint. It is easily mounted to the ceiling or between the Passenger Service Units in the smallest aircraft or helicopter. -
Page 4: Specifications
Once it has been determined that you have sufficient room and mounting locations for the FD70CMT-M, then it would be appropriate to start mounting the base to the frame. The FD70CMT-M is attached to the aircraft with four #8 socket head cap screws. There are four attach points on the ceiling mounting plate. -
Page 5: Wiring Suggestions
75 Ohm video isolation transformer such as Deerfield Laboratory, Inc. Part No. 162-1 (www.deerfieldlab.com, (650) 632-4090). In most cases this should be added to the video output of the source. © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. -
Page 6: Vga Wiring
& green wires, and Raychem caps for the blue, white, and black wires. Power and Ground Wiring 22 AWG wire is recommended for Power and Ground applications. © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. -
Page 7: Power/Video
High density, D-sub, 15 contact receptacle (male) P/N 748364-1 HD15M pins P/N M39029/58-360 Number Description 12VDC Power (28VDC for FD70CMT-M (28V)) 12VDC Ground (28VDC for FD70CMT-M (28V)) Composite 1 - Signal Composite 1 - Ground Composite 2 - Signal Composite 2 - Ground... -
Page 8: Technical Drawing
Revision Date: Rev: Document Number: 05/15/2017 MAN – FD70CMT-M Page 8 of 12 Technical Drawing © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 9: Operation Instruction
Page 9 of 12 Operation Instructions The FD70CMT-M is continuously on but can be de-energized by removing power from the entertainment system. No pilot or aircrew action is necessary during flight or ground operation. Passengers can change the video output from the FD70CMT-M using the video source select switch on the LCD monitor, or remotely throughout the cabin with the included IR remote. -
Page 10: Technical Support
05/15/2017 MAN – FD70CMT-M Page 10 of 12 Technical Support Should you have any questions concerning this product or other FDS Avionics Corp. products, please contact our Product Support representatives at (470) 239-7421. FDS Avionics Corp. 6435 Shiloh Road Alpharetta, GA 30005... -
Page 11: Warranty
Limited Warranty All FDS Avionics Corp. products are warranted to be free from material or manufacturing defects for a period of 24 months from the date of shipment for General Aviation customers or 12 months from the date of shipment for Government/Special Mission customers. -
Page 12: Log Of Revisions
Log of Revisions Date Page Description 09/04/2007 02/26/2009 Updated specifications, warranty info 11/20/2009 Replaced front view photo 06/19/2012 Updated cover & format 5/15/2017 New company, format, warranty, etc. © 2017 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com...
