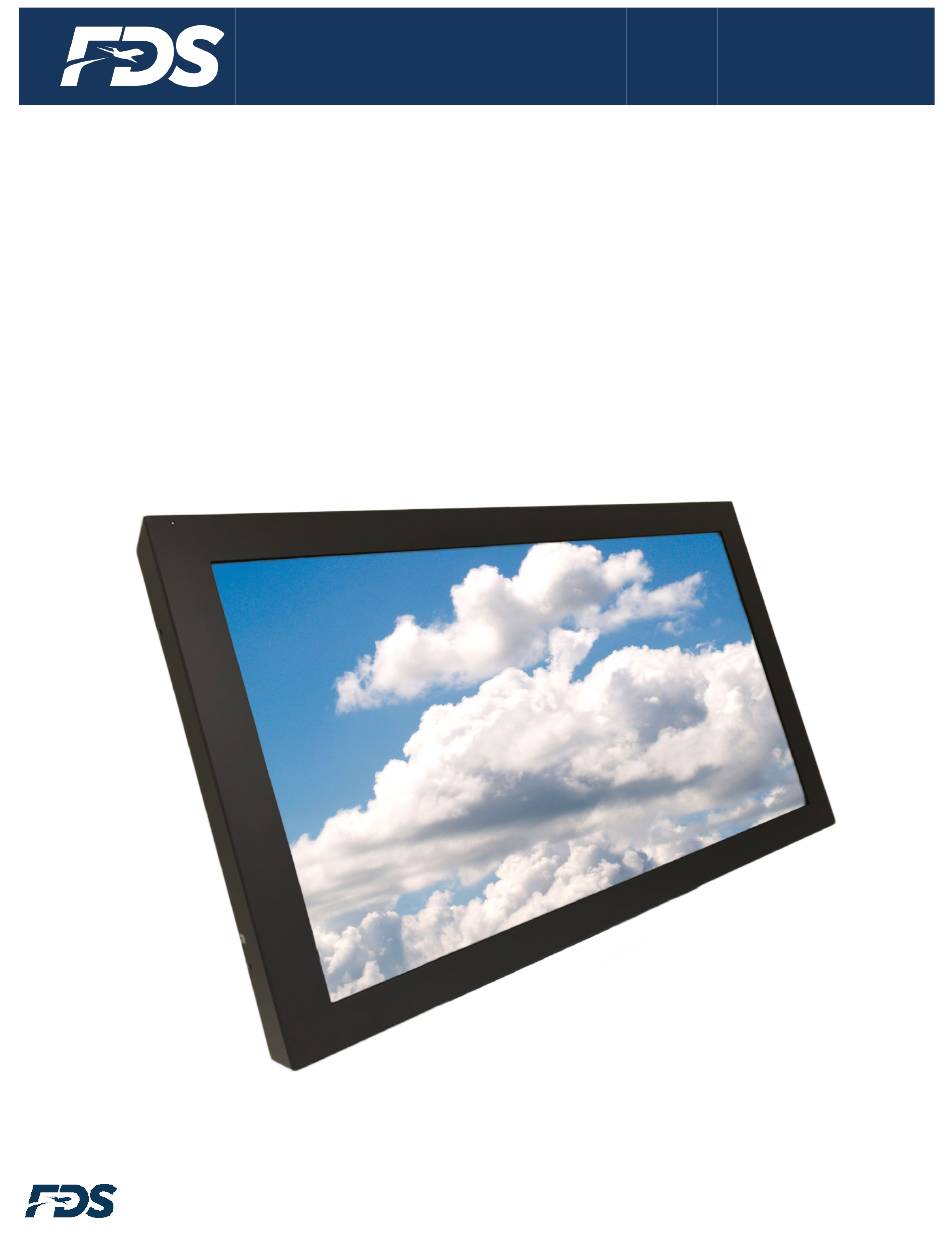

- Page 1 Document Number: 09/23/2019 MAN – FD320CV-X Page 1 of 20 Installation and Operation Manual FD320CV FD320CV VER HD FD320CV VER HDSDI FD320CV VER HDSDI-CAN 32” High-Definition Widescreen LCD © 2019 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com...
- Page 2 Screen Control On Screen Display Menu DO-160 Testing Section 7, Category B Section 21, Category B Serial Communication RS-485 (FD320CV VER HD Only) CAN Bus (FD320CV VER HDSDI-CAN Only) Video Inputs FD320CV FD320CV VER FD320CV VER HDSDI FD320CV VER HDSDI-...
-
Page 3: Table Of Contents
Button Controls .........................14 Remote Control Buttons ....................15 Technical Drawing ......................16 Technical Drawing ......................17 Technical Support ......................18 Instructions for Continued Airworthiness...............18 Limited Warranty .......................19 Log of Revisions .......................20 © 2019 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 4: General Information/Additional Information/Installations
Additional Information The FD320CV series utilizes a state of the art digital video decoding chipset for the analog video input. The FD320CV series can also be connected to existing video switchers and use only a single video input from a selector interface box. -
Page 5: Rear Connector Orientation
It is possible to change the connector orientation at the time of installation. For instructions on how to change the connector orientation please call FDS Avionics Corp. at +1 (470) 239-7400 and ask for Technical Support. -
Page 6: S-Video/Composite And Audio Wiring
In most cases this should be added to the video output of the source. We recommend coax cables be terminated using solder sleeve coaxial cable terminators. © 2019 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 7: Vga Wiring
Recommended cable for VGA purpose is ECS P/N 453005. This is a single shielded cable containing 5 separate coaxial cables, color-coded to match the functions of the wires. TECHNICAL SUPPORT © 2019 FDS Avionics Corp. All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 8: Hdmi
High-Definition content. The Type A HDMI connector (shown below) has 19 pins with bandwidth to support all SDTV, EDTV and HDTV modes. The plug’s outside dimensions are 13.9 mm wide by 4.45 mm high. © 2019 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. -
Page 9: Power And Ground Wiring
Also, use short heavy gauge wire and a clean tight connection for ground. It is the installer's responsibility to understand the product's requirements in order to install the product in compliance with industry standards and safety. © 2019 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. -
Page 10: Command Sets For Controlling The Monitors With Serial Numbers Starting W/ 11Xxxxxxxx (10 Digits) And Below
0x63 for monitor number 99. 3. The number will change depending on command. 4. Identifier for the group of commands. 5. All commands need to end with a Carriage Return © 2019 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 11: Command Sets For Controlling The Monitors With Serial Numbers Starting W/ 12Xxxxxxxx (10 Digits) And Above
RS-485 messages. *Note: The formula for checksum: 0xFF - (Length + CMD + Index + Wall ID + Set ID + Data + Wall Column ID - 1) © 2019 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 12: Rs-485 Wiring And Rs-485 Network
• Navigate to the “image” tab • Navigate down to “set ID” • Press left or right to assign a number to the monitor • Press menu twice to exit © 2019 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 13: Operation Instructions
IR is not needed. If you are using the IR to change the video source selection, then you need to have the IR Detector visible to the cabin. The FD320CV series are continuously powered on but can be de-energized by removing power from the entertainment system. -
Page 14: Button Controls
09/23/2019 MAN – FD320CV-X Page 14 of 20 Button Controls Located at the top (center) of the FD320CV series are 8 buttons. Their functions are shown below: BUTTON FUNCTION DESCRIPTION Toggles the power ON or Off. Also, wakes the display up from Power SLEEP mode. -
Page 15: Remote Control Buttons
PIP POS - Pip window position Two AAA batteries required (supplied). The remote control contains the same functionality available as on the display buttons to include power, source, menu and directional arrows. © 2019 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 16: Technical Drawing
Revision Date: Rev: Document Number: 09/23/2019 MAN – FD320CV-X Page 16 of 20 Technical Drawing © 2019 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 17: Technical Drawing
Revision Date: Rev: Document Number: 09/23/2019 MAN – FD320CV-X Page 17 of 20 Technical Drawing © 2019 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com... -
Page 18: Technical Support
09/23/2019 MAN – FD320CV-X Page 18 of 20 Technical Support Should you have any questions concerning this product or other FDS Avionics Corp. products, please contact our Product Support Representatives at 470-239-7421. FDS Avionics Corp. 6435 Shiloh Road Alpharetta, GA 30005... -
Page 19: Limited Warranty
Limited Warranty All FDS Avionics Corp. products are warranted to be free from material or manufacturing defects for a period of 24 months from the date of shipment for General Aviation customers or 12 months from the time of shipment for Government/Special Mission customers. -
Page 20: Log Of Revisions
Revision Date: Rev: Document Number: 09/23/2019 MAN – FD320CV-X Page 20 of 20 Log of Revisions Date Page Description 09/23/2019 Initial Release © 2019 FDS Avionics Corp. TECHNICAL SUPPORT All Rights Reserved. 470-239-7421 or FDSAvionics.com...
