R91 User's Manual
Uninterruptible Power Supply
Assembly
Dismount the Cabinet Shell

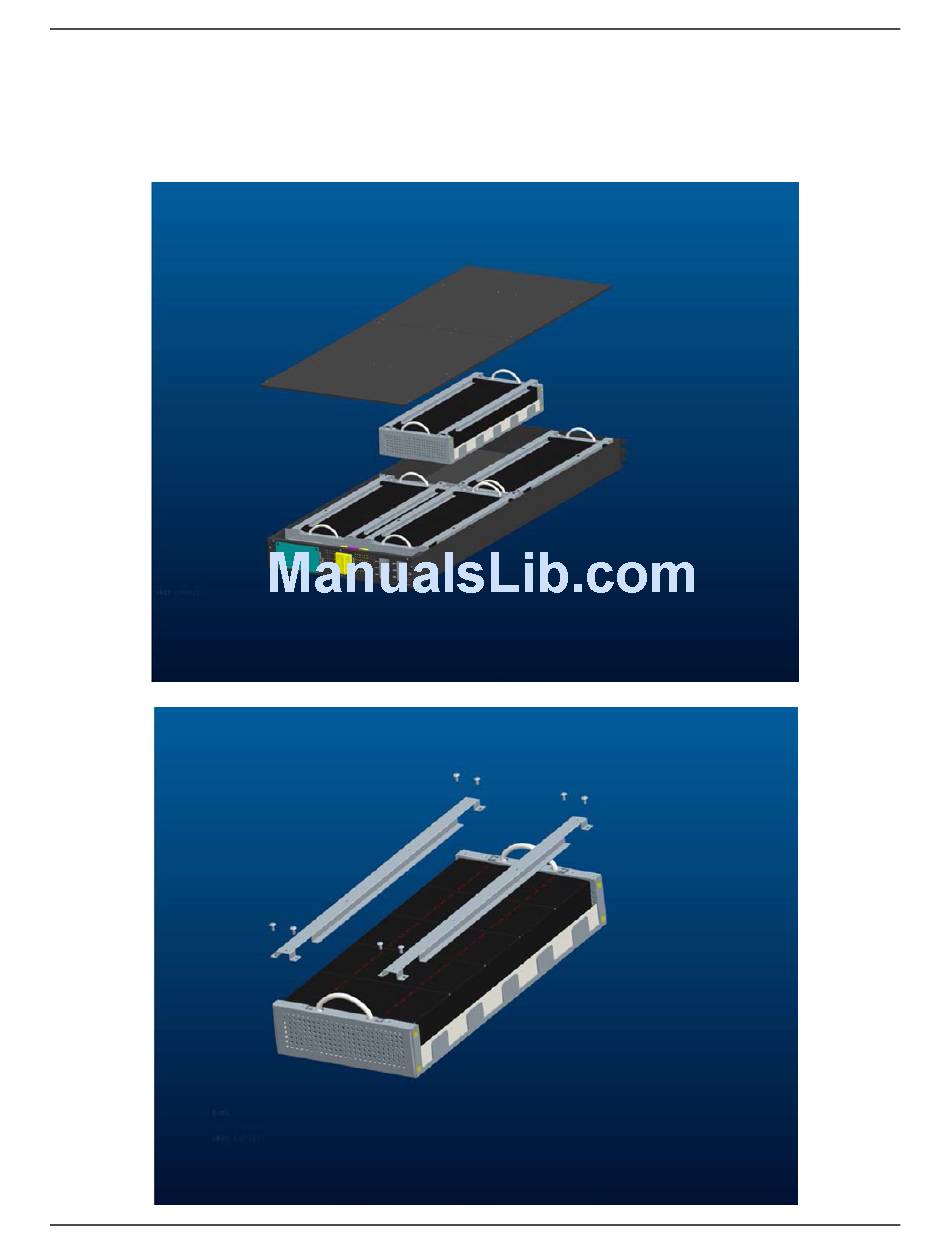

Put the battery pack on a level, remove the battery pack top covers, pull out the battery tray and remove the bat-
tery tray layering for easier battery installation and connection, as shown below.
Xtreme Power Conversion Corporation
Page 23
