R91 User's Manual
Uninterruptible Power Supply
Power cable connection diagram
Select the appropriate power cable size, paying attention to the diameter of the connection terminal of the cable,
which should be greater than or equal to the connection posts.

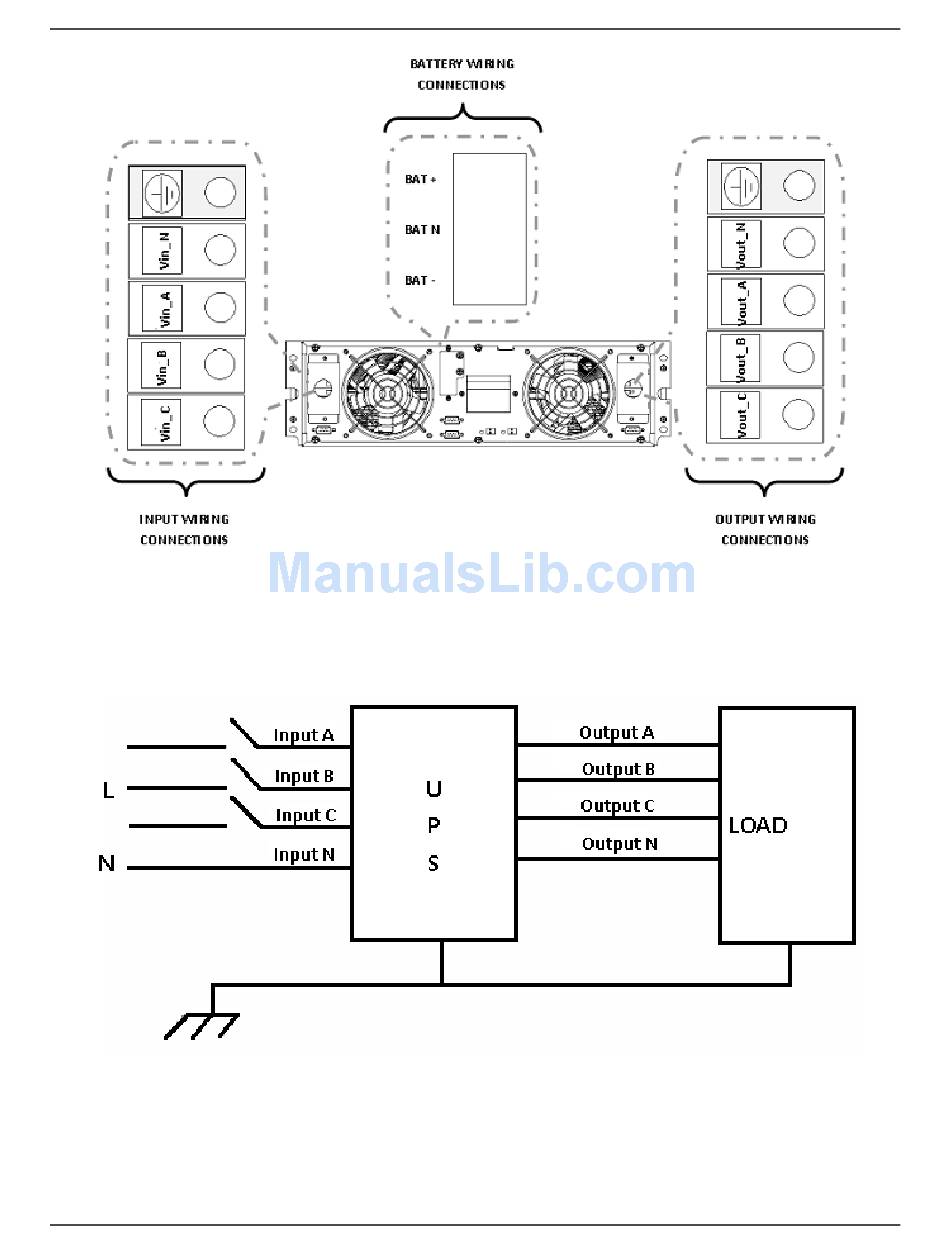

Wiring diagram
Xtreme Power Conversion Corporation
Page 11
