DMX Control Connection
Connect the provided XLR cable to the female 5-pin XLR output of your controller and the other side to the male 5-pin XLR input of
the moving head. You can chain multiple moving heads together through serial linking. The cable needed should be two core,

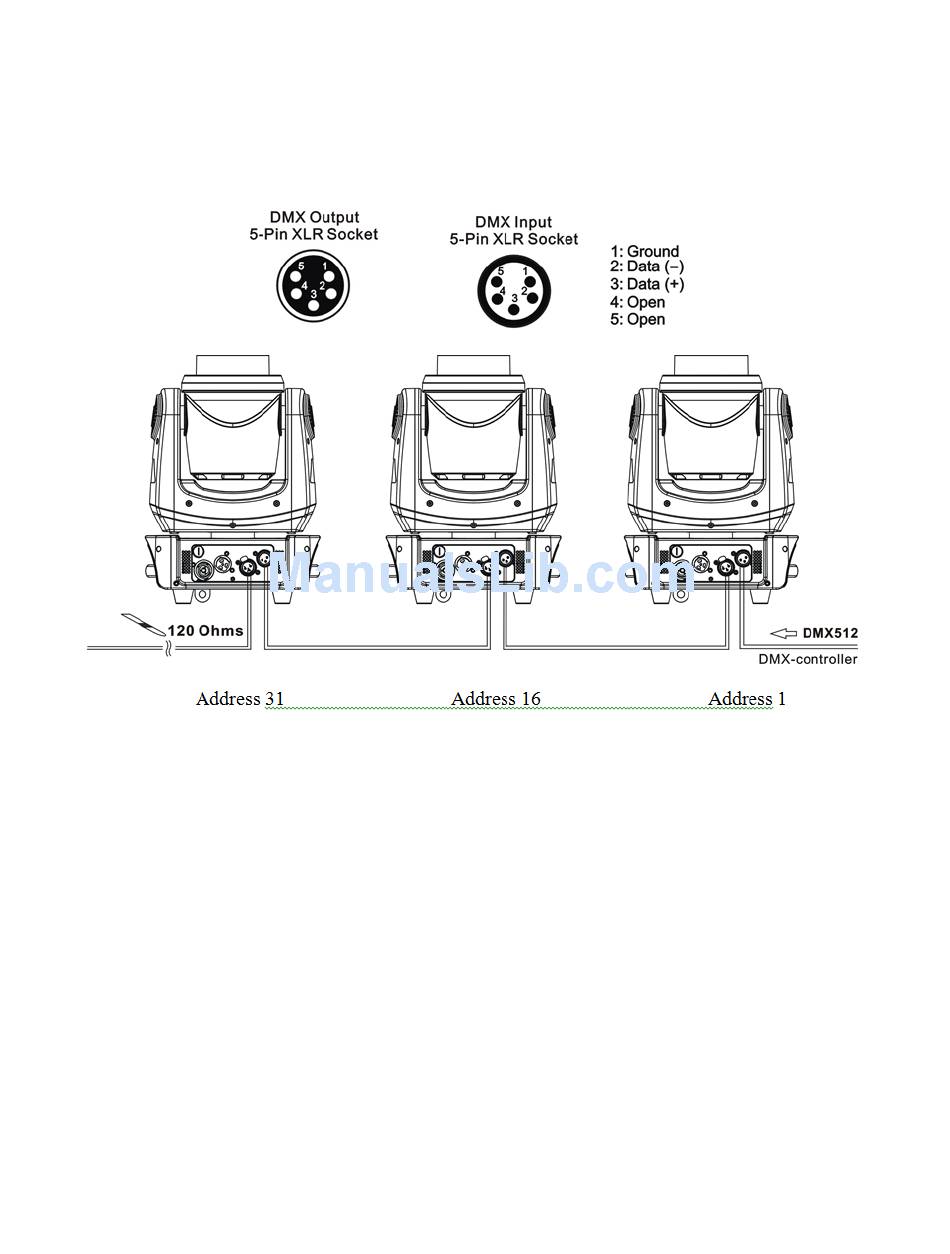

screened cable with XLR input and output connectors. Please refer to the diagram below:
