Installation Instructions

•
The installation must always be secured with a secondary safety attachment, e.g. an appropriate safety cable.
•
The installation of the effect has to be built and constructed in a way that it can hold 10 times the weight for 1 hour
without any harming deformation.
•
The applicable temperature for the lighting is between -10°C to 45°C. Do not use the lighting under or above the
temperature.
•
Never stand directly below the device when mounting, removing or servicing the fixture.
•
The operator has to make sure the safety and technical installations are approved by an expert before taking using
this fixture in the field for the first time.
•
These installations must be inspected by a skilled person once a year.
•
Overhead mounting requires extensive experience, including amongst others calculating working load limits,
installation material being used, and periodic safety inspection of all installation material and the device. If you
lack these qualifications, do not attempt the installation yourself. Improper installation can result in serious bodily
injury.

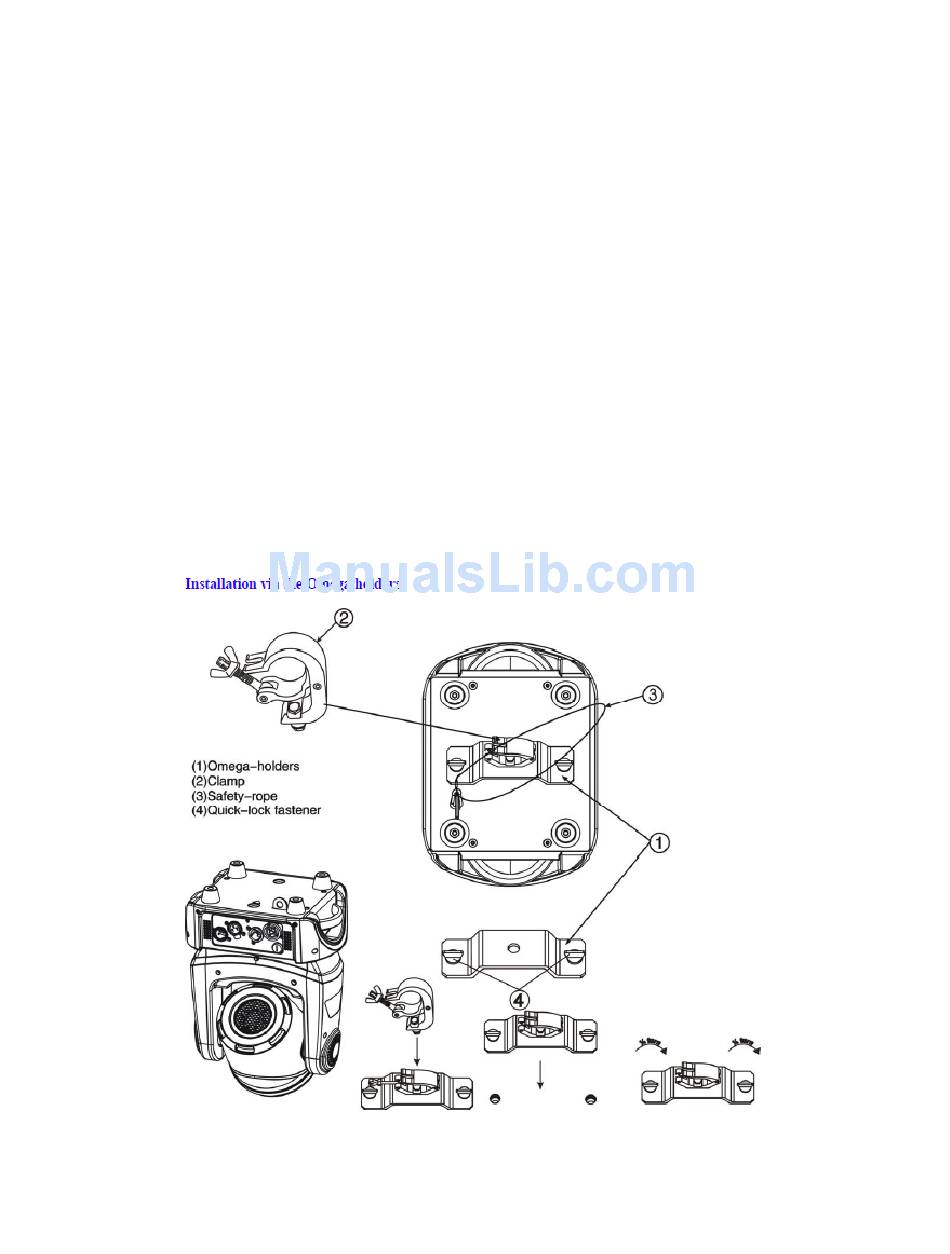

Attachment Instructions
•
Attach the Omega clamp on the bracket by tighten the M12 bolt on the bracket to the hole in the middle of the bracket.
•
Insert the quick-lock fasteners of the bracket into the respective holes on the bottom of the fixture.
•
Tighten the quick-lock fasteners fully clockwise.
•
Install the second Omega clamp.
•
Attach the safety-cable through the holes on the bottom of the base. Attach to the trussing system or other safe fixation
point.
•
Be sure the safety is fully looped, the quick-link is attached and fully tighten
•
Inspect for complete attachment before lifting over-head
