Summary of Contents for High End Systems Uno

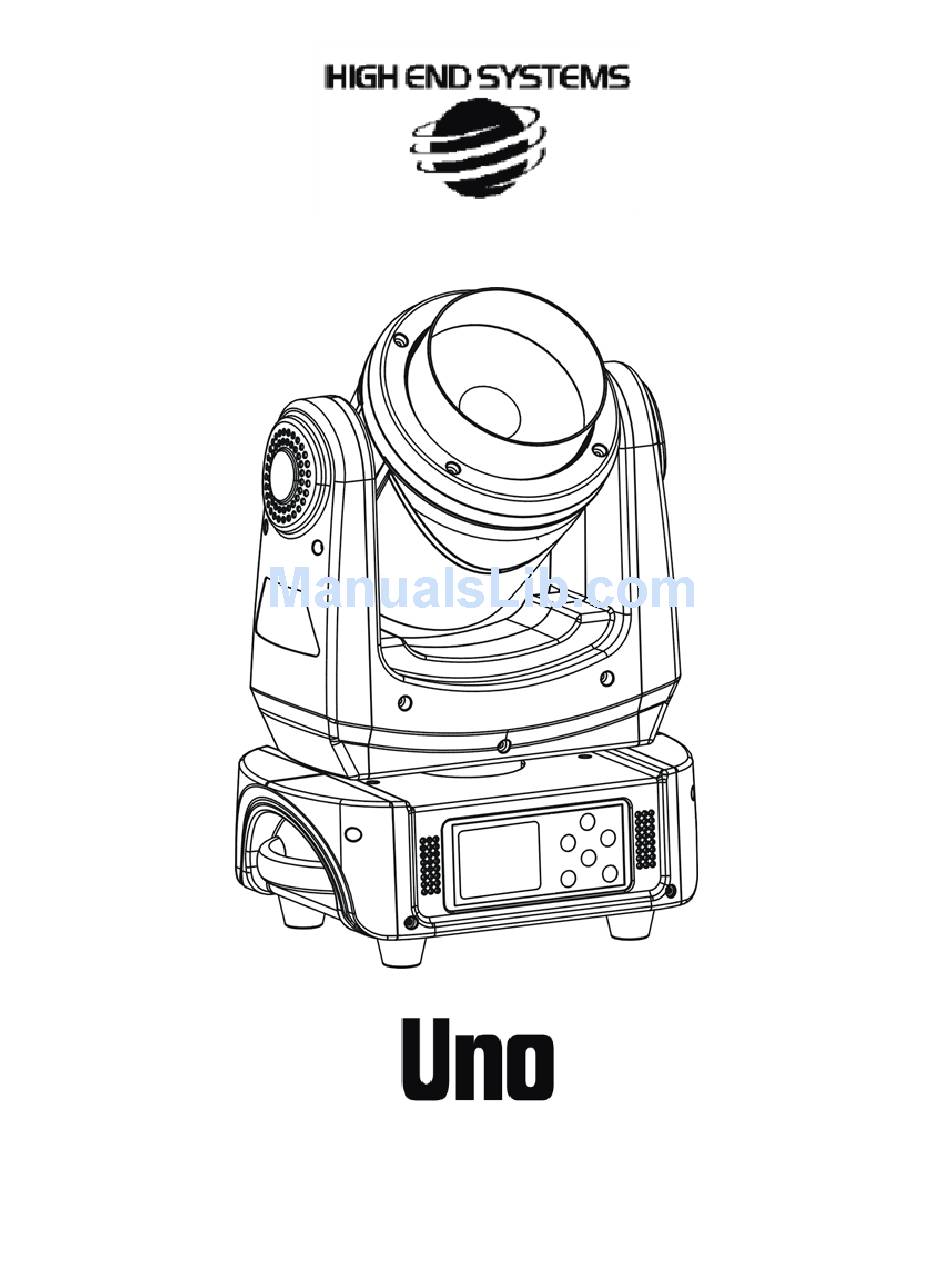

  • Page 1 User Manual Version 1.0.1...
  • Page 2: Table Of Contents

    Table of Contents Welcome ......................................3 Contacting High End Systems..............................4 Patents.....................................7 Warranty Information................................9 Important Safety Information..............................10 Fixture Overview ................................11 Features....................................12 Safety Considerations ..................................13 General Guidelines.................................14 Installation Instructions ............................15 ..........Technical Specifications.........
  • Page 3: Welcome

    Trademarks used in this text: High End Systems, Wholehog, and Lithopatterns are registered trademarks: and intellaspot, Internal Effects, the High End Systems globe logo, and the Hog logo are trademarks of Barco Lighting Systems, High End Systems, Inc.is a registered trademark. Belden is a registered trademark of Belden, Inc. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.
  • Page 4: Contacting High End Systems

    Contacting High End Systems ® Sales Department High End Systems, Inc. 2105 Gracy Farms Lane Austin, TX 78758 USA voice:512.836.2242 fax:512.837.5290 Toll Free: 800.890.8989 Customer Service High End Systems, Inc. 2105 Gracy Farms Lane Austin, TX 78758 USA voice:800.890.8989 fax: 512.834.9195 toll free: 800.890.8989...
  • Page 9: Warranty Information

    The manufacturer will make the final determination as to whether or not the unit is covered by warranty. A fixture must be returned in its original packaging. Any other parts returned to High End Systems must be packaged in a suitable manner to ensure the protection of such product unit or parts, and such package shall be clearly and prominently marked to indicate that the package contains returned Product units or parts and with an RMA number.
  • Page 10: Important Safety Information

    Important Safety Information Instructions pertaining to continued protection against fire, electric shock, and injury to persons are found throughout this manual. Please read all instructions prior to assembling, mounting, and operating this equipment. The following international caution and warning symbols appear in margins throughout this manual to highlight messages.
  • Page 11: Fixture Overview

    Fixture Overview 1: Lens 2: Display 3: Left-button 4: Mode/Esc-button 5: Down-button 6: ENTER-button 7: Right-button 8: Up-button 9: Handle 10: Fuse 11: Power out 12: Power in 13: 5 pin - DMX out 14: 5 pin - DMX in...
  • Page 12: Features

    Features •60W high power LEDs •Extremely Long Life:50,000 Hr and low power consumption. •DMX channel mode: 15 channels. •Pan/tilt movement: 16 bit resolution For smooth and precise resolution. Pan: 540° Tilt: 265°movement. High speed of pan/tilt movement, speed of pan/tilt movement is adjustable. Scan position memory, auto reposition after unexpected movement.
  • Page 13: Safety Considerations

    Safety Considerations This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. Important: Damages caused by the disregard of this user manual are not subject to warranty.
  • Page 14: General Guidelines

    General Guidelines • This device is a lighting effect for professional use on stages, theaters, or other professional installations, etc., the device was designed for indoor use only. • This fixture is only allowed to be operated with the max alternating current which stated in the technical specifications printed on the fixture.
  • Page 15: Installation Instructions

    Installation Instructions • The installation must always be secured with a secondary safety attachment, e.g. an appropriate safety cable. • The installation of the effect has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.
  • Page 16: Technical Specifications

    Technical Specifications • Power supply: AC 100-240V~,50/60Hz • Power consumption: 110W • Packing dimensions: 31.5x24.5x46cm • Net weight: 5.5 KGS • Gross weight: 10.5 KGS...
  • Page 17: Mounting Instructions

    Mounting Be sure this fixture is kept at least 0.5m away from any flammable materials (decoration etc.). Always use and install the supplied safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails. Overhead mounting requires extensive experience, including amongst others calculating working load limits, a fine knowledge of the installation material being used, and periodic safety inspection of all installation material and the fixture.
  • Page 18: Dmx Control Connections

    DMX Control Connection Connect the provided XLR cable to the female 5-pin XLR output of your controller and the other side to the male 5-pin XLR input of the moving head. You can chain multiple moving heads together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors.
  • Page 19: Dmx Start Address

    DMX Start Address All fixtures should be given a DMX starting address when using a DMX signal, so that the correct fixture responds to the correct control signals. This digital starting address is the channel number from which the fixture starts to “listen” to the digital control information sent out from the DMX controller.
  • Page 20: Control Board

    Control Board...
  • Page 21: Control Board Functions

    Control Board Functions Address With this function, you can adjust the desired DMX-address via the Control Board. Access the main menu. Tap the <Up/Down> button until ”Set DMX Address” is displayed. Press ENTER, the display will show “Set DMX Address”. Tap the <Up/Down>...
  • Page 22 3. Press <ENTER> the display will show “Timer PIN”, the time password is 038. 4. Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. Clr Last Run With this function, you can clear last run time of the fixture. The display shows “ON” or “OFF”, Press “Enter” to confirm.
  • Page 23 Software Version With this function, you can display the software version of the device. Tap <MODE/ESC>button, access the main menu Tap the <Up/Down>button until ” Info” is displayed. Press ENTER, the display will show “Info”. Press <Up/Down> the display will show “Software Ver”. Press<ENTER>...
  • Page 24 This device is RDM ready. RDM stands for "remote device management" and makes remote control of devices connected to the DMX-bus. ANSI E1.20-2006 by ESTA specifies the RDM standard as an extension of the DMX512 protocol. Manual settings like adjusting the DMX starting address are no longer needed. This is especially useful when the device is installed in a remote area.
  • Page 25 1. Tap <MODE/ESC>button, access the main menu Tap the <Up/Down>button until ” Test” is displayed. Press ENTER, the display will show “Test”. 2. The display show “Reset All”, Press <Up/Down> the display will show “Reset Pan & Tilt”. 3. Press <ENTER>; to confirm or press <MODE/ESC>; to return to the main menu. Test channel With this function you can test each channel on its (correct) function.
  • Page 26: Preset Programming And Playback

    Preset Programming and Playback Preset Play Back DMX Control Tap <MODE/ESC>button, access the main menu Tap the&<Up/Down>button until ” Preset” is displayed. Press ENTER, the display will show “Preset”. Tap the <Up/Down>button until the display will show “PlayBack”. Press ENTER, the display will show “PlayBack”. 2....
  • Page 27 Excursion: A Master unit can send up to 3 different data groups to the Slave units, i.e. a Master unit can start 3 different Slave units, which run 3 different programs. The Master unit sends the 3 program parts in a continuous loop. The Slave unit receives data from the Master unit according to the group which the Slave unit was assigned to.
  • Page 28 4. Program selection for Edit Program • Select “Edit program” by turning the encoder. • Press the Enter button to confirm. • Select “Edit program” by turning the encoder. • Press the Enter button to confirm. • Turn the encoder to select the desired program. With this function you can edit specific scenes into a specific program. •...
  • Page 29: Dmx Protocol

    DMX Protocol...
  • Page 33: Error Codes

    Error codes When you turn on the fixture, it will make a reset at first. The display may show the “Err channel is XX” message while there are problems with one or more channels. “XX” stands for channel 1, 2, 3, 4, 5, 6 who has the testing sensor for positioning. For example, when the display shows “Err channel is Pan movement”, it means there is some error in channel 1.
