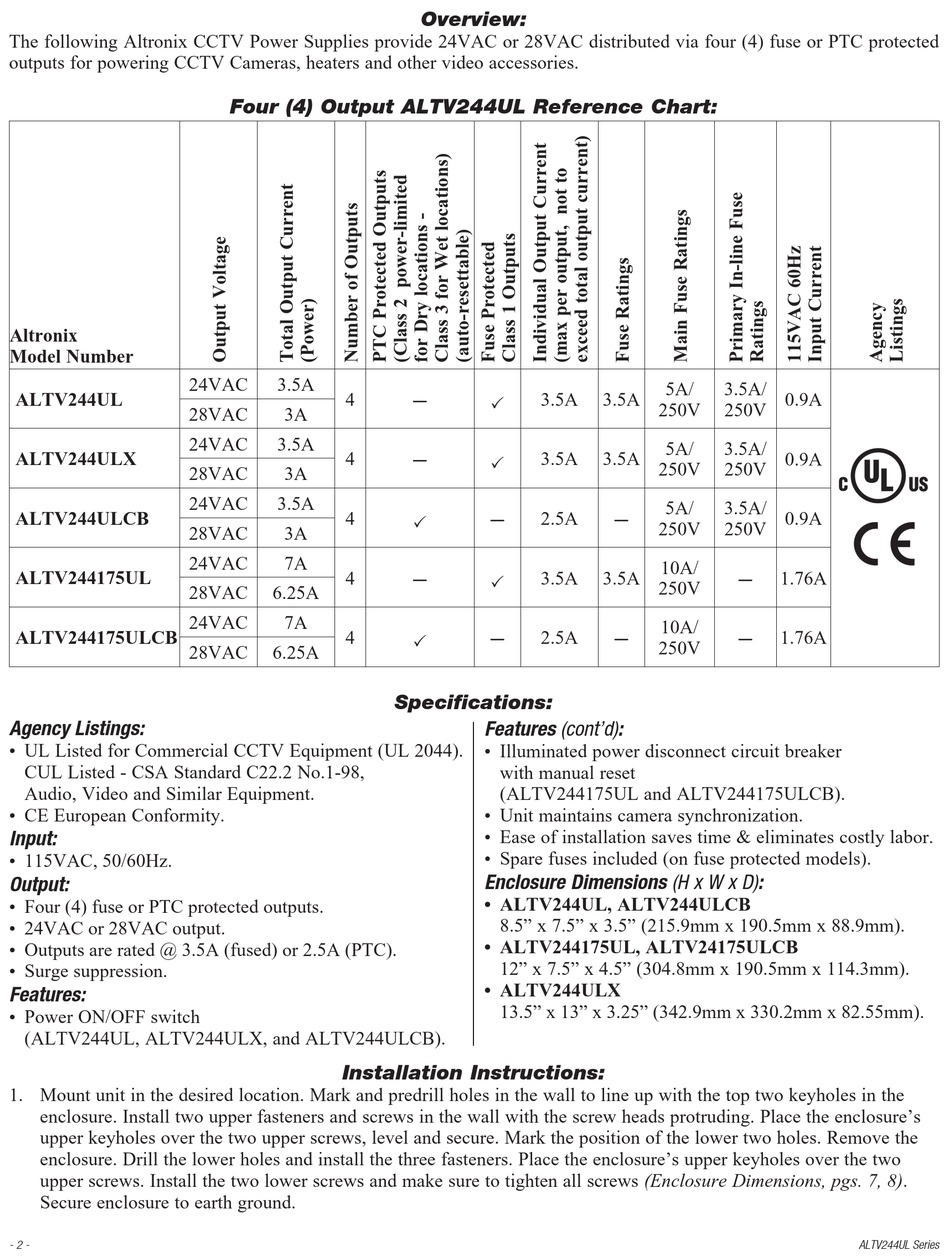

Specifications; Installation Instructions - Altronix ALTV244UL Installation Manual

The following Altronix CCTV Power Supplies provide 24VAC or 28VAC distributed via four (4) fuse or PTC protected
outputs for powering CCTV Cameras, heaters and other video accessories.
Altronix
Model Number
ALTV244UL
ALTV244ULX
ALTV244ULCB
ALTV244175UL
ALTV244175ULCB
Agency Listings:
• UL Listed for Commercial CCTV Equipment (UL 2044).
CUL Listed - CSA Standard C22.2 No.1-98,
Audio, Video and Similar Equipment.
• CE European Conformity.
Input:
• 115VAC, 50/60Hz.
Output:
• Four (4) fuse or PTC protected outputs.
• 24VAC or 28VAC output.
• Outputs are rated @ 3.5A (fused) or 2.5A (PTC).
• Surge suppression.
Features:
• Power ON/OFF switch
(ALTV244UL, ALTV244ULX, and ALTV244ULCB).
1. Mount unit in the desired location. Mark and predrill holes in the wall to line up with the top two keyholes in the
enclosure. Install two upper fasteners and screws in the wall with the screw heads protruding. Place the enclosure's
upper keyholes over the two upper screws, level and secure. Mark the position of the lower two holes. Remove the
enclosure. Drill the lower holes and install the three fasteners. Place the enclosure's upper keyholes over the two
upper screws. Install the two lower screws and make sure to tighten all screws (Enclosure Dimensions, pgs. 7, 8).
Secure enclosure to earth ground.
- 2 -
Four (4) Output ALTV244UL Reference Chart:
24VAC 3.5A
4
28VAC 3A
24VAC 3.5A
4
28VAC 3A
24VAC 3.5A
4
28VAC 3A
24VAC 7A
4
28VAC 6.25A
24VAC 7A
4
28VAC 6.25A

Installation Instructions:

Overview:
--- 3.5A
P
--- 3.5A
P
--- 2.5A
P
--- 3.5A
P
--- 2.5A
P

Specifications:

Features (cont'd):
• Illuminated power disconnect circuit breaker
with manual reset
(ALTV244175UL and ALTV244175ULCB).
• Unit maintains camera synchronization.
• Ease of installation saves time & eliminates costly labor.
• Spare fuses included (on fuse protected models).
Enclosure Dimensions (H x W x D):
• ALTV244UL, ALTV244ULCB
8.5" x 7.5" x 3.5" (215.9mm x 190.5mm x 88.9mm).
• ALTV244175UL, ALTV24175ULCB
12" x 7.5" x 4.5" (304.8mm x 190.5mm x 114.3mm).
• ALTV244ULX
13.5" x 13" x 3.25" (342.9mm x 330.2mm x 82.55mm).
5A/ 3.5A/
3.5A
250V 250V
5A/ 3.5A/
3.5A
250V 250V
5A/ 3.5A/
---
250V 250V
10A/
3.5A --- 1.76A
250V
10A/
--- --- 1.76A
250V
0.9A
0.9A
0.9A
ALTV244UL Series
