Altronix R2432300UL Installation Manual page 4

For fuse protected models:
3.5A
Replace fuses with the same type and rating 3.5A/250V.
250V
The lightning flash with arrow head symbol within an equilateral triangle is intended to alert the user to the
presence of an insulated "DANGEROUS VOLTAGE" within the products enclosure that may be of sufficient
magnitude to constitute an electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
3.25"H x 19.125"W x 8.5"D
3.125"
8.5"
.75"
Altronix is not responsible for any typographical errors.
Altronix Corp.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A.
IIR2432ULRackMountSeries
CAUTION: To reduce the risk of electric shock do not open enclosure. There are
no user serviceable parts inside. Refer servicing to qualified service personnel.

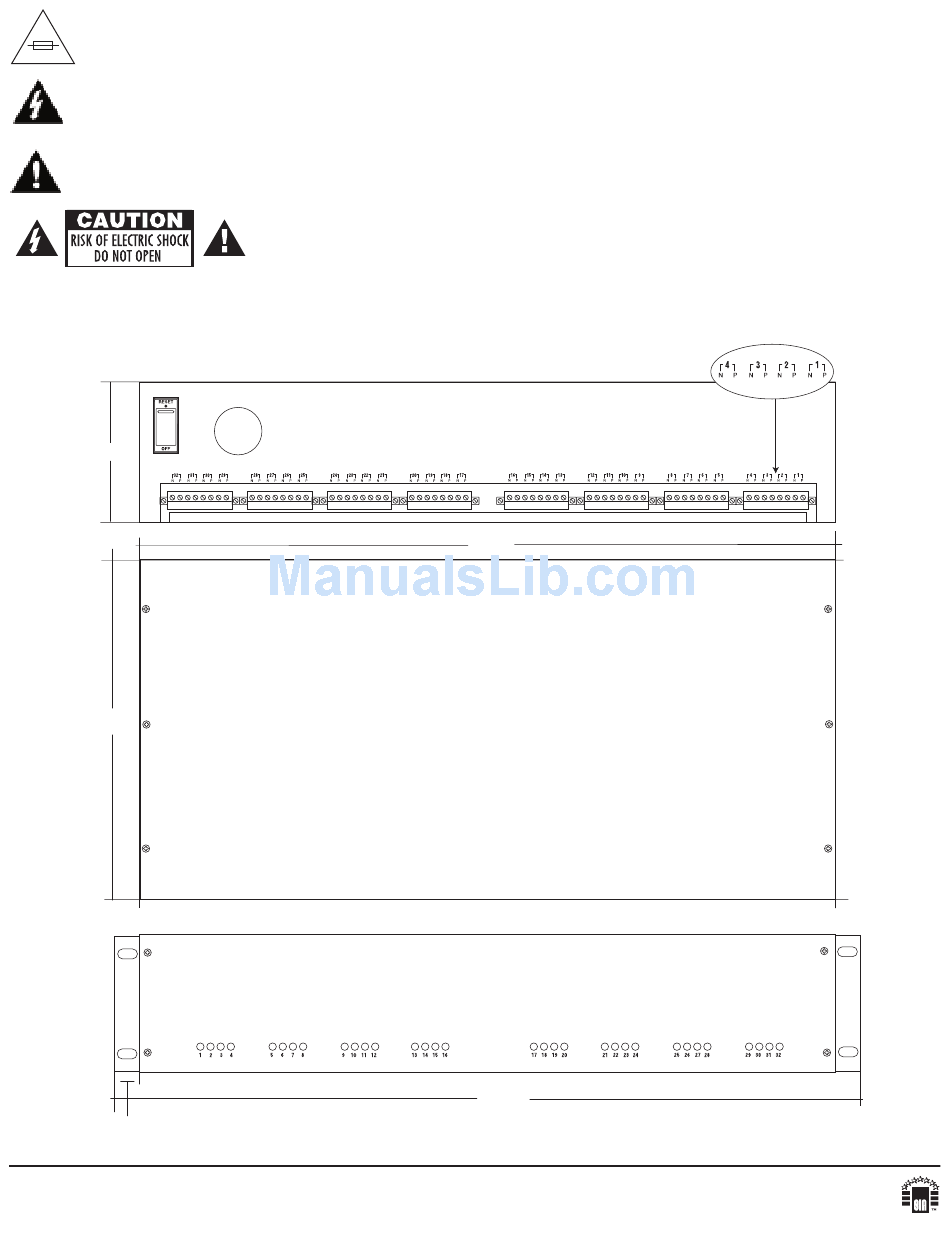

Rack Mechanical Drawing & Dimensions:
View from back
View from front
FACEPLATE
B18D
BACK
17.625"
BOTTOM
19.125"
- 4 -
