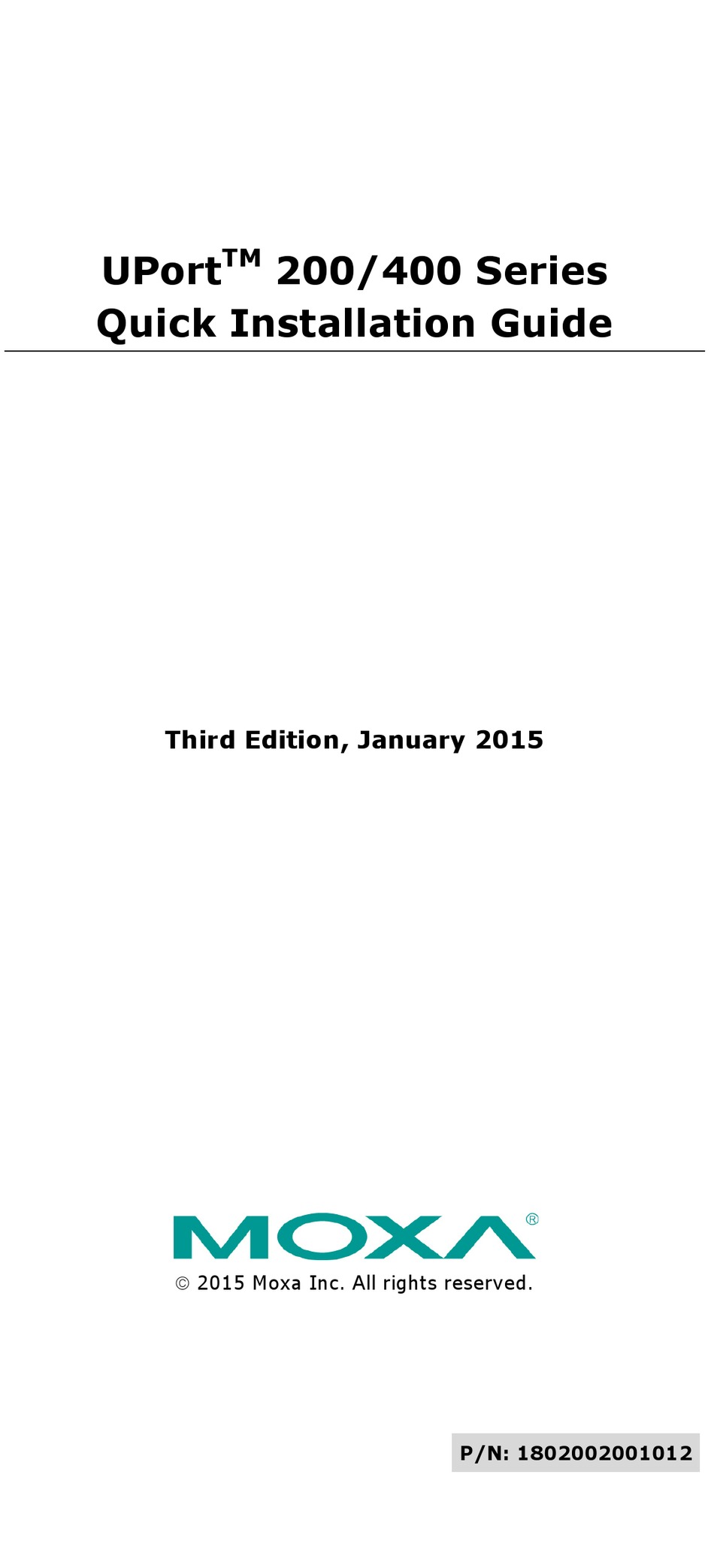

- Page 1 UPort 200/400 Series Quick Installation Guide Third Edition, January 2015 2015 Moxa Inc. All rights reserved. P/N: 1802002001012...
- Page 2 Overview The UPort™ 200/400 series industrial-grade USB 2.0 hubs expand 1 USB port to 4 or 7 ports. The hubs are designed to provide true USB 2.0 Hi-Speed 480 Mbps data transmission through each port, even for heavy-load applications. As USB-IF certified products, the UPort™ 200/400 series have passed high speed compliance testing and are eligible to bear the USB logo.
-
Page 3: Package Checklist
Package Checklist The UPort™ 200/400 series package should contain the following items. If any of these items is missing or damaged, please contact Moxa for replacement. • UPort™ 200 or UPort™ 400: 4-port or 7-port industrial-grade USB • Power adaptor (Provide only for Standard Model) •... - Page 4 LED Indicators The LED indicators on the panel are used to display status as follows: Type Color Meaning Ready Green Steady on: Power is on and UPort™ is functioning normally 1. No device connected 2. Device cannot be detected Fault Steady on: Device over current is detected Power Yellow...
- Page 5 DIN-Rail Mounting The UPort™ 400 series comes with DIN-Rail kit to allow installation on a DIN-Rail. DIN-Rail attachments can be purchased separately to attach the product to a DIN-Rail. The DIN-Rail attachments should be oriented with the metal springs on top. Dimensions UPort - 5 -...
- Page 6 UPort UPort - 6 -...
-
Page 7: Specifications
UPort Specifications USB Interface Compliance: USB 1.1/2.0 compliant Upstream: 1 USB port, Type B connector Downstream: UPort™ 204/404: 4 USB ports, Type A connectors UPort™ 207/407: 7 USB ports, Type A connectors Speed: 480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB) Physical Characteristics Housing: UPort™... -
Page 8: Compliance Notice
Power Requirements Input Voltage: 12 to 40 VDC (external power) Power Consumption: UPort™ 404: 1300 mA @ 12 VDC, 690 mA @ 24 VDC, 470 mA @ 36 VDC UPort™ 407: 2300 mA @ 12 VDC, 1130 mA @ 24 VDC, 790 mA @ 36 VDC UPort™... - Page 9 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel: +886-2-8919-1230 Fax: +49-89-3 70 03 99-99 Fax: +886-2-8919-1231 - 9 -...
