Moxa Technologies UPort 1200 Quick Installation Manual

1200/1400/1600
USB-to-Serial Hub
Quick Installation Guide
Second Edition, November 2006

1. Overview

UPort is the brand name of MOXA's new USB-to-serial product line,
which provides a wide range of products and solutions to extend
Windows COM ports via the PC's USB port. Important features of UPort
products include support for hi-speed (480 Mbps) USB 2.0, Moxa CPU,
Moxa UART, the ability to assign COM port numbers, magnet
accessories, and mini female DB9 to terminal block. These features make
the UPort products easy to use and maintain.
The UPort 1200/1400/1600 line of USB-to-serial hubs includes the
following models:
• UPort 1250
2-port RS-232/422/485 USB-to-serial hub
• UPort 1250I
2-port RS-232/422/485 USB-to-serial hub w/
isolation protection
• UPort 1410
4-port RS-232 USB-to-serial hub
• UPort 1450
4-port RS-232/422/485 USB-to-serial hub
• UPort 1450I
4-port RS-232/422/485 USB-to-serial hub w/
isolation protection
• UPort 1610-8
8-port RS-232 USB-to-serial hub
• UPort 1650-8
8-port RS-232/422/485 USB-to-serial hub
• UPort 1610-16
16-port RS-232 USB-to-serial hub
• UPort 1650-16
16-port RS-232/422/485 USB-to-serial hub
Before connecting the UPort USB-to-serial hubs to your computer's USB
port, we recommend installing the UPort driver first. To do this, follow
the installation procedure described in Section 3.
The installation procedure described in Section 3 was done on a PC
running Windows 2000 (x86). Windows XP and 2003 (32-bit and 64-bit)
driver installations are the same. UPort can be connected to any upstream
type A USB port that is on the PC host or on an upstream hub. UPort is
hot pluggable, and therefore there is no need to power down your
computer prior to installation.
After installing the driver, connect the UPort to an upstream host or hub.
The Found New Hardware wizard will locate the appropriate drivers
automatically. Once the drivers are found, various windows will pop up
as UPort's serial port is being installed.
— 1 —
When the Found New Hardware wizard finishes installing UPort, use
the operating system's Device Manager to check and/or modify the port
settings. The new COM port will be listed under Ports (COM & LPT).

2. Package Checklist

Before installing the UPort, verify that the package contains the following
items:
• UPort 1200/1400/1600 USB-to-serial hub
• 1 USB cable
• Document and Software CD-ROM
• UPort 1200/1400/1600 Quick Installation Guide
• Power adaptor (for UPort 1200/1450I/1600-8) or power cord (for
UPort 1600-16)
Notify your sales representative if any of the above items are missing or
damaged.

3. Installing the UPort 1200/1400/1600 Driver

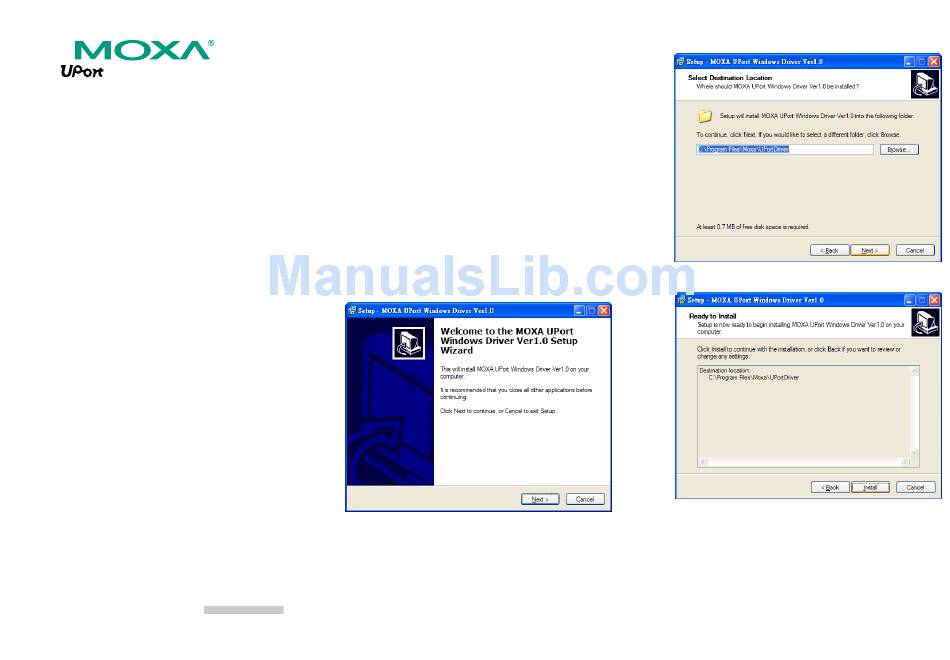

1. Run the Setup program located on the UPort 1200/1400/1600
Document and Software CD-ROM. Click Next to Start installing the
driver.
P/N:1802014000100
— 2 —
2. Click Next to install the driver in the indicated folder.
3. Click Install to proceed with the installation.
