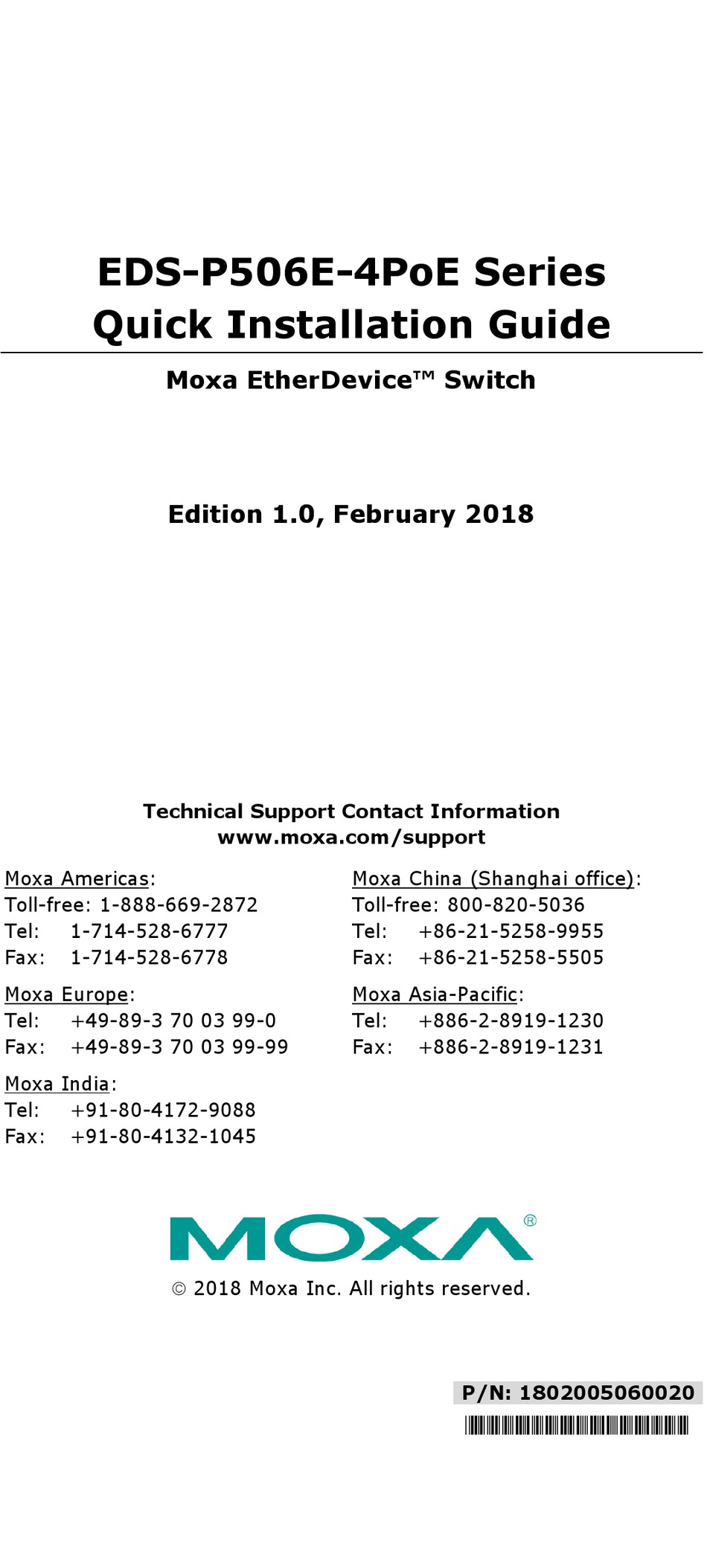

EDS-P506E-4PoE Series
Quick Installation Guide
Moxa Americas:
Toll-free: 1-888-669-2872
Tel:
1-714-528-6777
Fax:
1-714-528-6778
Moxa Europe:
Tel:
+49-89-3 70 03 99-0
Fax:
+49-89-3 70 03 99-99
Moxa India:
Tel:
+91-80-4172-9088
Fax:
+91-80-4132-1045
Moxa EtherDevice™ Switch
Edition 1.0, February 2018
Technical Support Contact Information
www.moxa.com/support
 2018 Moxa Inc. All rights reserved.
Moxa China (Shanghai office):
Toll-free: 800-820-5036
Tel:
+86-21-5258-9955
Fax:
+86-21-5258-5505
Moxa Asia-Pacific:
Tel:
+886-2-8919-1230
Fax:
+886-2-8919-1231
P/N: 1802005060020
*1802005060020*

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EtherDevice EDS-P506E-4PoE Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Moxa Technologies EtherDevice EDS-P506E-4PoE Series

  • Page 1 EDS-P506E-4PoE Series Quick Installation Guide Moxa EtherDevice™ Switch Edition 1.0, February 2018 Technical Support Contact Information www.moxa.com/support Moxa Americas: Moxa China (Shanghai office): Toll-free: 1-888-669-2872 Toll-free: 800-820-5036 Tel: 1-714-528-6777 Tel: +86-21-5258-9955 Fax: 1-714-528-6778 Fax: +86-21-5258-5505 Moxa Europe: Moxa Asia-Pacific: Tel: +49-89-3 70 03 99-0 Tel: +886-2-8919-1230...
  • Page 2: Package Checklist

    Package Checklist The EDS-P506E-4PoE is shipped with the following items. If any of these items are missing or damaged, please contact your customer service representative for assistance. • EDS-P506E-4PoE Ethernet switch • USB cable • Protective caps for unused ports •...
  • Page 3 Panel Views of EDS-P506E-4PoE Series Front Panel 1. 100BaseT(X) LED indicator 2. 10BaseT(X) LED indicator 3. 10/100 60W PoE+ Ports Port 1 to 4 4. System status LED: • STATE LED indicator • PWR1 LED indicator • PWR2 LED indicator •...
  • Page 4: Mounting Dimensions

    Mounting Dimensions Unit = mm (inch) - 4 -...
  • Page 5: Din-Rail Mounting

    DIN-Rail Mounting The metal DIN-rail kit is fixed to the back panel of the EDS-P506E-4PoE Series when you take it out of the box. Mount the EDS-P506E-4PoE Series on corrosion-free mounting rails that meet the EN 60715 standard. Installation STEP 1—Insert the upper lip of the DIN rail into the DIN-rail mounting kit.
  • Page 6: Wiring Requirements

    STEP 2—Mounting the EDS-P506E-4PoE Series on the wall requires 4 screws. Use the EDS-P506E-4PoE Series, with wall mount plates attached, as a guide to mark the correct locations of the 4 screws. The heads of the screws should be less than 6.0 mm in diameter, and the shafts should be less than 3.5 mm in diameter, as shown in the figure on at right.
  • Page 7: Wiring The Relay Contact

    ATTENTION Safety First! Be sure to disconnect the power cord before installing and/or wiring your Moxa EtherDevice Switch. Calculate the maximum possible current in each power wire and common wire. Observe all electrical codes dictating the maximum current allowable for each wire size. If the current goes above the maximum ratings, the wiring could overheat, causing serious damage to your equipment.
  • Page 8: Wiring The Redundant Power Inputs

    Wiring the Redundant Power Inputs (12/24/48 VDC) The EDS-P506E-4PoE Series has two sets of power inputs—power input 1 and power input 2. The top and front views of one of the terminal block connectors are shown here. STEP 1: Insert the negative/positive DC wires into the V-/V+ terminals, respectively.
  • Page 9: Communication Connections

    NOTE The wire must be able to withstand at least 105°C and the torque value should be 4.5 lb-in (0.51 N-m). Do not use excessive force when fixing the wiring. Communication Connections Each EDS-P506E-4PoE series switch has 4 types of communication ports: •...
  • Page 10: 10/100Baset(X) Rj45 Pinouts

    USB Storage Port (Type A Connector) Pinouts Description VCC (+5V) D– (Data -) D+ (Data+) GND (Ground) 10/100BaseT(x) RJ45 Pinouts MDI Port Pinouts MDI-X Port Pinouts Signal Signal 1000BaseT Ethernet Port Connection 1000BaseT data is transmitted on differential TRD+/- signal pairs over copper wires.
  • Page 11: Reset Button

    100/1000BaseSFP (mini-GBIC) Fiber Port The Gigabit Ethernet ports on the EDS-P506E-4PoE Series are 100/1000BaseSFP Fiber ports, which require using the 100M or 1G mini-GBIC fiber transceivers to work properly. Moxa provides completed transceiver models for different distance requirement. The concept behind the LC port and cable is quite straightforward. Suppose that you are connecting devices I and II;...
  • Page 12: Turbo Ring Dip Switch Settings

    Turbo Ring DIP Switch Settings EDS-P506E-4PoE Series are plug-and-play managed redundant Ethernet switches. The proprietary Turbo Ring protocol was developed by Moxa to provide better network reliability and faster recovery time. Moxa Turbo Ring’s recovery time is less than 300 ms (Turbo Ring) or 50 ms (Turbo Ring V2) —compared to a 3- to 5-minute recovery time for commercial switches—decreasing the possible loss caused by network failures in an industrial setting.
  • Page 13: Led Indicators

    NOTE You must enable the Turbo Ring function first before using the DIP switch to activate the Master and Coupler functions. NOTE If you do not enable any of the EDS-P506E-4PoE Series switches to be the Ring Master, the Turbo Ring protocol will automatically choose the EDS-P506E-4PoE Series with the smallest MAC address range to be the Ring Master.
  • Page 14 Color Status Description Turbo Ring or the Turbo Chain is down. 3. The switch is set as Turbo Chain’s Member and the corresponding chain port is down. 1. The switch is not the Master of this Turbo Ring. 2. This switch is set as a Member of the Turbo Chain.
  • Page 15: Specifications

    Color Status Description using the 802.3af standard Indicators Blinking The PoE power has been shut off 1 time /s because the power budget is too low. No PoE power output Blinking PoE port is connected to PoE device, 1 time /s using the 4 pair 60W mode GREEN PoE port is connected to PoE device,...
  • Page 16: Physical Characteristics

    PoE Output Power 15.4W in 802.3af, 30W in 802.3at, 36W in high power mode, 60W in 4-Pair PoE mode PoE Output Current 350 mA in 802.3af, 600 mA in 802.3at, 720 mA in 2-pair high power mode, 1200mA in 4-Pair PoE mode Overload Current Present...
  • Page 17 Warranty Warranty 5 years Address of FL. 4, No.135, Lane 235, Baoqiao Rd. Xindian Dist., Manufacturer New Taipei City, Taiwan ATTENTION This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions: 1. This device may not cause harmful interference. 2.
