1504B Barcode Scanner

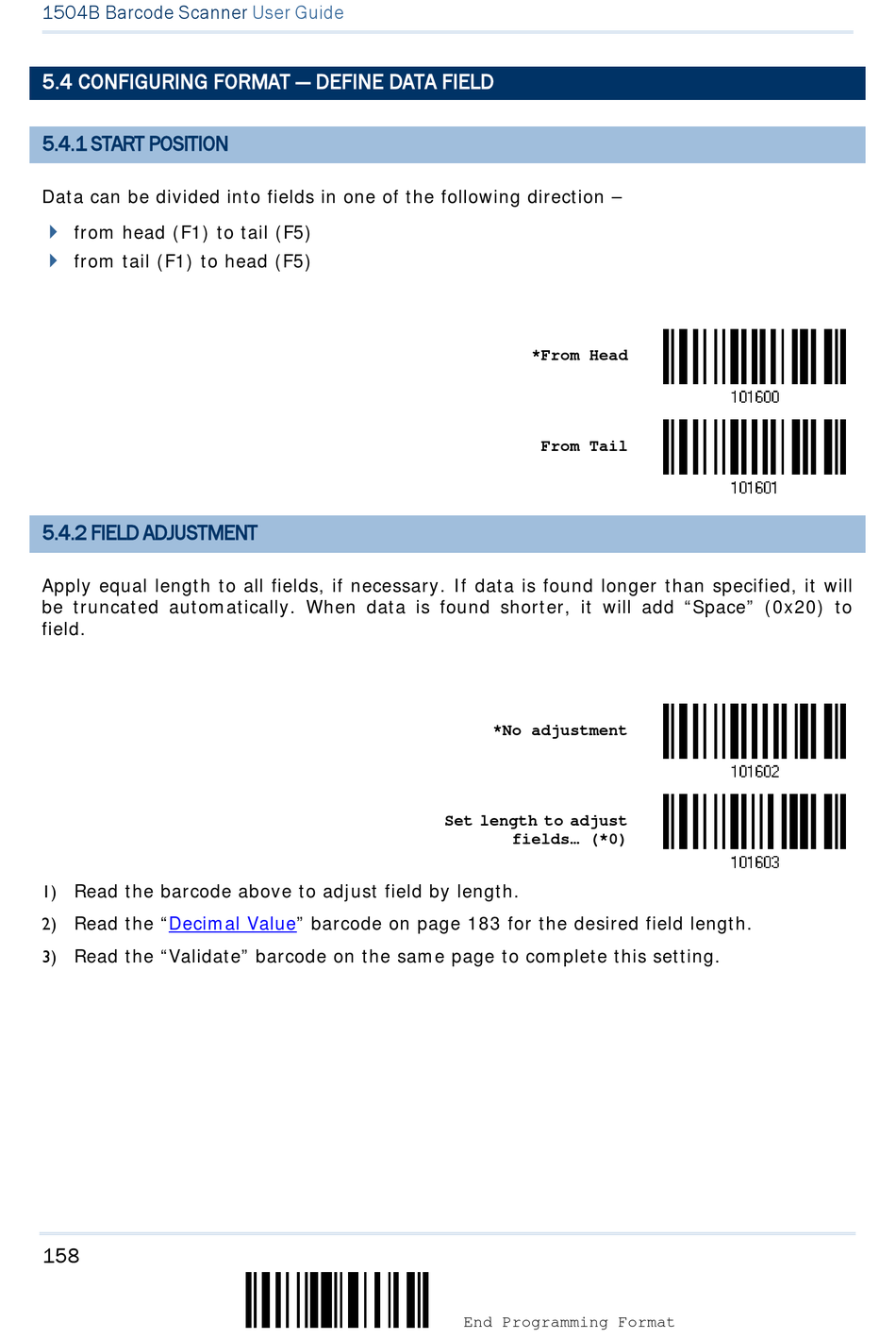

5.4 CONFIGURING FORMAT — DEFINE DATA FIELD

5.4.1 START POSITION

Data can be divided into fields in one of the following direction –
from head (F1) to tail (F5)

from tail (F1) to head (F5)


5.4.2 FIELD ADJUSTMENT

Apply equal length to all fields, if necessary. If data is found longer than specified, it will
be truncated automatically. When data is found shorter, it will add "Space" (0x20) to
field.
1) Read the barcode above to adjust field by length.
2) Read the "Decimal
3) Read the "Validate" barcode on the same page to complete this setting.
158
User Guide
Value" barcode on page 183 for the desired field length.
*From Head
From Tail
*No adjustment
Set length to adjust
fields... (*0)
End Programming Format
