1504B Barcode Scanner

2.2 RS-232

Use the RS-232 cable to connect the scanner to the serial port of PC and join the power
adaptor to the RS-232 connector. The associated RS-232 parameters must match those
configured on the computer. The scanned data will be transmitted to the serial port.
RS-232 Settings
Baud Rate, Data Bit, Parity, Stop Bit
Flow Control
Inter-Character Delay
Inter-Function Delay
ACK/NAK Timeout
ACK/NAK Beep

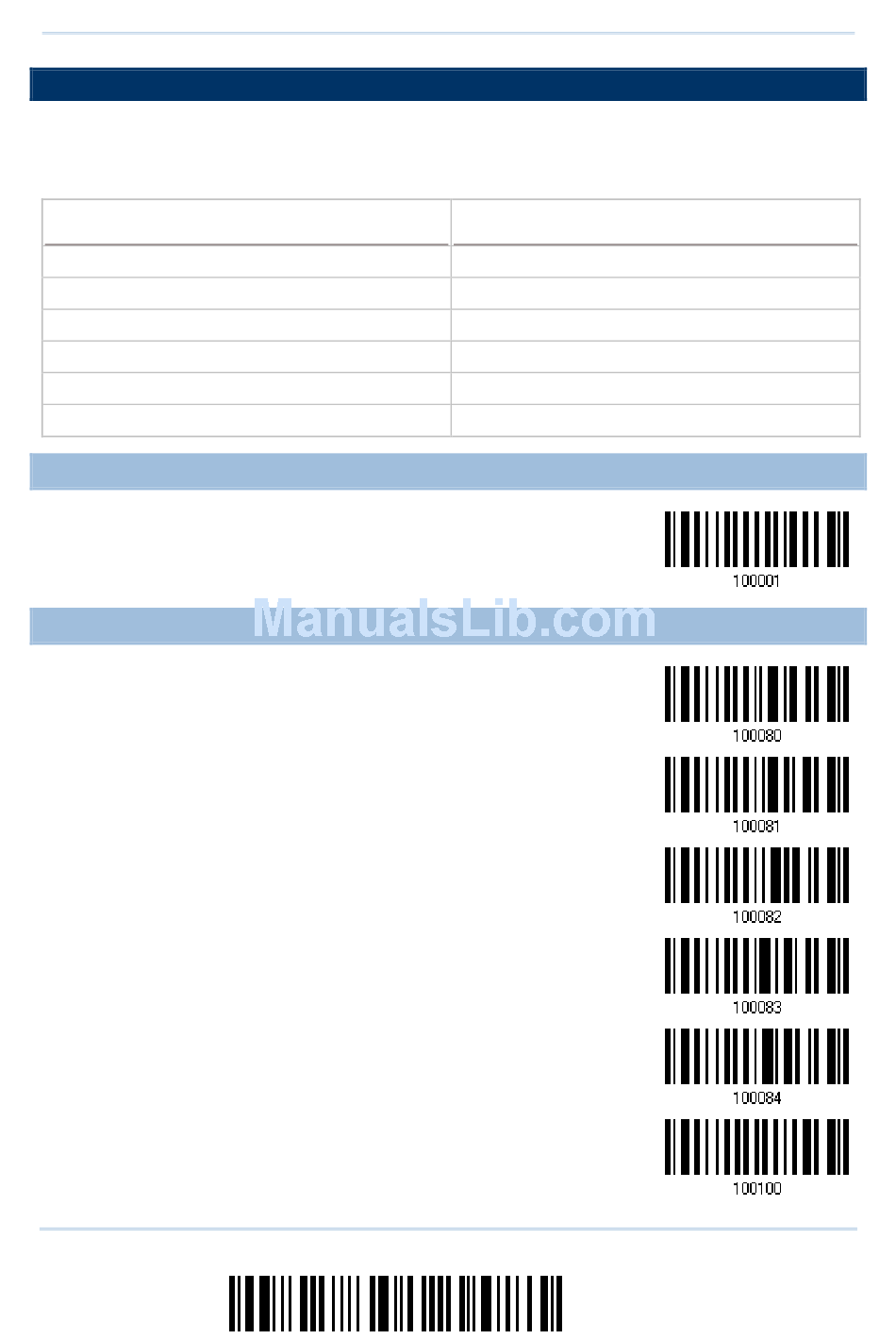

2.2.1 ACTIVATE RS-232 INTERFACE

2.2.2 BAUD RATE

46
User Guide
Defaults
115200 bps, 8 bits, No parity, 1 stop bit
None
0 (ms)
0 (ms)
0
Disable
Activate RS-232
Interface
*115200 bps
57600 bps
38400 bps
19200 bps
9600 bps
4800 bps
Enter Setup
