Mio Move
3.5

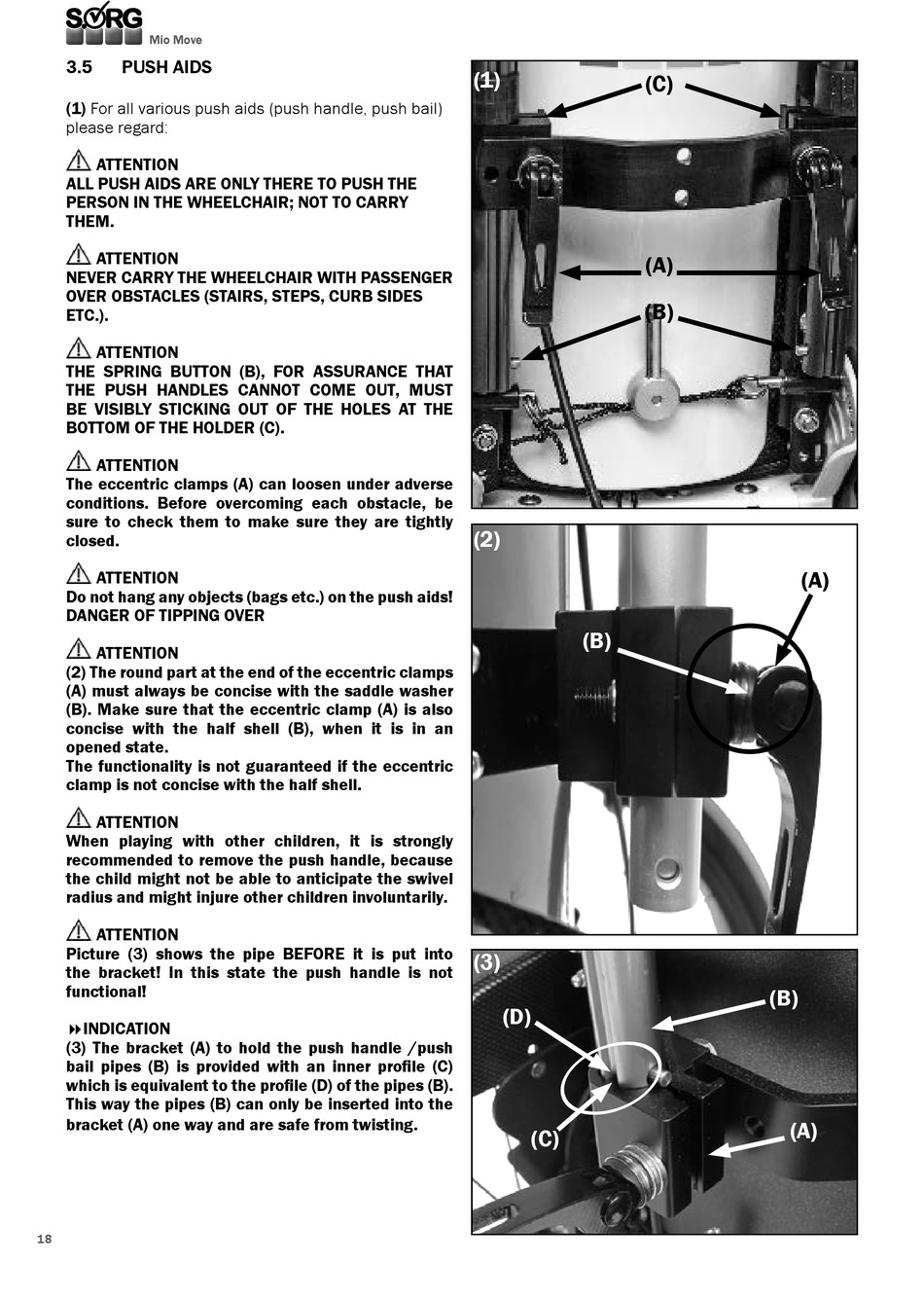

PUSH AIDS

(1) For all various push aids (push handle, push bail)
please regard:
ATTENTION
ALL PUSH AIDS ARE ONLY THERE TO PUSH THE
PERSON IN THE WHEELCHAIR; NOT TO CARRY
THEM.
ATTENTION
NEVER CARRY THE WHEELCHAIR WITH PASSENGER
OVER OBSTACLES (STAIRS, STEPS, CURB SIDES
ETC.).
ATTENTION
THE SPRING BUTTON (B), FOR ASSURANCE THAT
THE PUSH HANDLES CANNOT COME OUT, MUST
BE VISIBLY STICKING OUT OF THE HOLES AT THE
BOTTOM OF THE HOLDER (C).
ATTENTION
The eccentric clamps (A) can loosen under adverse
conditions. Before overcoming each obstacle, be
sure to check them to make sure they are tightly
closed.
ATTENTION
Do not hang any objects (bags etc.) on the push aids!
DANGER OF TIPPING OVER
ATTENTION
(2) The round part at the end of the eccentric clamps
(A) must always be concise with the saddle washer
(B). Make sure that the eccentric clamp (A) is also
concise with the half shell (B), when it is in an
opened state.
The functionality is not guaranteed if the eccentric
clamp is not concise with the half shell.
ATTENTION
When playing with other children, it is strongly
recommended to remove the push handle, because
the child might not be able to anticipate the swivel
radius and might injure other children involuntarily.
ATTENTION
Picture (3) shows the pipe BEFORE it is put into
the bracket! In this state the push handle is not
functional!
�INDICATION
(3) The bracket (A) to hold the push handle /push
bail pipes (B) is provided with an inner profile (C)
which is equivalent to the profile (D) of the pipes (B).
This way the pipes (B) can only be inserted into the
bracket (A) one way and are safe from twisting.
18
(1)
(C)
(A)
(B)
(2)
(B)
(3)
(D)
(C)
(A)
(B)
(A)
