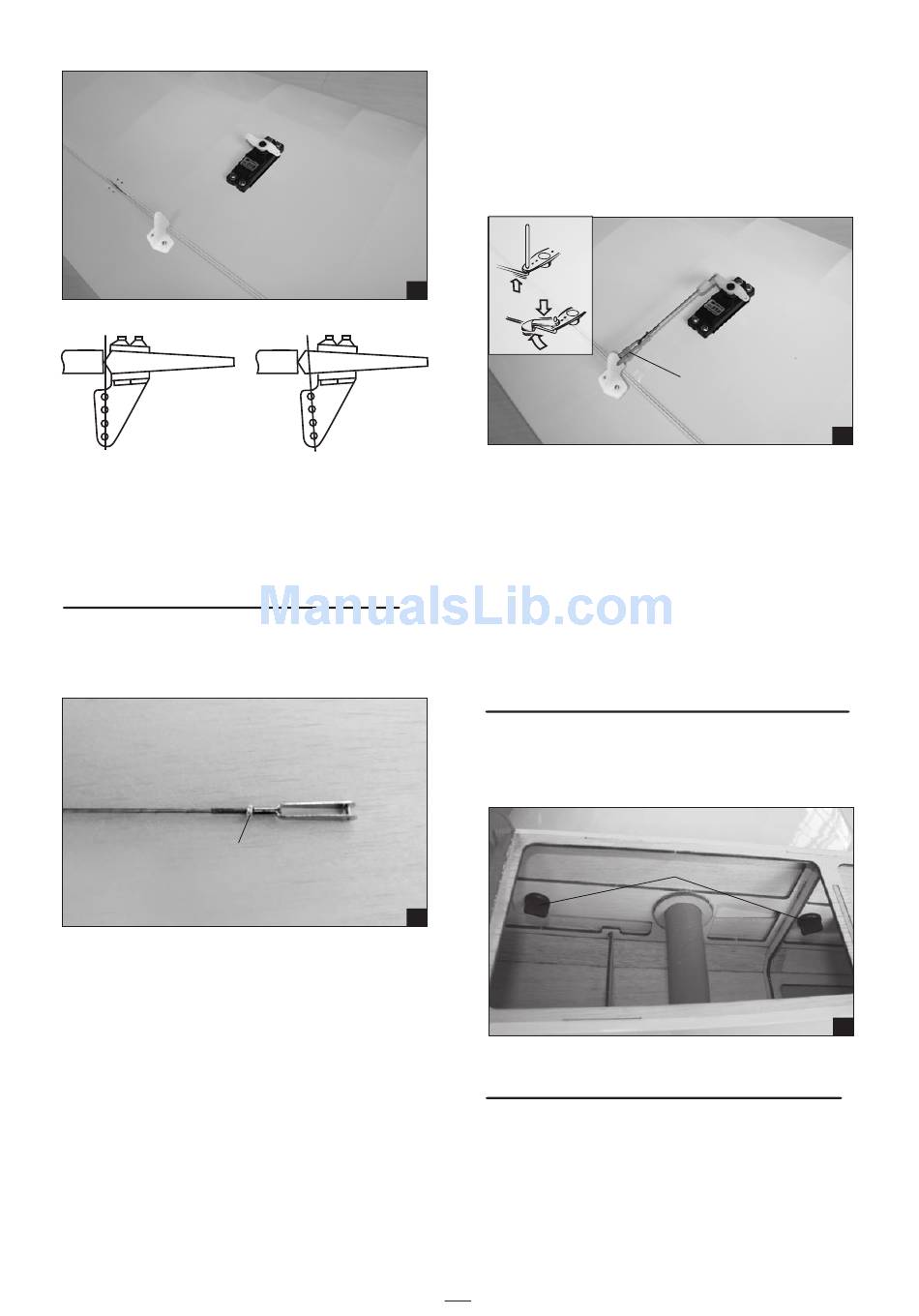

Phoenix Model Jupiter Ultra Series Pattern Instruction Manual page 5

RIGHT
3. Repeat step # 1 - # 2 to install the control horn
on the opposite aileron.
INSTALLING THE AILERON LINKAGES
1. Working with the aileron linkage for now, thread
one clevis at least 14 turns onto one of the
2mm x 180mm threaded wires.
Nut
2. Attach the clevis to the outer hole in the control
horn. Install a silicone tube on the clevis.
3. Locate one nylon servo arm, and using wire
cutters, remove all but one of the arms. Using a
1.6mm drill bit, enlarge the third hole out from
the center of the arm to accommodate the
aileron pushrod wire.
4. Plug the aileron servo into the receiver and
center the servo. Install the servo arm onto the
servo. The servo arm should be perpendicular
to the servo and point toward the middle of the
wing.
5. Center the aileron and hold it in place using a
couple of pieces of masking tape.
3
WRONG
4
3
6. With the aileron and aileron servo centered,
carefully place a mark on the aileron pushrod
wire where it crosses the hole in the servo arm.
7. Using pliers, carefully make a 90 degree bend
down at the mark made. Cut off the excess
wire, leaving about 4mm beyond the bend.
8. Insert the 90 degree bend down through the
hole in the servo arm. Install one nylon snap
keeper over the wire to secure it to the arm.
Install the servo arm retaining screw and
remove the masking tape from the aileron.
9. Repeat step # 4 - # 11 to install the second
aileron linkage. After both linkages are
completed, connect both of the aileron servo
leads using a Y-harness you have purchased
separately.
INSTALLING THE WING TO THE FUSELAGE
Attach the wings to the joiner tube and using the
nylon thumbscrews to secure the wing panels
to the fuselage.
Screw
HORIZONTAL STABILIZER INSTALLATION
PARTS REQUIRED
· (1) Horizontal stabilizer with Elevator halves.
1. Using a modeling knife, cut away the covering
from the fuselage for the stabilizer and remove .
Silicone Tube
5
