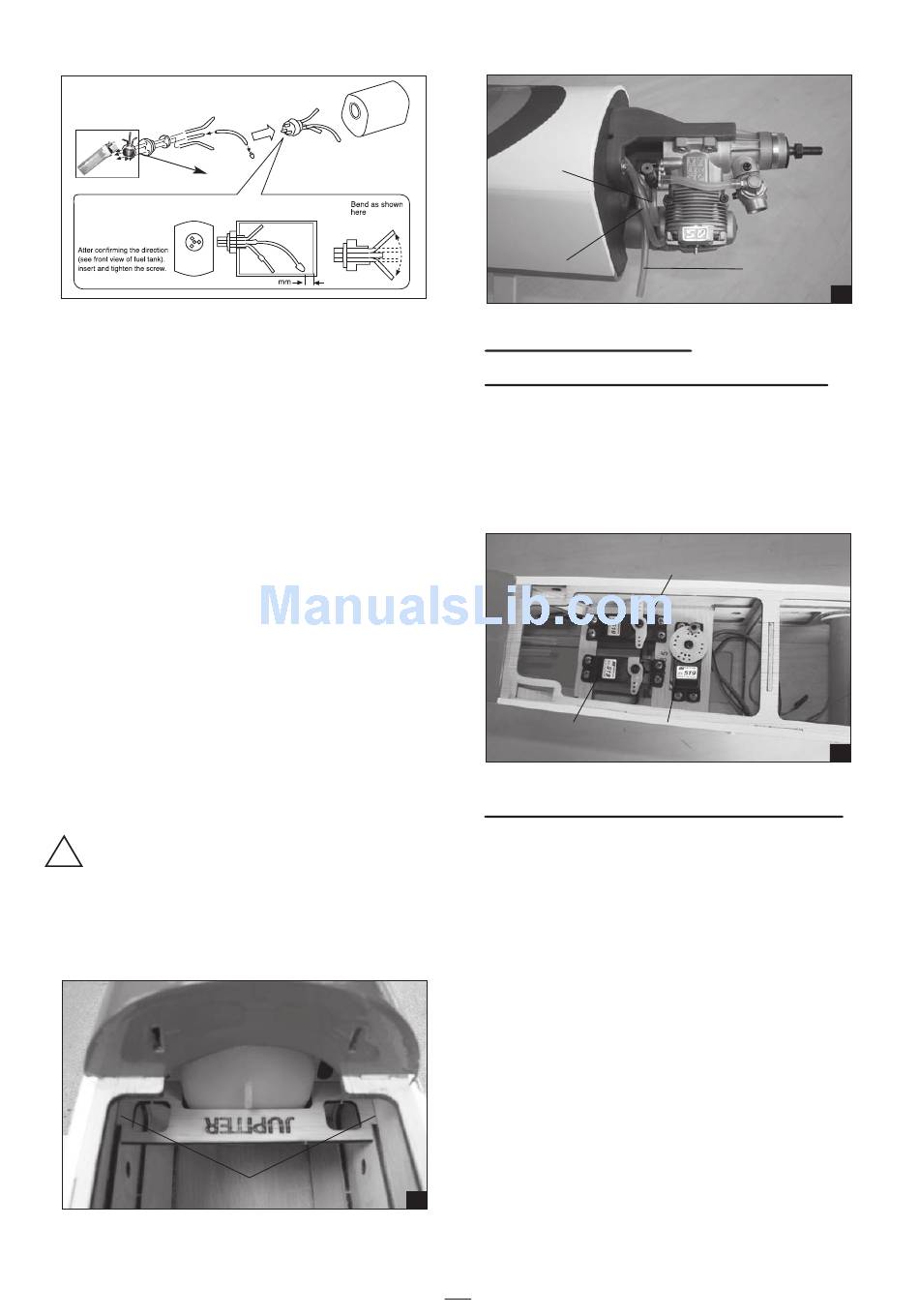

5. Test fit the stopper assembly into the tank. It
may be necessary to remove some of the
flashing around the tank opening using a
modeling knife. If flashing is present, make
sure none of it falls into the tank.
6. When satisfied with the alignment of the stopper
assembly tighten the 3mm x 20mm machine
screw until the rubber stopper expands and
seals the tank opening. Do not over tighten the
assembly as this could cause the tank to split.
7. Using a modeling knife, cut 3 lengths of fuel line
150mm long. Connect 2 lines to the 2 vent
tubes and 1 line to the fuel pickup tube in the
stopper.
8. Feed three lines through the fuel tank
compartment and through the pre-drilled hole in
the firewall. Pull the lines out from behind the
engine, while guiding the fuel tank into place.
Push the fuel tank as far forward as possible,
the front of the tank should just about touch the
back of the firewall.
Blow through one of the lines to ensure the fuel
lines have not become kinked inside the fuel
tank compartment. Air should flow through
easily.
!
Do not secure the tank into place permanently
until after balancing the airplane. You may
need to remove the tank to mount the battery in
the fuel tank compartment.
9. Secure the fuel tank using the plate of plywood
and glue it by C.A glue.
C.A glue
To carburator
To muffler
SERVO INSTALLATION
INSTALLING THE FUSELAGE SERVOS
1. Install the rubber grommets and brass collets
into the elevator, rudder and throttle servos.
Test fit the servos into the servo tray. Trim the
tray if necessary to fit your servos
2. Mount the servos to the tray using the mounting
screws provided with your radio system.
Rudder servo
INSTALLING THE ELEVATOR PUSHROD
PARTS REQUIRED
· (2) Wire pushrod
· (1) Domino connector
· (2) Clevis
· (2) Silicone tube
· (1) Nylon snap keeper
· (2) Nylon control horn w/plate
· (4) 2mm x 14mm sheet metal screw
· (2) Elevator pushrod
1. Locate the pushrod exit slot on the right side
and left side of the fuselage. It is located
slightly ahead and below the horizontal
stabilizer.
2. Carefully cut away the covering material from
the slot.
3. Working from inside the fuselage, slide the
threaded end of the pushrod until it reaches the
exit slot. Carefully reach in with a small screw
22
driver and guide the pushrod out of the exit
slot.
8
To vent Tube
Elevator servo
Throttle servo
23
24
