1Between Indoor Unit And Outdoor Unit Connection Cable Specifications (Common In Use); Phase Terminal Block Spec - Danfoss DHP-iQ Installation Manual

Installation Guide
During the unit installation make first refrigerant connections and
N
then electrical connections. If unit is uninstalled first disconnect elec-
trical cables, then refrigerant connections.
Connect the Air to water heat pump to grounding system before per-
N
forming the electrical connection.
When installing the unit, you shouldn't use inter connection wire.
N

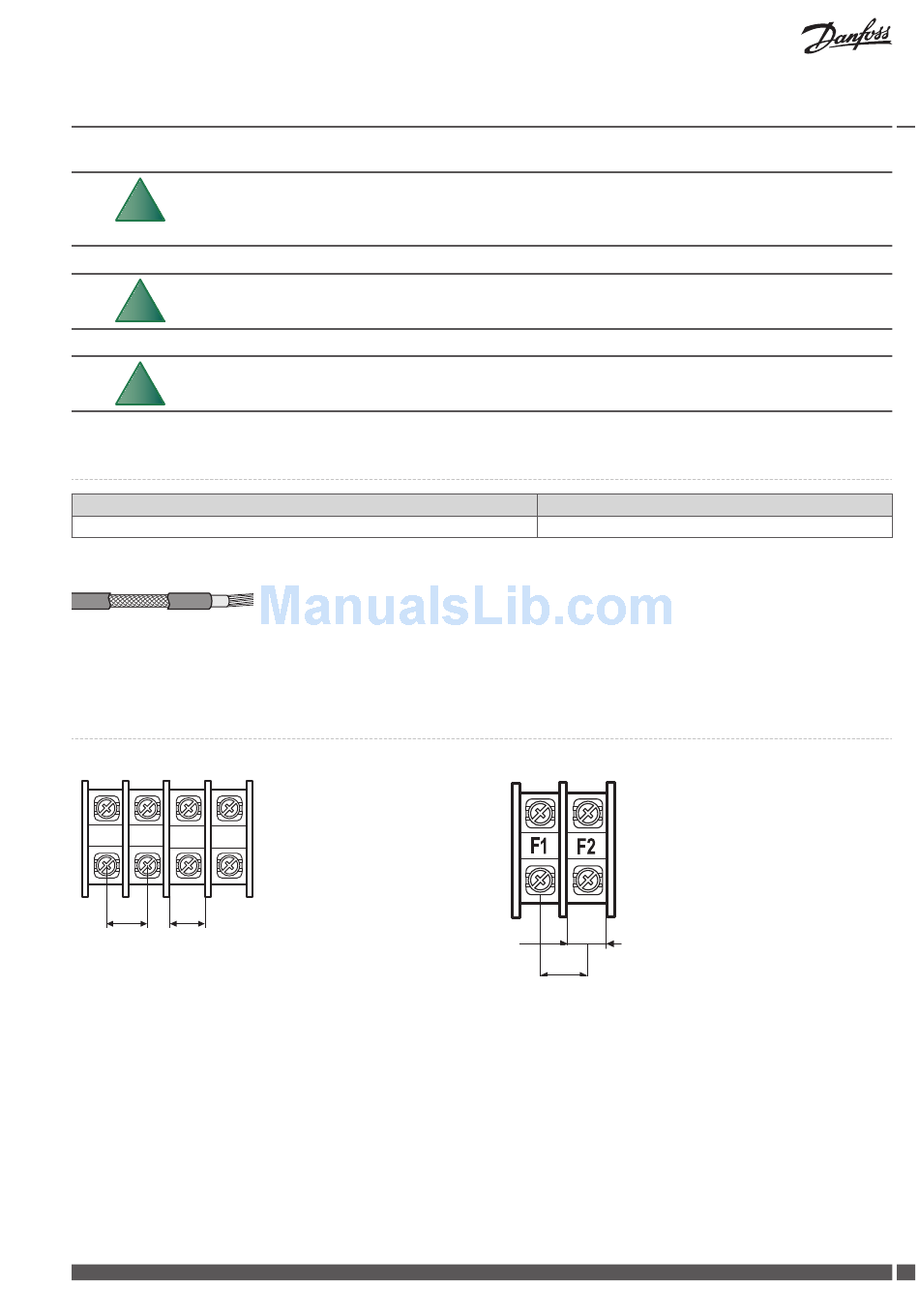

6.17.1 Between indoor unit and outdoor unit connection cable specifications (Common in use)
Communication cable
0.75mm², 2wires
▪ For the power Cable, use the grade H07RN-F or H05RN-F materials.
When installing the indoor unit in a computer room or network room, use the double shielded (Tape aluminum / polyester braid + cop-
per ) cable of FROHH2R type.
6.17.2

1 Phase terminal block spec

5 kW
1(L) 2(N)
L
N
11.4 10.1
AC power : M5 screw
Danfoss Heating Solutions
DHP-iQ
Communication : M4 screw
Home server
0.75mm², 2wires
10.1
11.4
VIJSS102
51
