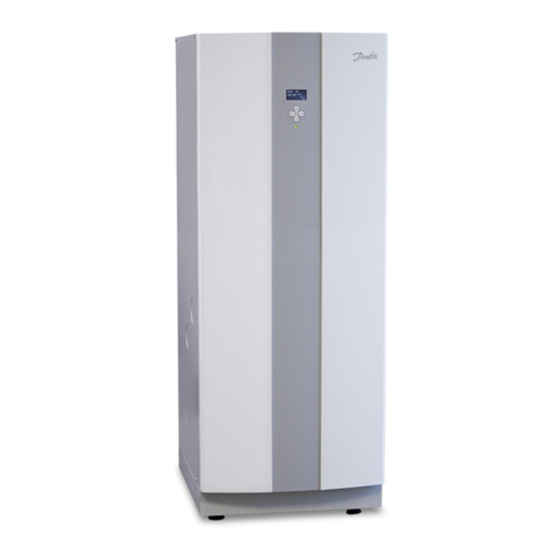

- Page 1 Installation instruc- tions DHP-S VMIFJ102...
- Page 2 If these instructions are not followed during installation and serv- ice, Danfoss A/Sliability according to the applicable warranty is not binding. Danfoss A/S retains the right to make changes to com- ponents and specifications without prior notice. © 2010 Copyright Danfoss A/S.
-
Page 3: Table Of Contents
Contents About the instructions..............3 Introduction..................3 Symbols..................... 3 Terminology..................3 Important information..............4 Refrigerant..................4 Noise and vibrations..............5 Heat pump information..............9 Dimensions and components........... 9 Pipe connections................. 10 Required service space.............. 10 Technical data................11 Drilling holes for brine pipes............13 Unpacking and installation............ -
Page 5: About The Instructions
About the instructions Introduction The installation instructions start by describing heat pump data. The installation instructions later give instructions in a logical order covering unpacking, installation procedure, and checking the installation. References to chapters and sections within the instructions are in italics, e.g.: About the instructions. References to menu options in the heat pump’s control system are in upper case, e.g.: INFORMATION ->OPERAT. -
Page 6: Important Information
Important information Caution! The heat pump must be located in a frost-free environment! Caution! The power supply must be disconnected during service and before changing parts in the appliance. Caution! The installation may only be commissioned if the heating system is filled and bled. Otherwise the circulation pump can be damaged. -
Page 7: Noise And Vibrations
Warning! Risk of personal injury! Refrigerant exposed to a naked flame creates a poisonous irritating gas. This gas can be detected by its odour even at concentrations below its permitted levels. Evacuate the area until it has been sufficiently ventilated. Warning! Risk of personal injury! Anyone with symptoms of poisoning from the vapour must immediately move or be moved into the fresh air. - Page 8 To avoid noise caused by pipe mounting, a rubber-coated pipe clamp should be used to prevent the transmission of vibrations. However, installation should not be too rigid and the pipe clamp must not be too tight. Figure 1. Do not twist the flexible hoses as they are installed. At threaded connections, use a counterhold spanner Figure 2.
- Page 9 • Ensure that all pipes are elastically suspended, with mountings as illustrated or similar. This is so that the rubber (or similar material) compresses 1 to 2 mm under vibration. It is not recommended to suspend the pipes from too many points, as the force at each mounting is then not sufficient. Figure 5.
- Page 10 Electrical current! DANGER! The terminal blocks are live and can be highly dangerous due to the risk of electric shock. The power supply must be isolated before electrical installation is started. The heat pump is internally connected at the factory. 8 –...
-
Page 11: Heat Pump Information
Heat pump information Dimensions and components 165,5 74,5 40 ±10 81,5 175,5 Figure 6. Measurements Symbol explanation Coolant out (from heat pump) Heat return (return line) Return line hot-gas exchanger Supply line hot-gas exchanger Heat supply (supply line) Coolant in (to heat pump) Lead-in for communication cable Lead-in for incoming supply and sensor Supply line sensor... -
Page 12: Pipe Connections
Pipe connections Table 2. Connection diameter Size Brine Heat De-superheater DHP-S Eco 22 DHP-S Eco 26 DHP-S Eco 33 DHP-S Eco 42 When installing in confined spaces, pipe routing on the rear of the heat pump can be facilitated by connecting the pipes before the pump is put in position. -
Page 13: Technical Data
space around the heat pump in accordance with the following dimensions: Figure 9. Service space Technical data Table 3. Technical data DHP-S Eco Refrigerant Type R410A R410A R410A R410A Amount Test pressure Design pressure Compressor Type Scroll Scroll Scroll Scroll Electrical data Main supply Volt... - Page 14 R410A Min/Max Operation Temperature R410A T brine °C T water °C Tbrine °C...
-
Page 15: Drilling Holes For Brine Pipes
Drilling holes for brine pipes Caution! Ensure that the holes for the insert pipes are positioned so that there is room for the other installations. Caution! The brine pipes shall have separate lead-ins. If the wall lead-ins are below the highest ground water level watertight lead-ins must be used. -
Page 16: Unpacking And Installation
Unpacking and installation The heat pump is packed in boxes and wrapped in cardboard and delivered on a wood pallet. Check that the delivery is complete and undamaged. Caution! When moving the heat pump, do not use the protruding pipe connections to lift the heat pump. The packaging should not be used to lift the heat pump either. - Page 17 Symbol explanation Screws Front panel Figure 12. Remove the front cover Installation instructions VMIFJ102 – 15...
-
Page 18: Piping Installation
Piping installation Caution! To prevent leaks ensure that there are no stresses in the connecting lines! Note! Ensure that the pipe installation is carried out in accordance with the dimensions and connection diagrams. Note! Pipe installation must be carried out by an authorized installer. Caution! It is important that the heating system is bled after installation. -
Page 19: System Suggestion
System suggestion Figure 13. System suggestion Symbol explanation Heat pump Adjustment valve 19 Water heater Non-return valve 31 Circulation pump (VVC) Pressure gauge 34 Circulation pump, (hot gas) Safety valve 36 Circulation pump (system) Valve pipe (cold water) 50 Outdoor sensor Dirt strainer (hp) 51 System supply line sensor Dirt strainer (hot gas) -
Page 20: Electrical Installation
Electrical Installation Electrical connection Caution! Electrical installation may only be carried out by an authorized electrician and must follow applicable local and national regulations. Caution! The electrical installation must be carried out using permanently routed cables. It must be possible to isolate the power supply using an all-pole circuit breaker with a minimum contact gap of 3 mm. -
Page 21: Connecting Sensor For Outside Temperature
Connecting sensor for outside temperature Position the outdoor sensor on the north or north west facing side of the house, away from direct sunlight. The outdoor sensor should not be placed on reflective panel walls. The sensor must be positioned at least 1 m from openings in the walls that emit hot air. - Page 22 Table 4. Outdoor sensor Table 5. other sensors °C ohm, Ω °C kilo ohm, kΩ 1884 66,3 1443 52,4 1115 41,8 33,5 27,1 22,0 18,0 14,8 12,2 10,1 7.11.1 Measurement checking sensors during fault tracing Disconnect the relevant sensor from I/O-card/terminal block. Measure the resistance for the sensor and any extension cables.
-
Page 23: Test Operation
Test operation Note! Read the safety instructions! Caution! The installation may only be commissioned if the heating system, water heater and brine system have been filled and bled. Otherwise the circulation pumps can be damaged. Caution! Any alarms that may occur in connection with the installation must be fault-traced. Caution! If the installation is only to provide heat by an auxiliary heater during the installation, ensure that the heating system is filled and bled and the compressor cannot be started. -
Page 24: Manual Test
• Control computer settings If a an external water heater is installed, also check: • Reversing valve 8.1.3 Brine system • Expansion/bleed tank on the return pipe • Safety valve for expansion vessel (6 bar) • Filler cock on the return pipe •... - Page 25 8.2.4 Test the exchange valve (if hot water is in the installation) Activate the 3-way valve by setting the value REV.V. HOT WATER to 1. Check that the arm on the 3-way valve changes position. If the arm does not change position, perform fault tracing. 8.2.5 Test the compressor Start the circulation pump by setting the value CIRC.PUMP to 1.
- Page 26 Symbol explanation Note! Hot! Figure 16. pressure pipe should get hot during opera- tion Check that: • the compressor is running in the right direction by putting a hand on the pressure pipe before the com- pressor starts, the pipe is then cold. Feel again after a short while to ensure the pressure pipe becomes properly hot.
-
Page 27: Start Up
Start up Adaptation to the heating system Adjust the heat pump settings to the applicable heating system, for instance an underfloor heating or radiator system. The delta temperature must be at least 8°C above the heat pump. The delta temperature should be 3–5°C for the brine system. -
Page 28: Installing The
Installing the front cover Symbol explanation Screws Front panel Figure 17. Assembling the front cover Caution! Take care not to damage the front cover or display cables! Install the front cover as follows: Align the upper section of the front cover (2) in both the side channels on the unit and slide it carefully downwards until it covers the entire front side. -
Page 29: Menu Information
Menu information Menu description regards software with version 1.3. The heat pump has an integrated control system which automatically calculates the heat demand in the house to ensure that the correct amount of heat is produced and emitted where necessary. There are many different values (parameters), which are required in order to do the calculation of the heat demand. -
Page 30: Service Menu
The SERVICE menu is used during installation and services with many settings, see Installation instructions. Figure 19. The menus are reached by pressing different buttons. Position Description Information menu Press the left or right buttons. Service menu Press and hold the left button for at least five seconds The INFORMATION menu is opened by pressing the left or right buttons. - Page 31 Menu Sub menu Sub menu Sub menu INTEGRAL A1 HYSTERESIS MAX RETURN START INTERVAL ALARM BRINE PRESS. PIPE OUTDOOR STOP SHUNT TIME SHUNT COOLING AUX. HEATER MAX STEP INTEGRAL A2 HYSTERESIS MAX CURRENT HOT WATER STOP DELAY AFTER EVU EXT.AUX.HEATER EXT.AUX.HEATER INTEGRAL A3 TURN OFF DELAY...
- Page 32 Menu Sub menu Sub menu Sub menu Sub menu PASSIVE COOLING ACT COOLING POOL (Expansion card) SHUNT GROUP BUFFER TANK BUFFER TANK NO. OF CIRCUITS SYSTEM SHUNT 2ND H.C SHUNT ADDITION 0-10V Ø EXT. AUX. HEATER CURRENT LIMITER SERVICE TIME FACTORY SET CANCEL RADIATOR...
- Page 33 11.1.1 Sub menu HOT WATER Table 8. Used to change the settings for hot water production. Menu selection Meaning Factory setting START Start temperature for hot water production. Shows the actual weigh- ted hot water temperature and the value within brackets indicates (range: , 30°C / 55°C) the start temperature.
- Page 34 11.1.3 Sub menu AUX. HEATER Table 10. Used to change the heat pump stages’ operating settings. Menu selection Meaning Factory setting MAX STEP Maximum number of permitted steps for auxiliary heating. = no auxiliary heating permitted (Means that only AUTO, HEAT PUMP or [SYMBOL] can be selected and that no anti- (range: legionella operation is possible.)
- Page 35 Menu selection Meaning Factory setting REV.V. HOT WATER Indicates INT / EXT whether the exchange valve for hot water is loca- ted before or after the external auxil- iary heater. (Determines whether the external auxil- iary heater may produce hot water.) TOPH.
- Page 36 Menu selection Meaning Factory setting AUX. HEAT 3 0 = stop aux. heater step 3 1 = start aux. heater step 3 EXT.AUX.HEATER 0 = stop external auxiliary heater 1 = start external auxiliary heater EXT.CIRC. PUMP 0 = stop circulation pump 1 = start circulation pump SHUNT DEFR - = opens flow from defrosting tank...
- Page 37 11.1.5 Sub menu INSTALLATION Table 12. Used for settings that are set during installation. Menu selec- Meaning Factory setting tion SYSTEM Sub menu SERVICE -> INSTALLATION -> SYSTEM: Note! The menu selection in the SYSTEM menu varies depending on the selected values. Tip: start in the top menu and work downwards.
-
Page 38: Important Parameters
Menu selec- Meaning Factory setting tion SENSOR CALI- Following sensors can be found in the installation: 0 (range: -5°C / 5°C) BRATION OUTDOOR 0 (range: -5°C / 5°C) SUPPLY LINE 0 (range: -5°C / 5°C) RETURN LINE 0 (range: -5°C / 5°C) HOT WATER 0 (range: -5°C / 5°C) REFR 1... - Page 39 11.2.2 CURVE The control computer shows the value for CURVE by means of a graph in the display. The heat curve can be changed by adjusting the CURVE value. The CURVE value indicates the supply temperature of the water that is wanted to the heating system at an outdoor temperature of 0°C.
- Page 40 11.2.3 ROOM If you wish to increase or reduce the indoor temperature, change the ROOM value. The difference between changing the ROOM value and the CURVE value is as follows: • When changing the ROOM value, the angle of the curve on the system's heat curve does not change, instead the entire heat curve is moved by 3°C for every degree change of the ROOM value.
- Page 41 11.2.6 TEMPERATURES The heat pump can display a graph showing the history of the various sensors’ temperatures and you can see how they have changed over 60 measurement points in time. The time interval between the measurement points can be adjusted between one minute and one hour, factory setting is one minute.
- Page 42 Symbol explanation Compressor start (A1) Auxiliary heater start A2 Aux. heater stop (latest by A1) Compressor stop (=0) INTEGRAL A3 External auxiliary heater The calculation of the integral value stops during heat stop. The calculation of the integral value stops when heat stop has stopped.
-
Page 43: References
References Piping installation Date ............Company ............Name ............Tel. No............Electrical Installation Date ............Company ............Name ............Tel. No............System adjustment Date ............Company ............Name ............Tel. No............Installation instructions VMIFJ102 – 41... - Page 44 Internet: www.heating.danfoss.com Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed. All trademarks in this material are property of the respective...
