Installation Guide
4.3.5

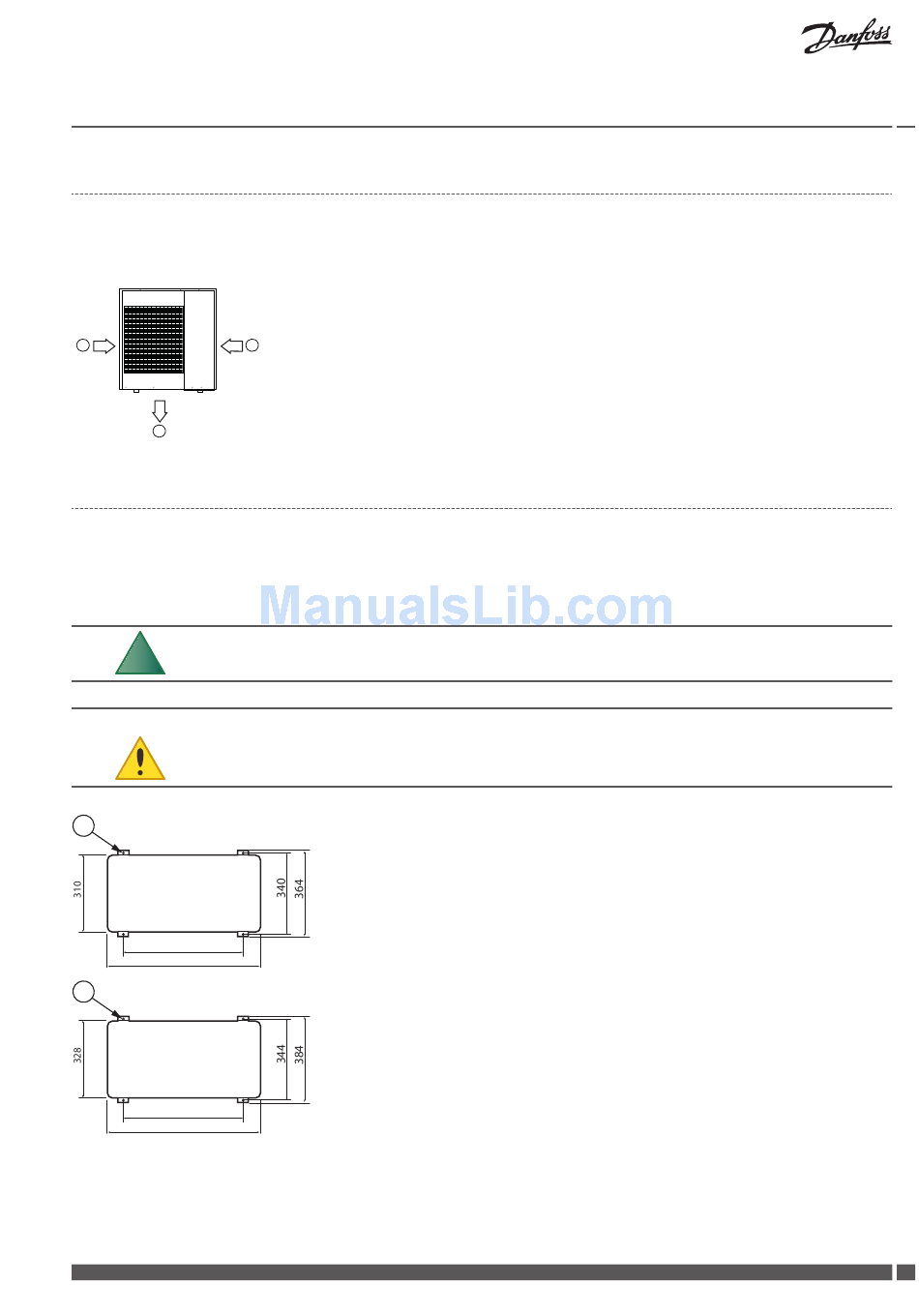

Select a location in windy areas
To prevent exposure to wind, install the unit with its suction side facing the wall. The outdoor unit should be installed with consideration
of the direction of strong winds. These can make the unit turn over, so the side of the unit should be set to face the wind, not the front of
the unit.
1
2
4.4
Outdoor unit installation
The outdoor unit must be installed on a rigid and stable base to avoid any increase in the noise level and vibration, particularly if the
outdoor unit is to be installed in a location exposed to strong winds or at a height, the unit must be fixed to an appropriate support(wall
or ground).
▪ Fix the outdoor unit with anchor bolts.
The anchor bolt must be 20 mm or higher from the base surface.
N
When tightening the anchor bolt, tighten the rubber washer to pre-
Caution
vent the outdoor unit bolt connection part from corroding. Make a
drain outlet around the base for outdoor unit drainage.
1
5kW
660
880
1
9-16kW
620
940
1. Anchor bolt hole
Danfoss Heating Solutions
DHP-iQ
1
1. Strong wind
2. Blown air
VIJSS102
27
