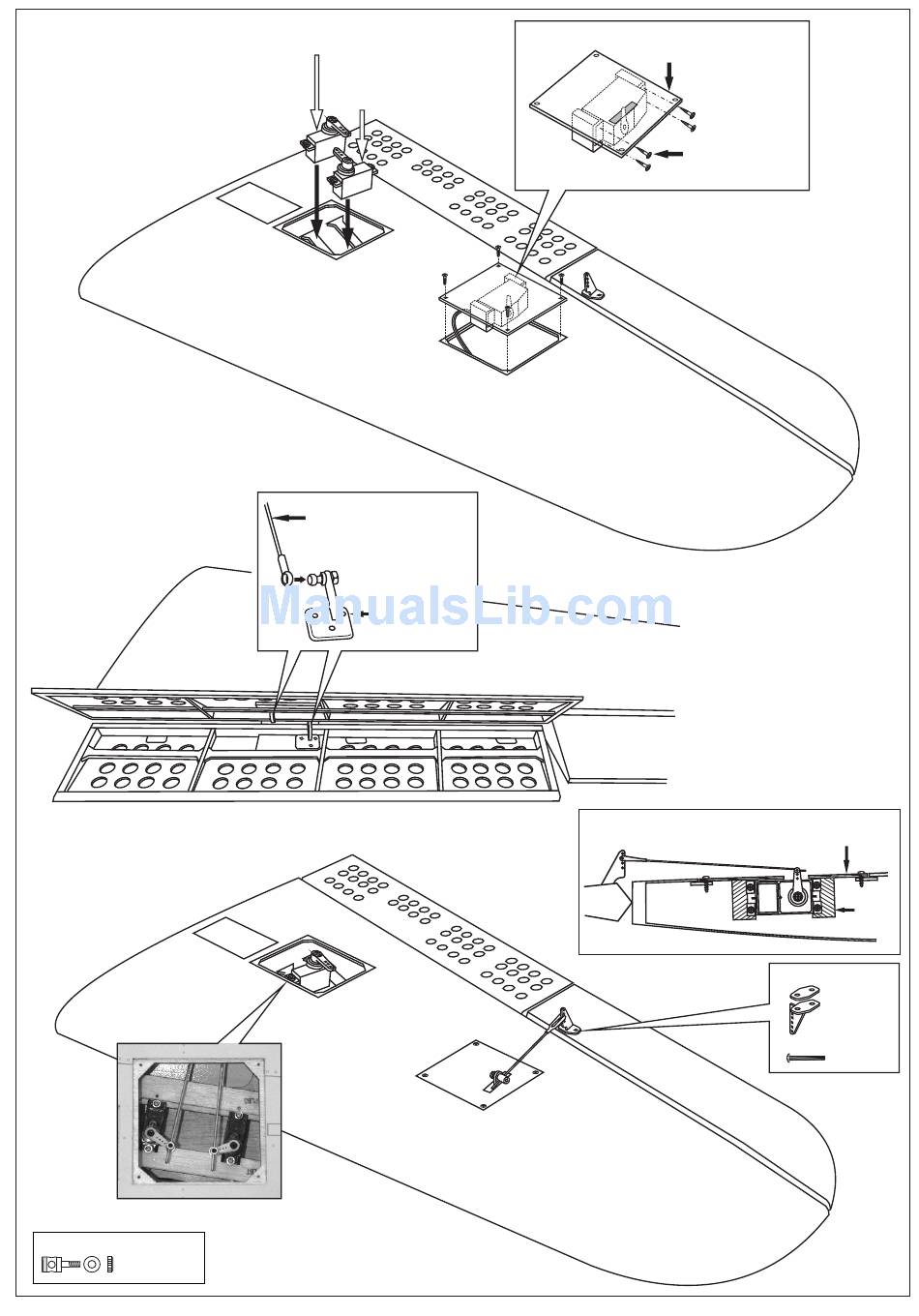

5- Servo
Connector
............3
Brake servo
Flap servo
Flap and brake push rod
(one end to servo)
Flap and brake
control horn
Aileron servo
hatch (ply 3mm)
Included with the
radio set
WING BOTTOM
AIL.
Aileron servo
Hatch
Servo
mount
Control horn
................2
2x30mm
..........4
