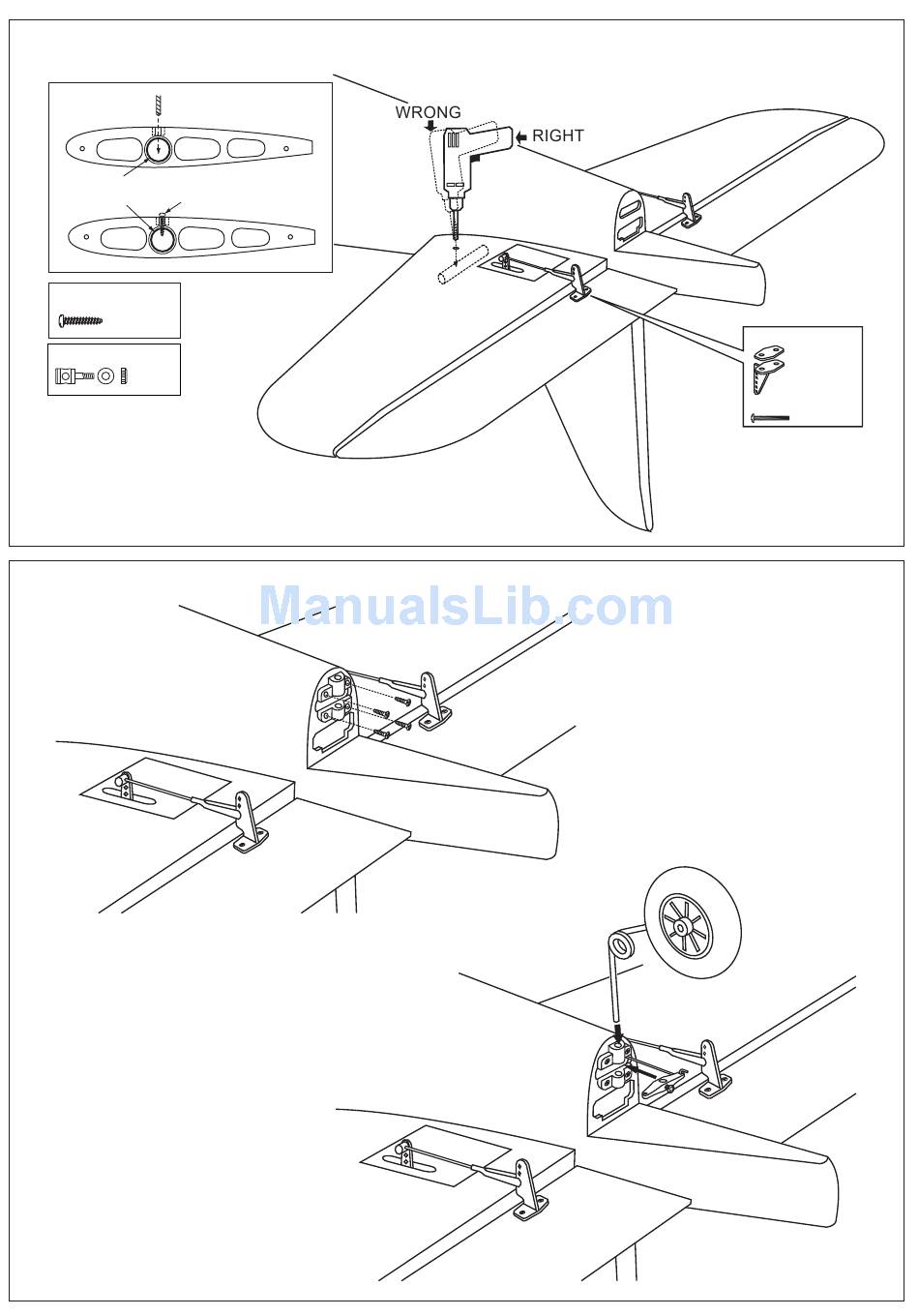

14- Horizontal stabilizer

2.mm drill bit

BOTTOM

Aluminum

3x10mm screw

tube inside

3x10mm screw

.........2

Connector

.....2

15- Tail wheel

Secure the horizontal stabilizer

in place using 3x10mm screw.

Note: Slide one end of the

tail wheel push-rod into the

tail wheel arm first.

Note: The holes on the surface of the bottom of the

horizontal stabilizer are pre-drilled at factory.

Control horn

................2

2x20mm

..........4
