PY500AC SLIDING GATE OPERATOR

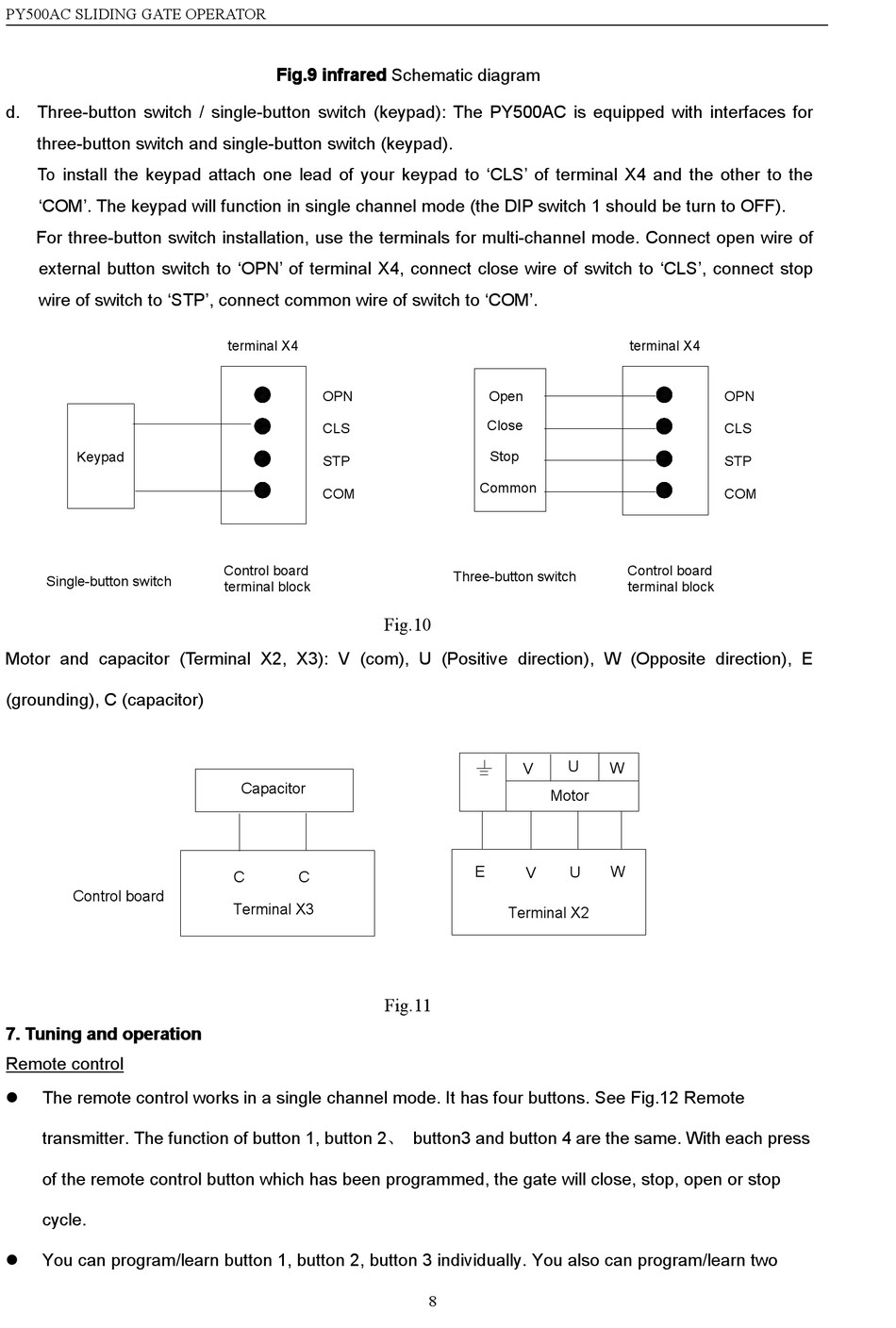

d. Three-button switch / single-button switch (keypad): The PY500AC is equipped with interfaces for
three-button switch and single-button switch (keypad).
To install the keypad attach one lead of your keypad to 'CLS' of terminal X4 and the other to the
'COM'. The keypad will function in single channel mode (the DIP switch 1 should be turn to OFF).
For three-button switch installation, use the terminals for multi-channel mode. Connect open wire of
external button switch to 'OPN' of terminal X4, connect close wire of switch to 'CLS', connect stop
wire of switch to 'STP', connect common wire of switch to 'COM'.
Keypad
Single-button switch
Motor and capacitor (Terminal X2, X3): V (com), U (Positive direction), W (Opposite direction), E
(grounding), C (capacitor)
Control board
7. 7. 7. 7. Tuning Tuning Tuning and Tuning and and operation and operation operation operation
Remote control
�
The remote control works in a single channel mode. It has four buttons. See Fig.12 Remote
transmitter. The function of button 1, button 2、 button3 and button 4 are the same. With each press
of the remote control button which has been programmed, the gate will close, stop, open or stop
cycle.
� You can program/learn button 1, button 2, button 3 individually. You also can program/learn two
Fig.9 infrared
Fig.9 Fig.9 infrared Fig.9 infrared infrared Schematic diagram
terminal X4
OPN
CLS
STP
COM
Control board
terminal block
Fig.10
Capacitor
C C
Terminal X3
Fig.11
Open
Close
Stop
Common
Three-button switch
U
V
Motor
E
V U
Terminal X2
8
terminal X4
OPN
CLS
STP
COM
Control board
terminal block
W
W
